Asus RS100-E5-PI2 User Manual
Page 32
Chapter 2: Hardware setup
2-14

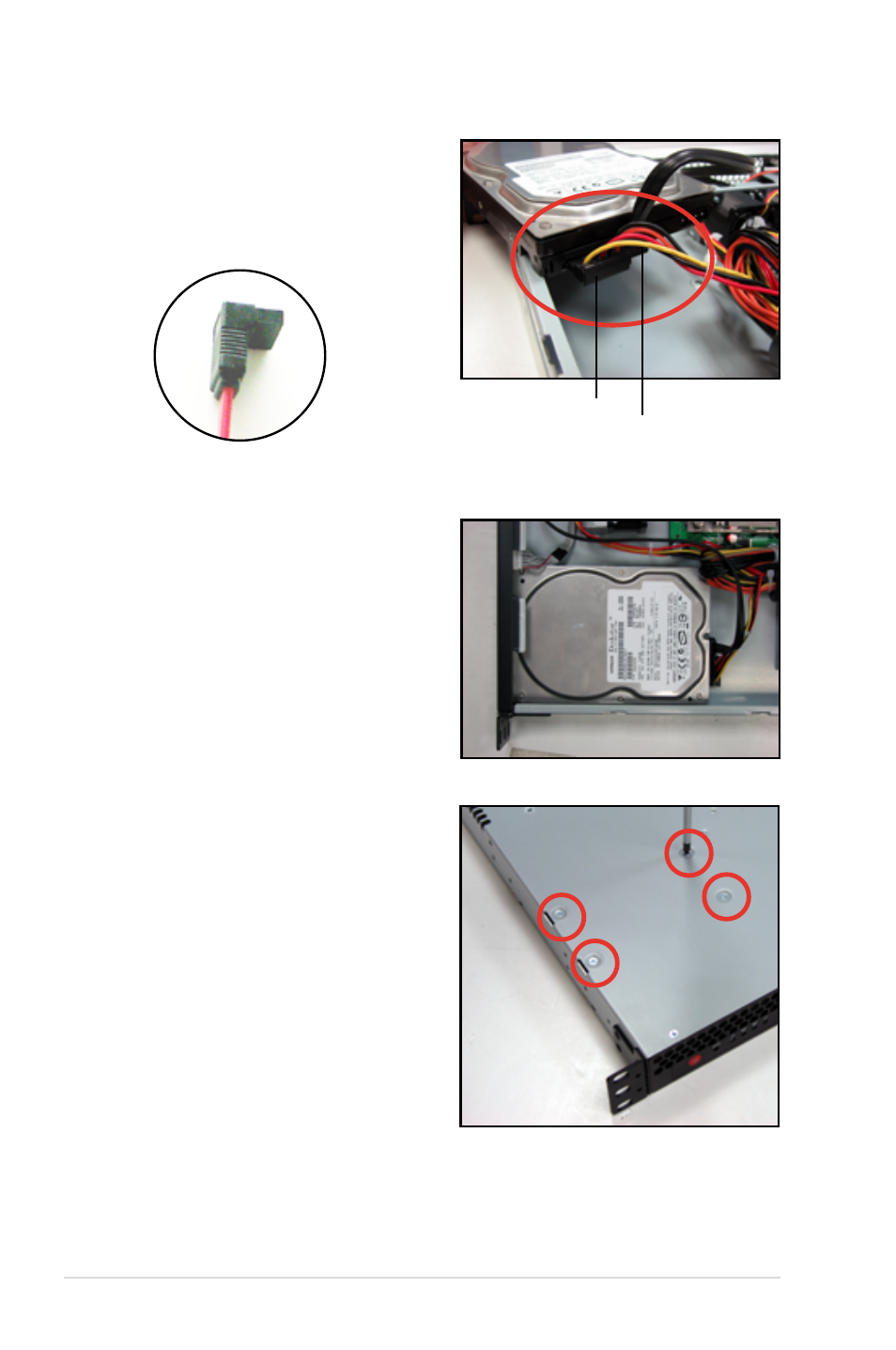

2. Connect the Serial ATA signal cable
and ATX power connectors. Use
the L-type Serial ATA connector to
connect to the hard drive.
SATA L-type
connector
3. Place the Serial ATA drive into the
drive bay matching the four screw
holes with the holes on the disk
drive.
ATX power connector
SATA signal cable
4. Secure the hard drive with four
screws.
