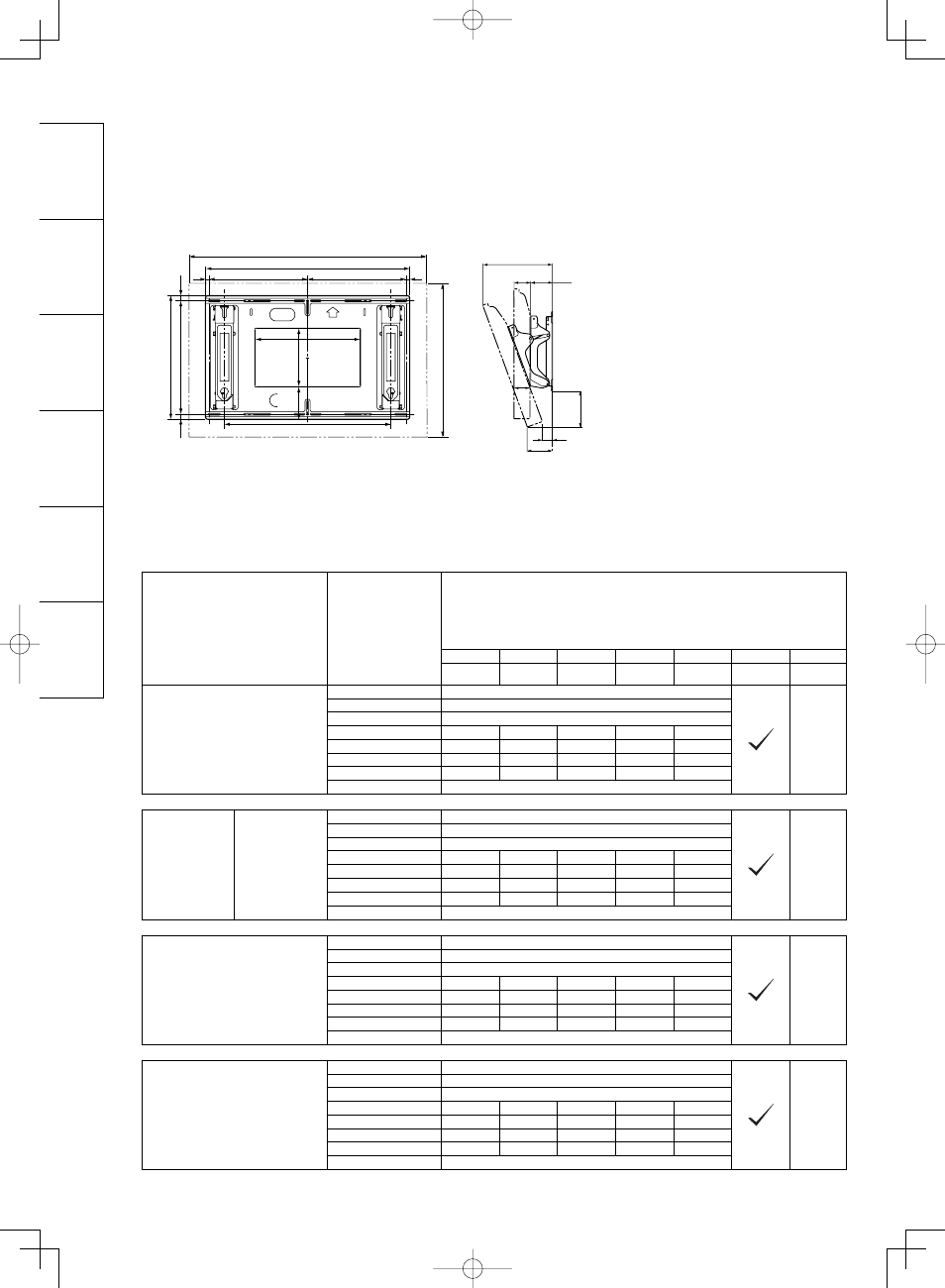

Wall-hanging bracket (Adjustable angle type) External dimensions drawing
Wandhalterung (Typ mit einstellbarem Winkel) Abbildung mit externen Abmessungen
Muurbevestigingssteun (met verstelbare montagehoek) Tekening met buitenafmetingen
Staffa di montaggio alla parete (con angolazione regolabile) Schema delle dimensioni esterne
Applique de fixation au mur (type à angle réglable)
Plan des dimensions extérieures
Soporte para montaje en pared (Tipo de ángulo ajustable) Dibujo de dimensiones externas
416 (16.4)
810 (31.9)
230 (9.1) 490 (19.3) 450 (17.7)
20 (0.8)
20 (0.8)
390 (15.4) 390 (15.4)
660 (26.0)
15
(0.6)
15
(0.6)
130 (5.1)
A
B
C
D
E
F
G
H
129
(5.1)
(Unit : mm (inches))
(Einheit: mm)
(Eenheid: mm)
(Unità: mm)
(Unité : mm)
(Unidad: mm)
■ External dimensions table
Tabelle mit externen Abmessungen
Tabel met buitenafmetingen
Tabella delle dimensioni esterne
Tableau des dimensions extérieures
Tabla de dimensiones externas
Applicable models
Zutreffende Modelle
Modellen waarop van toepassing
Modelli applicabili
Modèles concernès
Modelos aplicables
Dimensions
Abmessungen
Afmetingen
Dimensioni
Dimensions
Dimensiones
Attachment angle
Anbringungswinkel
Montagehoek
Angolo di collegamento
Angle de montage
Ángulo de ajuste
0° 5° 10° 15° 20° ㇞ ㇟
mm
(inches)
mm
(inches)
mm
(inches)
mm
(inches)
mm
(inches)
M8x60 M8x32
TH-50PZ80B
TH-50PZ81B
TH-50PY80EY
TH-50PZ80E
TH-50PZ81E
TH-50PY80P
TH-R50PY80
A 1244 (49.0)
㒿
B 791 (31.1)
C 97 (3.8)
D 180 (7.1) 195 (7.7) 209 (8.2) 220 (8.7) 229 (9.0)
E 226 (8.9) 272 (10.7) 317 (12.5) 360 (14.2) 401 (15.8)
F 230 (9.1) 211 (8.3) 190 (7.5) 168 (6.6) 144 (5.7)
G 130 (5.1) 109 (4.3) 88 (3.5) 67 (2.6) 45 (1.8)
H 100 (3.9)
TH-50PX80U
TH-50PX80X
TH-50PX80A
TH-50PV80AZ
TH-50PV80C
TH-50PV80H
TH-50PV80MT
TH-50PV80M
TH-50PV80MR
TH-50PV80MS
TH-50PV80D
TH-50PV80L
TH-50PV80LB
TH-50PV80LR
TH-50PV80HM
A 1210 (47.6)
㒿
B 791 (31.1)
C 97 (3.8)
D 180 (7.1) 195 (7.7) 207 (8.1) 217 (8.5) 226 (8.9)
E 226 (8.9) 273 (10.7) 319 (12.6) 363 (14.3) 404 (15.9)
F 226 (8.9) 210 (8.3) 192 (7.6) 173 (6.8) 154 (6.1)
G 130 (5.1) 109 (4.3) 88 (3.5) 67 (2.6) 45 (1.8)
H 97 (3.8)
TH-50PX8B/E
TH-50PV8P
TH-R50PV8
TH-R50PV8KH
TH-C50FD18
TH-50PX80T
TH-R50EL8K
A 1210 (47.6)
㒿
B 791 (31.1)
C 94 (3.7)
D 180 (7.1) 195 (7.7) 207 (8.1) 217 (8.5) 226 (8.9)
E 223 (8.8) 271 (10.7) 317 (12.5) 361 (14.2) 402 (15.8)
F 224 (8.8) 207 (8.1) 188 (7.4) 169 (6.7) 148 (5.8)
G 130 (5.1) 109 (4.3) 88 (3.5) 67 (2.6) 45 (1.8)
H 94 (3.7)
TH-C50HD18
TH-M50HD18
A 1210 (47.6)
㒿
B 791 (31.3)
C 94 (3.7)
D 180 (7.1) 195 (7.7) 208 (8.2) 220 (8.7) 229 (9.0)
E 223 (8.8) 271 (10.7) 317 (12.5) 361 (14.2) 402 (15.8)
F 212 (8.3) 191 (7.5) 208 (8.2) 220 (8.7) 229 (9.0)
G 130 (5.1) 109 (4.3) 89 (3.5) 67 (2.6) 45 (1.8)
H 94 (3.7)
