SECTION VII
PROCEDURE FOR FUNCTIONAL CHECK OF
REPLACEMENT COMPONENTS
1. Microprocessor (computer) Board
a. Upon completing installation of the replacement microprocessor (computer) board,
reestablish power to the dryer.
b. Start the drying cycle by pressing any of the preset cycles in letters A-F.

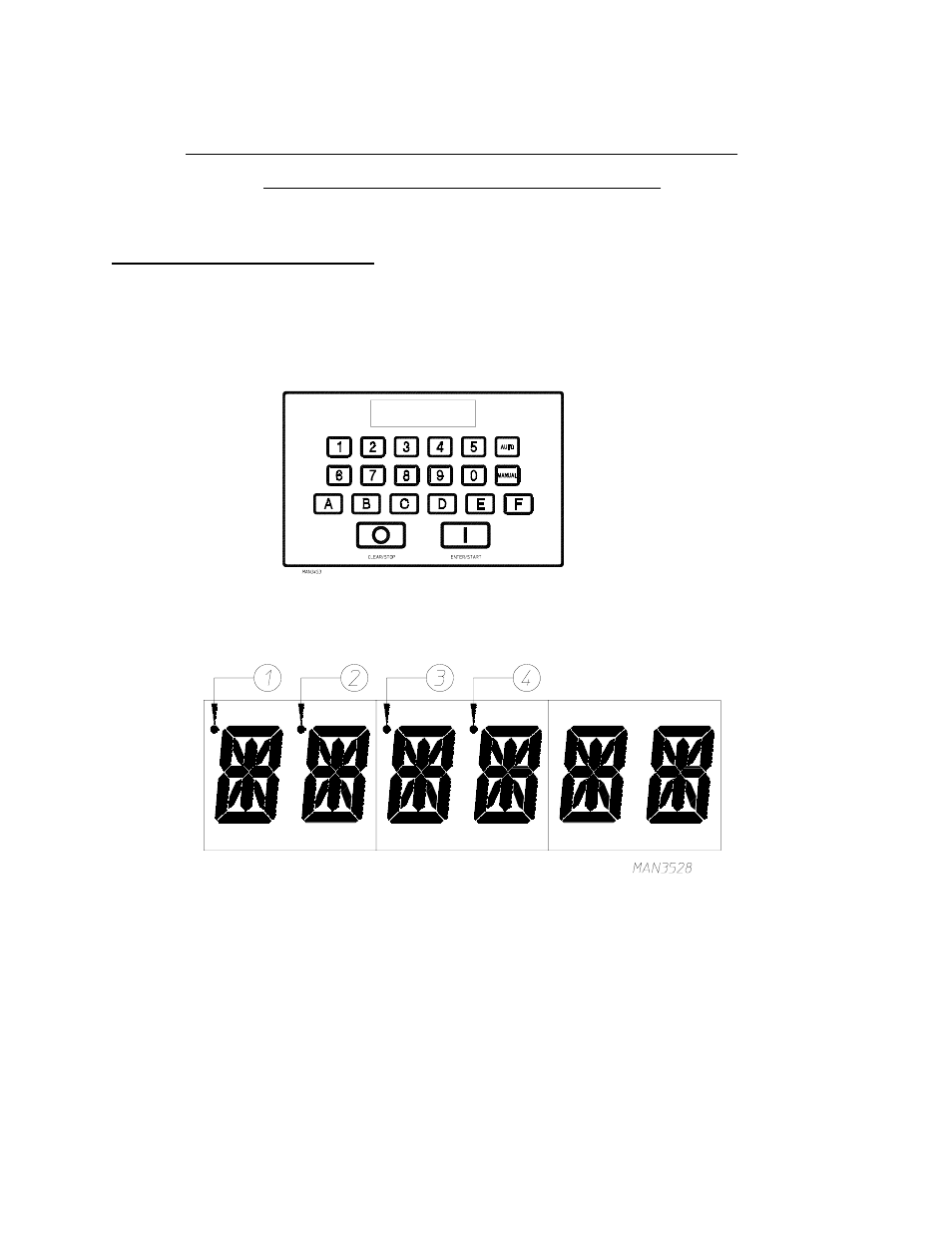

c. Verify that the motor(s) and the heat indicator dots, in the microprocessor (computer) L.E.D.
display are on. (Refer to the illustration below.)
1.Basket (tumbler) in Forward Mode (clockwise)
2.Basket (tumbler) in Reverse Mode (counterclockwise) indicator (for Reversing Models Only)
3.Heat on indicator
4.On indicator (dryer is in Operation Mode)
