Agri-Fab 25-0126 - Manual (Page 15)

# PART # DESCRIPTION QTY
1 65238 Hitch Assembly 1
4 65239 Axle Assembly 1
5 46503 Wheel 2
6 49659 Hex, Bolt M10 x 25 4
7 49664 Hex, Bolt M8 x 25 4
8 49667 Nut, Nylock M8 4
9 R19171616 Washer, Axle 2
10 43003 Washer, Lock 3/8" 4
12 47810M Nut, Nylock M10 2
14 43070 Washer, Flat 3/8" 2
15 43343 Hairpin Cotter 1
16 23353 Hitch Pin 1
17 43010 Cotter Pin 2
18 49644 Spring 2
# PART # DESCRIPTION QTY
19 49657 Operating Lever 2
20 49658 Grip 2
21 49642 Ram Assembly 1
22 49645 U-Clamp 1
23 49643 Jack Top Plate 1
24 44101 Cotter Pin, 3/32 x 3/4" 1
25 49647 Spacer 1
26 49648 Clevis Pin 1
27 49660 Hex, Nut M10 2
28 49641 Frame 1
29 47397 Handle Clamp 2
30 49650 Bolt, Hex M5 x 10 1
31 49651 Nut, Hex M5 1
32 49734 Bushing, Wheel 2

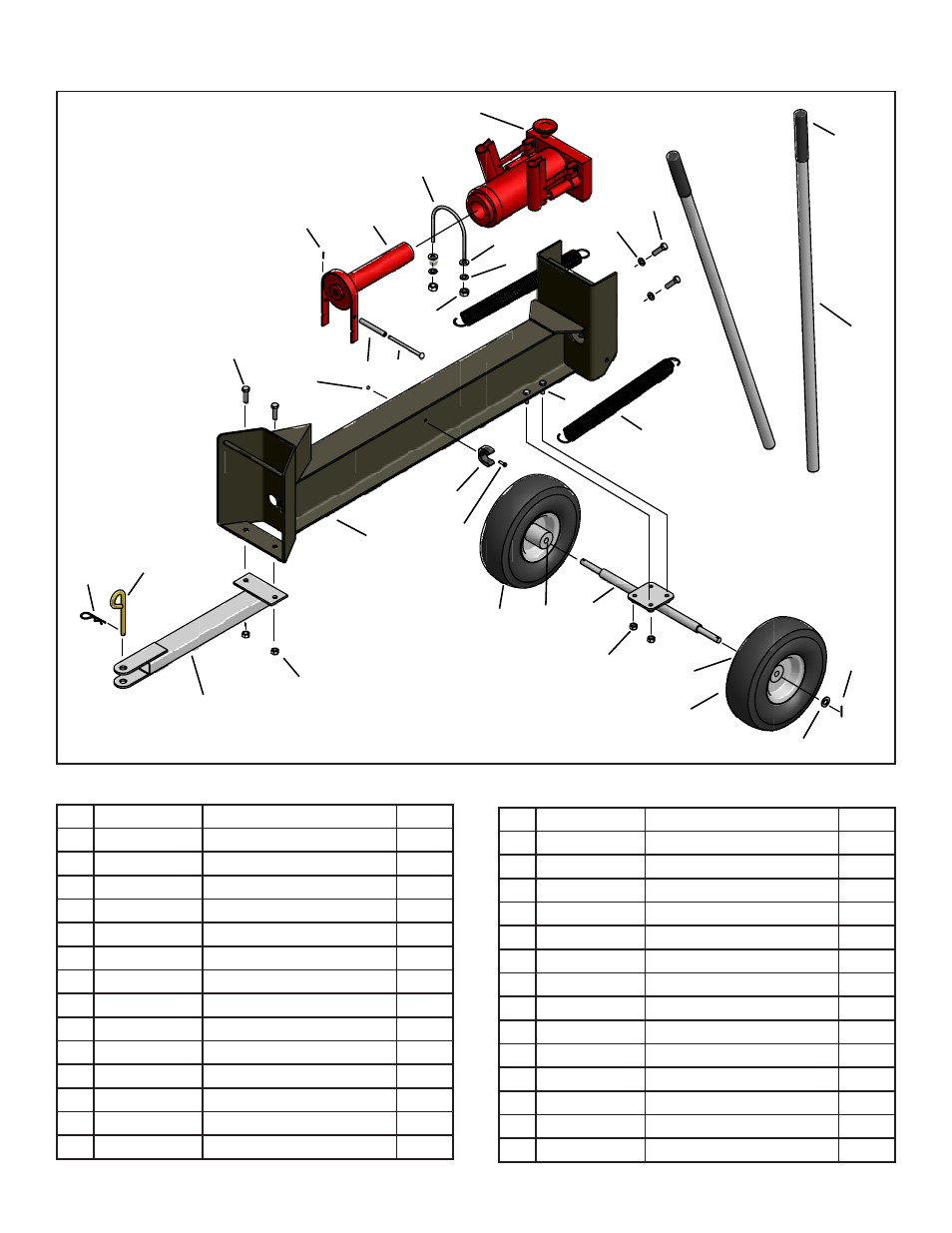

REPAIR PARTS FOR HYDRAULIC LOG SPLITTER - MODEL 25-0126
6
6
16
15
1
28
29
30
12
5
4
5
9
17
18
19
20
21
22
23
14
10
10
24
25
31
26
27
7
32
32
8
15
