Hooking up the system securely

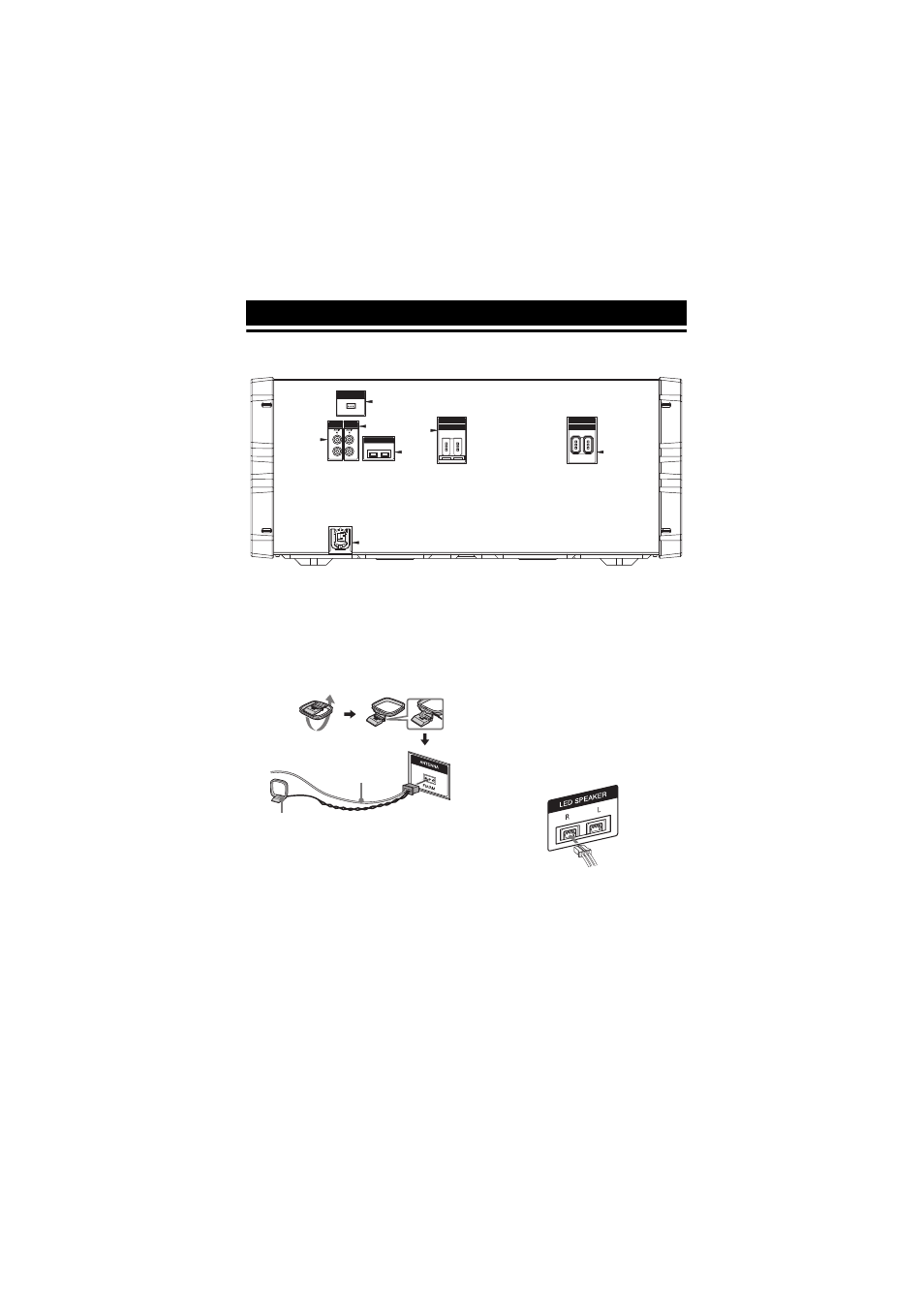

A Antennas
Find a location and an orientation that
provide good reception, and then set up
the antennas.
Keep the antennas away from the speaker
cords, the power cord and the USB cable
to avoid picking up noise.
B GAME L/R jacks
Use an audio cord (not supplied) to
connect to the audio output jacks of a
gaming device (such as PlayStation 3).
The audio is output through this system.
C DVD/SAT L/R jacks
Use an audio cord (not supplied) to
connect to the audio output jacks of an
audio/video equipment. The audio is
output through this system.
D LED SPEAKER terminals
Connect the LED SPEAKER connector of
the speaker to this terminal.
The lighting on the speakers will react
according to the music source. You can
select the lighting pattern according to
your preference (page 22).
