Quick Reference
HDR-HC1 2-631-458-11(1)

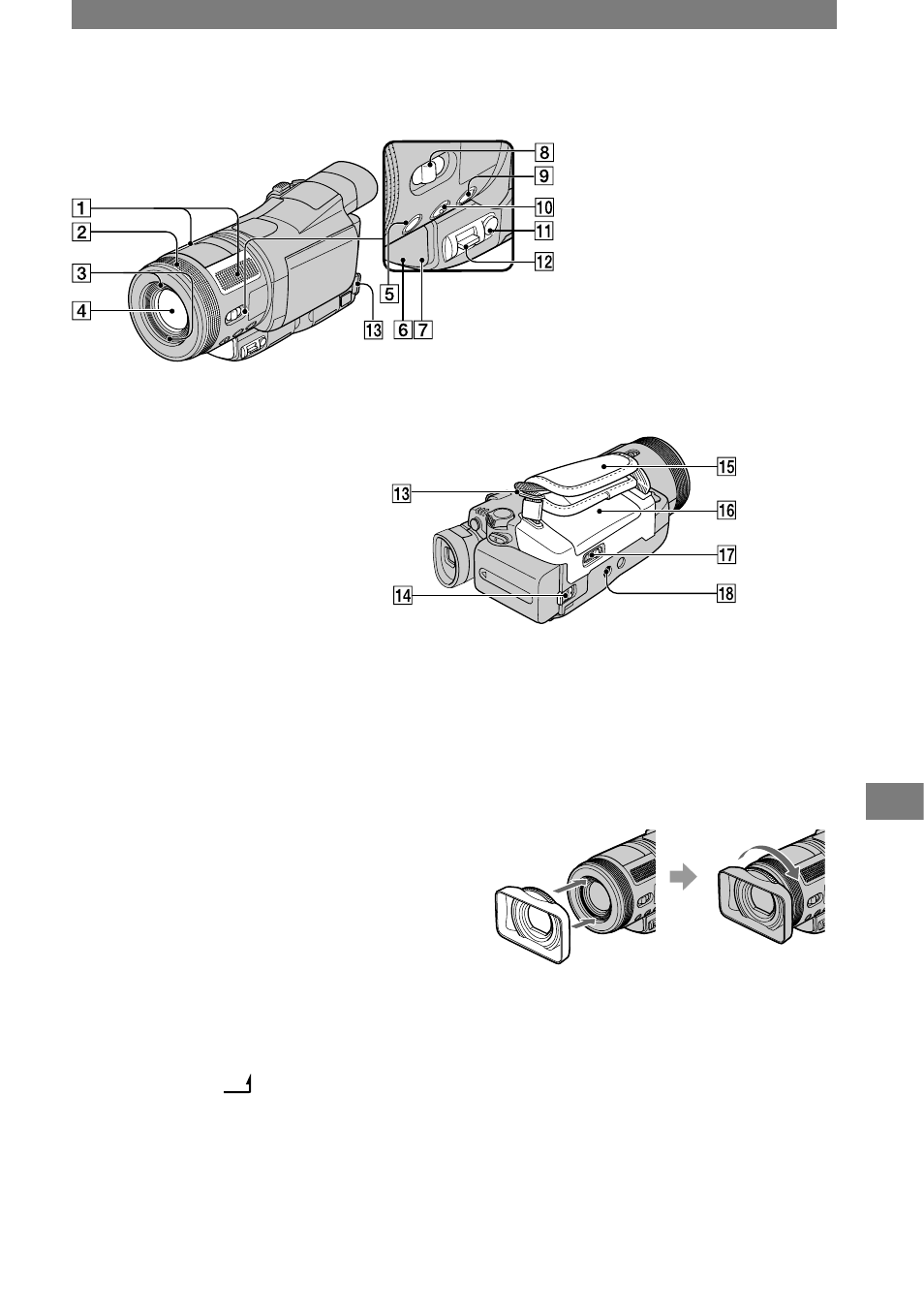

 Microphone (29)

Zoom ring/focus ring (26, 27)
 Holes for the lens hood
 Lens (Carl Zeiss Lens) (5)

TELE MACRO button (27)

Camera recording lamp (29)
 Remote sensor (29)
 FOCUS/ZOOM switch (26, 27)

BACK LIGHT button (27)
 EXPANDED FOCUS button (27)

EXPOSURE button (26)
 EXPOSURE/VOL lever (26)

Hooks for the shoulder strap (114)
 BATT (battery release) lever (14)

Grip belt (16)
 Cassette compartment lid (21)
 OPEN/EJECT lever (21)
 Tripod receptacle (28)
Attaching the lens hood
Insert the hooks on the lens hood into the
holes on the camcorder, then turn the lens
hood fixing screw in the direction of the
arrow.
To remove the lens hood
Loosen the lens hood fixing screw by
turning it in the opposite direction of the
arrow in the illustration above.
• You cannot attach a filter (optional) with the
lens hood on.
