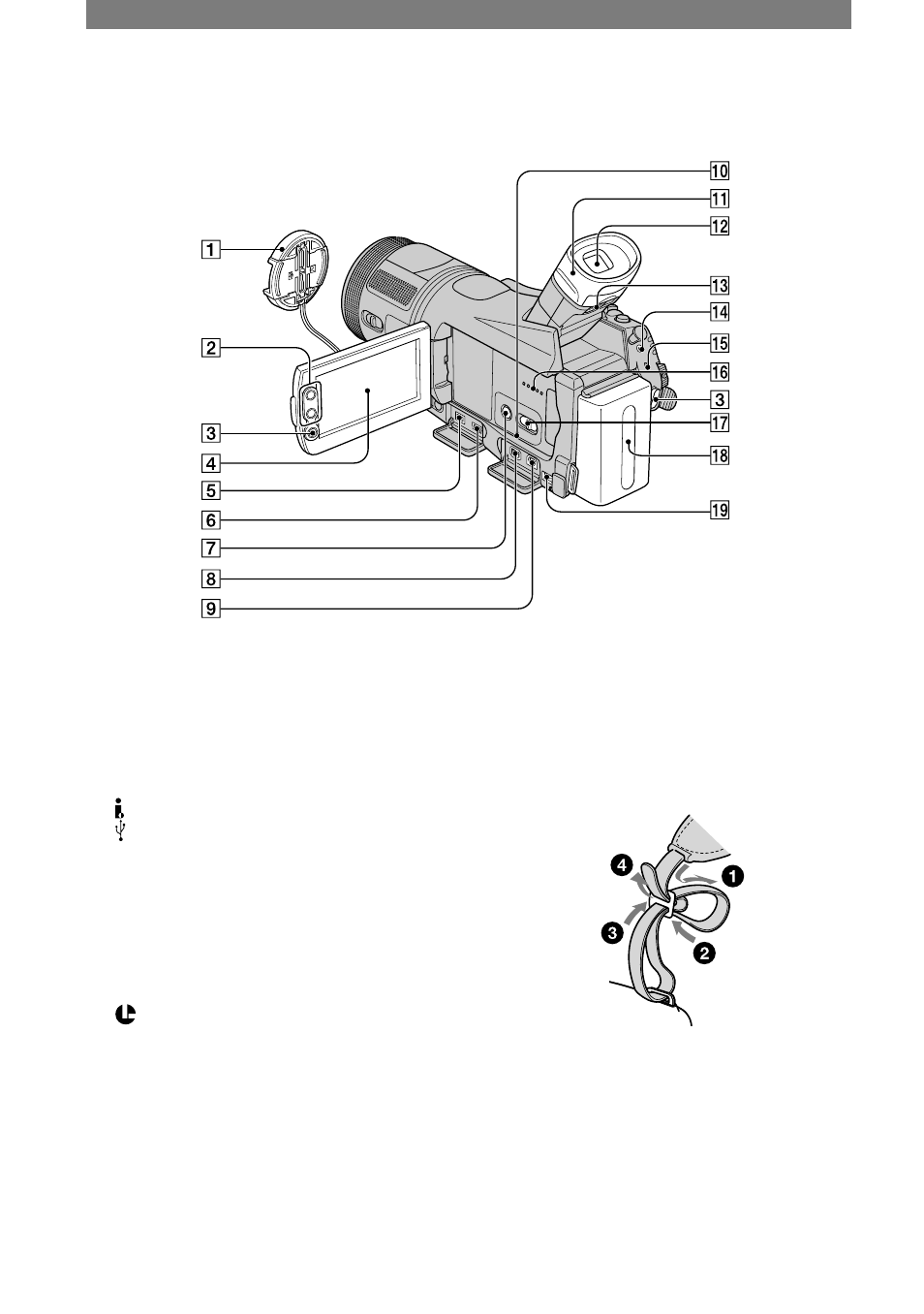

 Lens cap (16, 24)
 Zoom buttons (26)

REC START/STOP button (24)

LCD screen/touch panel (4, 19)

HDV/DV Interface (i.LINK) jack (72)

(USB) jack (72)

DISPLAY/BATT INFO button (29)

COMPONENT OUT jack (72)

A/V OUT jack (72)

RESET button (29)
 Eyecup

Viewfinder (18)
 Viewfinder lens adjustment lever (18)

LANC jack (72)

CHG (charge) lamp (13)
 Speaker (29)

AUTO LOCK switch (27)

Battery pack (13)

DC IN jack (72)
Attaching the shoulder strap
Attach the shoulder strap supplied with
your camcorder to the hooks for the
shoulder strap.
