Attaching/removing the hood with a lens cap
To attach the hood with a lens cap, fit the line on the hood to the corresponding line on
the lens frame, then screw the hood clockwise and tighten the hood fixing screw.
To remove the hood with a lens cap, loosen the lower hood fixing screw, and unscrew
the hood with a lens cap counterclockwise.
When using additional filters
We recommend that you use Sony made filters.
[a] [b]
Attaching/removing the eyecup

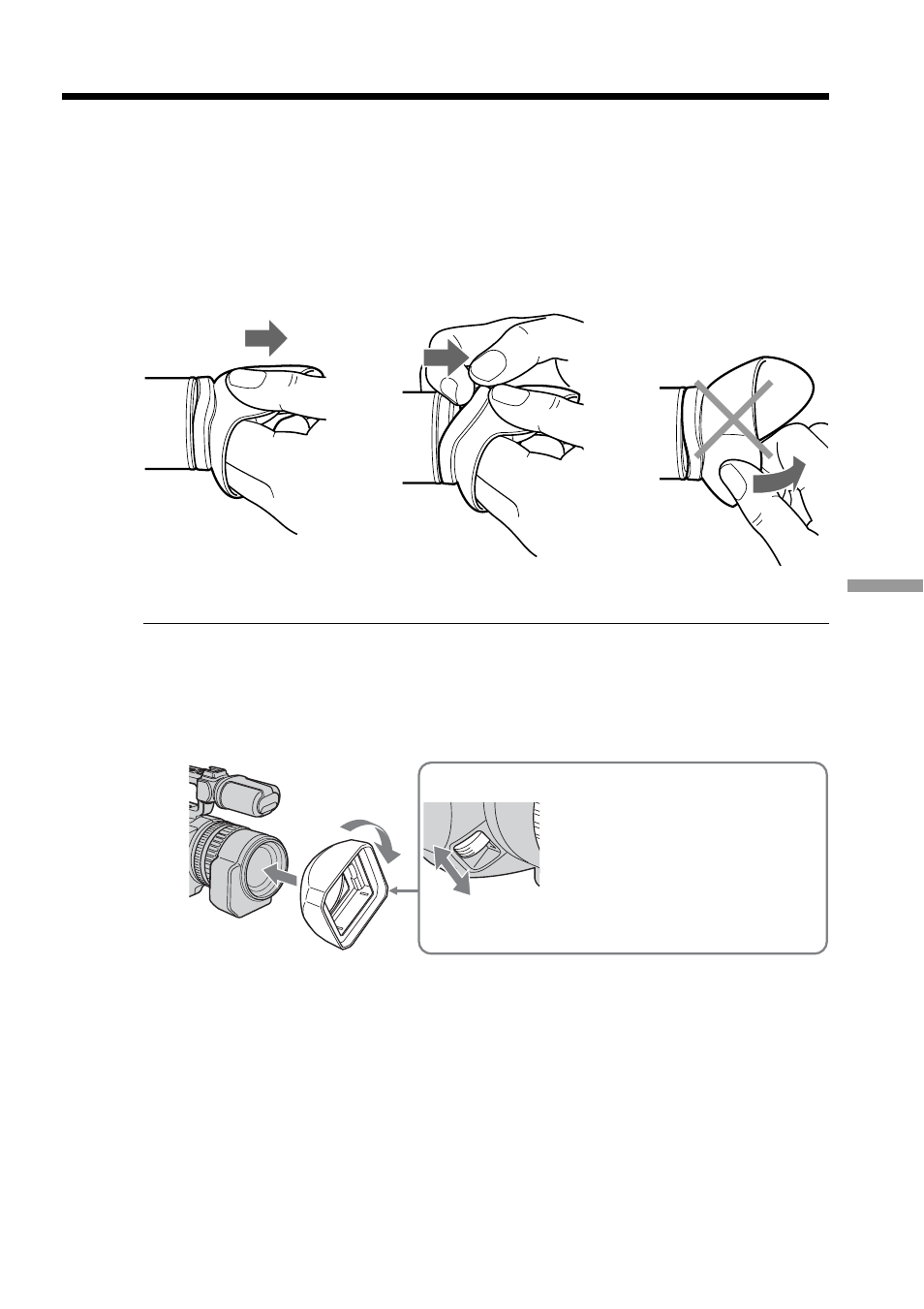

•When removing the eyecup, pull lightly the upper edge of it with your fingers [a],
insert a finger into the gap that appears between the eyecup and viewfnder [b], then
remove it.
When attaching the eyecup, fit it onto the camcorder slide it all the way along grooves
until it stops.
•Do not pull the eyecup inward or with excessive force [c]. Doing so may damage the
eyecup.
OPEN
CLOSE
[c]
Identifying the parts and controls
To open/close the shutter of the
hood with a lens cap, slide the
knob to your desired direction
according to the arrow.
