24
This connection will use your 2 front speakers connected to your stereo amplifier (receiver) for
sound. If the stereo amplifier (receiver) has audio input jacks L and R only, use
. If the
amplifier (receiver) has a digital input jack, use . When connecting to an MD deck or a DAT
deck, use . In this case, you can also connect the player directly to the MD deck or DAT
deck without using your stereo amplifier (receiver).
x Recommended surround sound effects for the connection only
•
TVS STANDARD (page 55)
z In connection , you can use the supplied audio/video cord instead of using a separate audio cord.
z To realize better surround sound effects, make sure that your listening position is in between your speakers.
Note
SACD audio signals are not output from the digital jack.

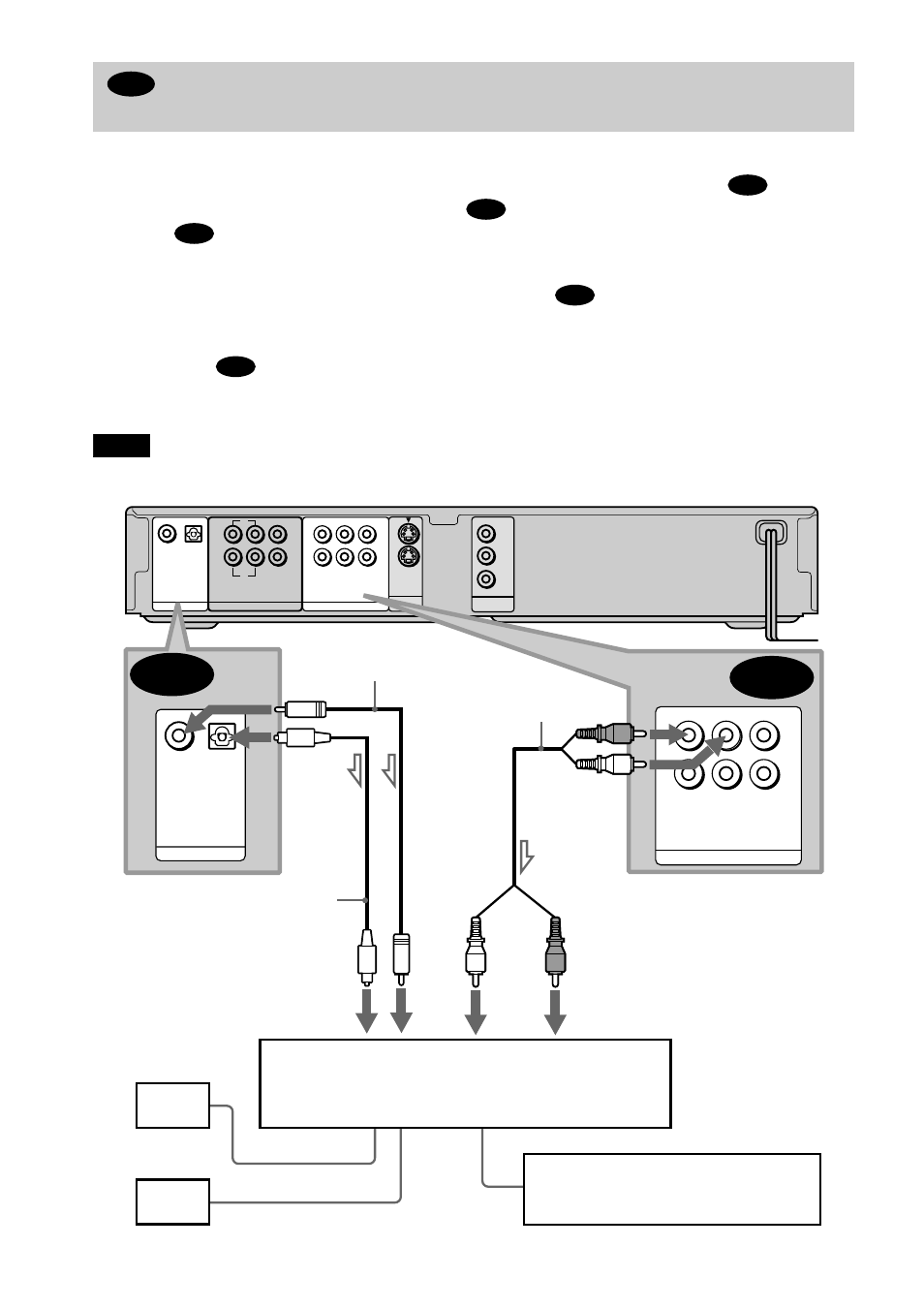

Connecting to a stereo amplifier (receiver) and 2 speakers/Connecting to an
MD deck or DAT deck
C
C-1
C-2
C-2
C-1
C-1
W O O F E R
L
R
FRONT REAR
C E N T E R
LINE OUT
R – AUDIO 2 – L VIDEO 2
R – AUDIO 1 – L VIDEO 1
1
2
PCM/DTS/
DOLBY DIGITAL
COAXIAL OPTICAL
S VIDEO
OUT 5.1CH OUTPUT
COMPONENT
VIDEO OUT
Y
P B
P R
DIGITAL OUT
C-2
C-1
PCM/DTS/
DOLBY DIGITAL
COAXIAL OPTICAL
DIGITAL OUT
LINE OUT
R – AUDIO 2 – L VIDEO 2
R – AUDIO 1 – L VIDEO 1
l : Signal flow
SACD/DVD player
or
Stereo amplifier (receiver)
MD deck/DAT deck
Front
(L)
Front
(R)
[Speakers]
(white)
(red)
(white) (red)
Coaxial digital cord
(not supplied)
Stereo audio cord
(not supplied)
to audio input to coaxial or optical digital input
Optical digital cord
(not supplied)
Remove jack cap
before connecting
or
