16

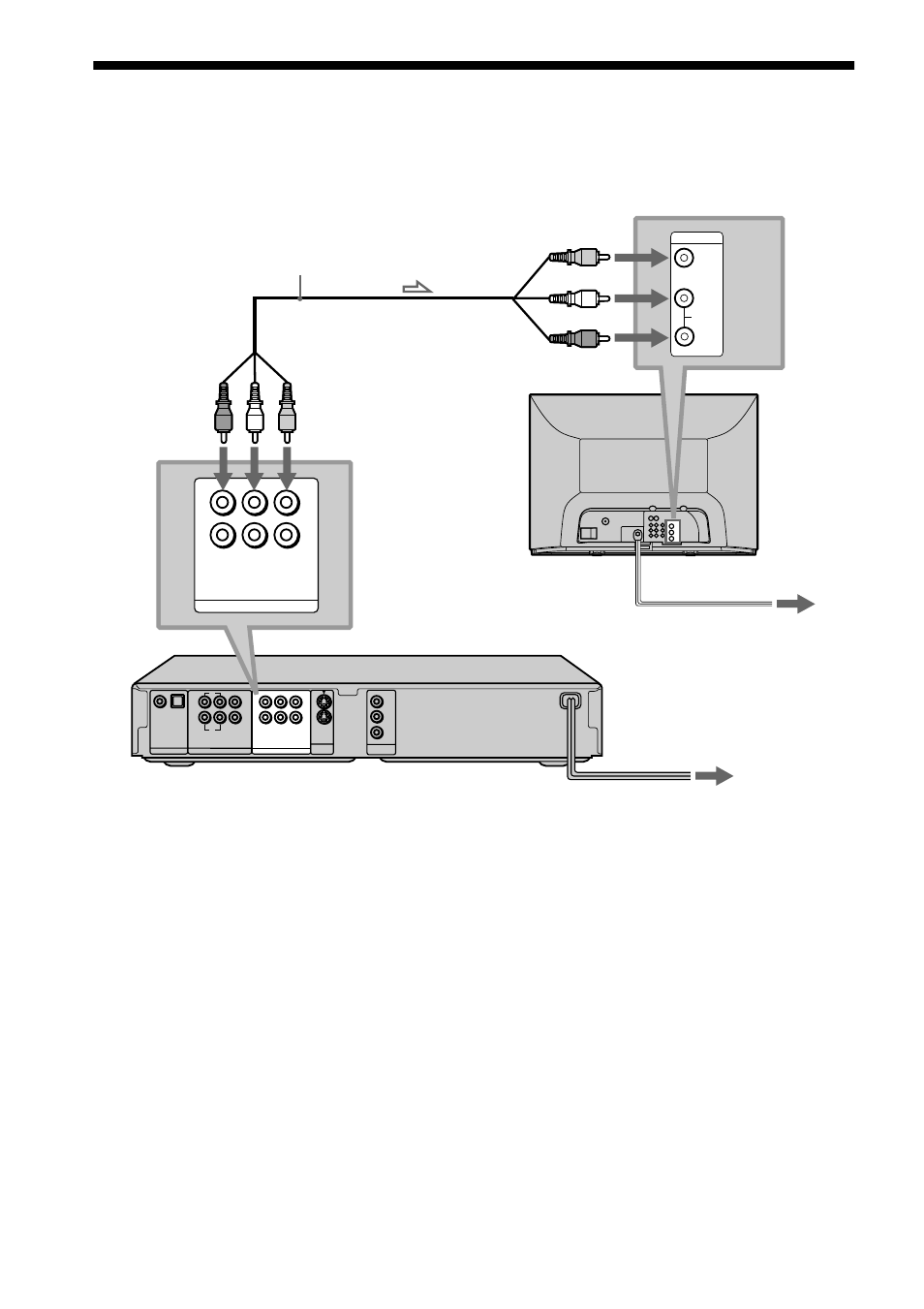

Step 3: TV Hookups
Connect the supplied audio/video cord and the power cord in the order (1~3) shown below.
Be sure to connect the power code last.
When connecting to a wide screen TV
Depending on the disc, the image may not fit your TV screen.
If you want to change the aspect ratio, please refer to page 74.
DIGITAL OUT
W O O F E R
L
R
FRONT REAR
C E N T E R
LINE OUT
R – AUDIO 2 – L VIDEO 2
R – AUDIO 1 – L VIDEO 1
1
2
PCM/DTS/
DOLBY DIGITAL
COAXIAL OPTICAL
S VIDEO
OUT COMPONENT
VIDEO OUT
Y
P B
P R
5.1CH OUTPUT
VIDEO
AUDIO
INPUT
L
R
(yellow)
(white)
(red)
LINE OUT
R – AUDIO 2 – L VIDEO 2
R – AUDIO 1 – L VIDEO 1
3 Power source
SACD/DVD Player
TV
l : Signal flow
to video input
to LINE OUT L/R
(AUDIO) 1
1
Audio/Video
cord (supplied)
to audio input
to LINE OUT
(VIDEO) 1
2 Power source
