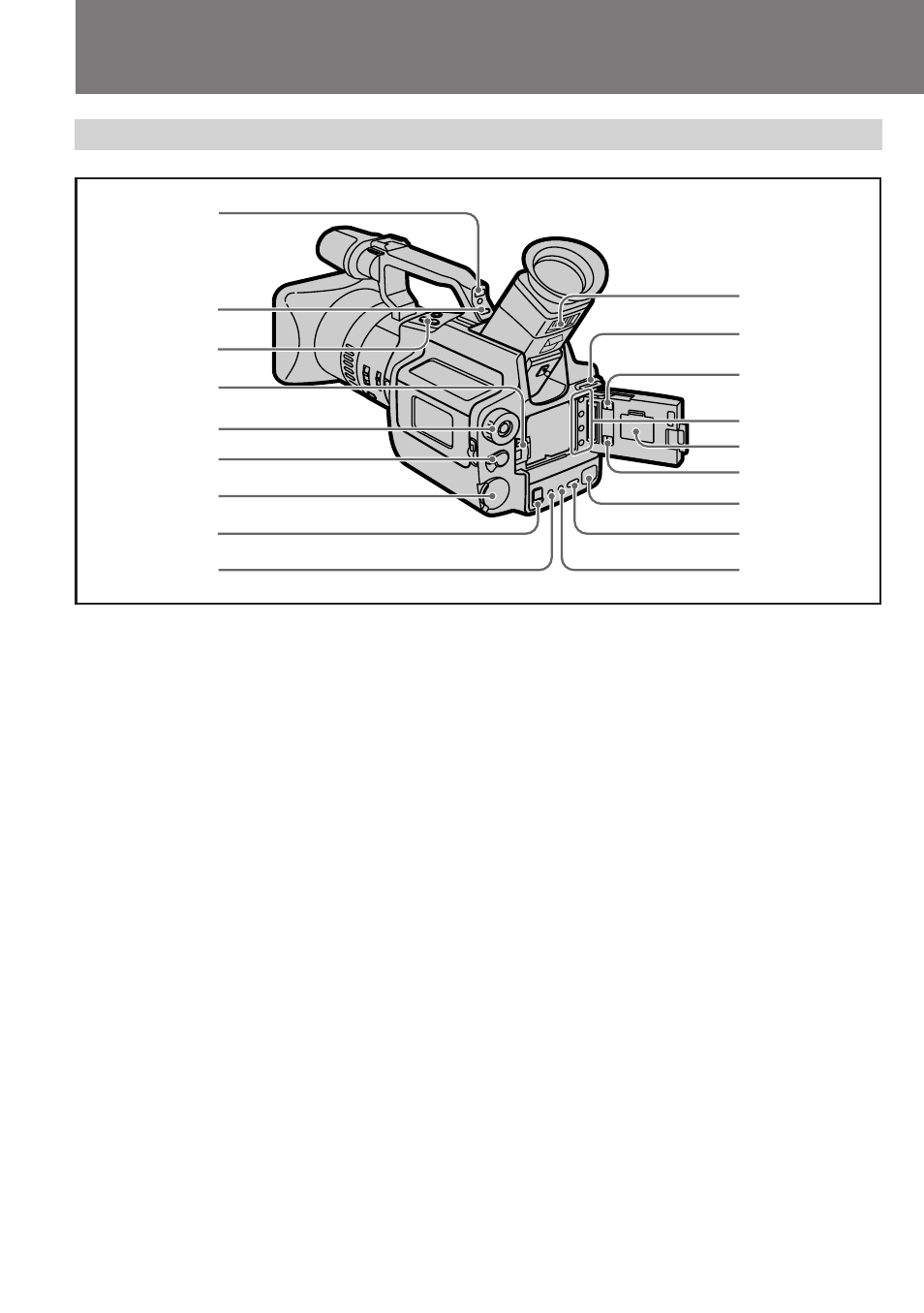

Identifying the Parts

Camcorder

1 Remote sensor (p. 79)

2 CP CHECK button (p. 49)

3 EDITSEARCH buttons (p. 14)

4 RELEASE knob (p. 8)

5 POWER switch (p. 10)

6 HOLD/AUTO LOCK selector (p. 31)

7 CONTROL dial (p. 34)

8 OPEN knob (p. 7)

9 ZERO SET MEMORY button (p. 25)

0 Viewfinder lens adjustment ring (p. 11)

!¡ Hooks for shoulder strap (p. 76)

!™ STEADY SHOT switch (p. 48)

!£ Menu operation buttons (p. 20)

!¢ Lithium battery cover (p. 59)

!∞ DIGITAL MODE switch (p. 24)

!§ DV IN/OUT jack (p. 54)

!¶ ∑ (one push white balance) button (p. 43)

!• SELF TIMER button (p. 30)

1

3

2

4

5
6

8

7

9

!º

!¡

!™

!£

!∞
!§
!¶
!•

!¢
