2 AXB-IRS4 IR/Serial Interface (4 Ports)
AXB-IRS4 Specifications (Cont.)
PWR connector 2-pin captive wire connector connects an external 12 VDC power supply to the
AXB-IRS4. An external power supply should be used when the distance
between the AXB-IRS4 and control system exceeds the wiring guidelines
described in the Wiring Guidelines section on page 6.
Battery Lithium battery backup for stored control commands
Enclosure type Metal with black textured finish
Weight 1.12 lbs (508 grams)
Dimensions 1.51" x 5.55" x 5.45" (38.4mm x 141.0mm x 138.4mm)
Mounting options • Flat surface
• Rack mount, with optional AC-RK Rack Kit

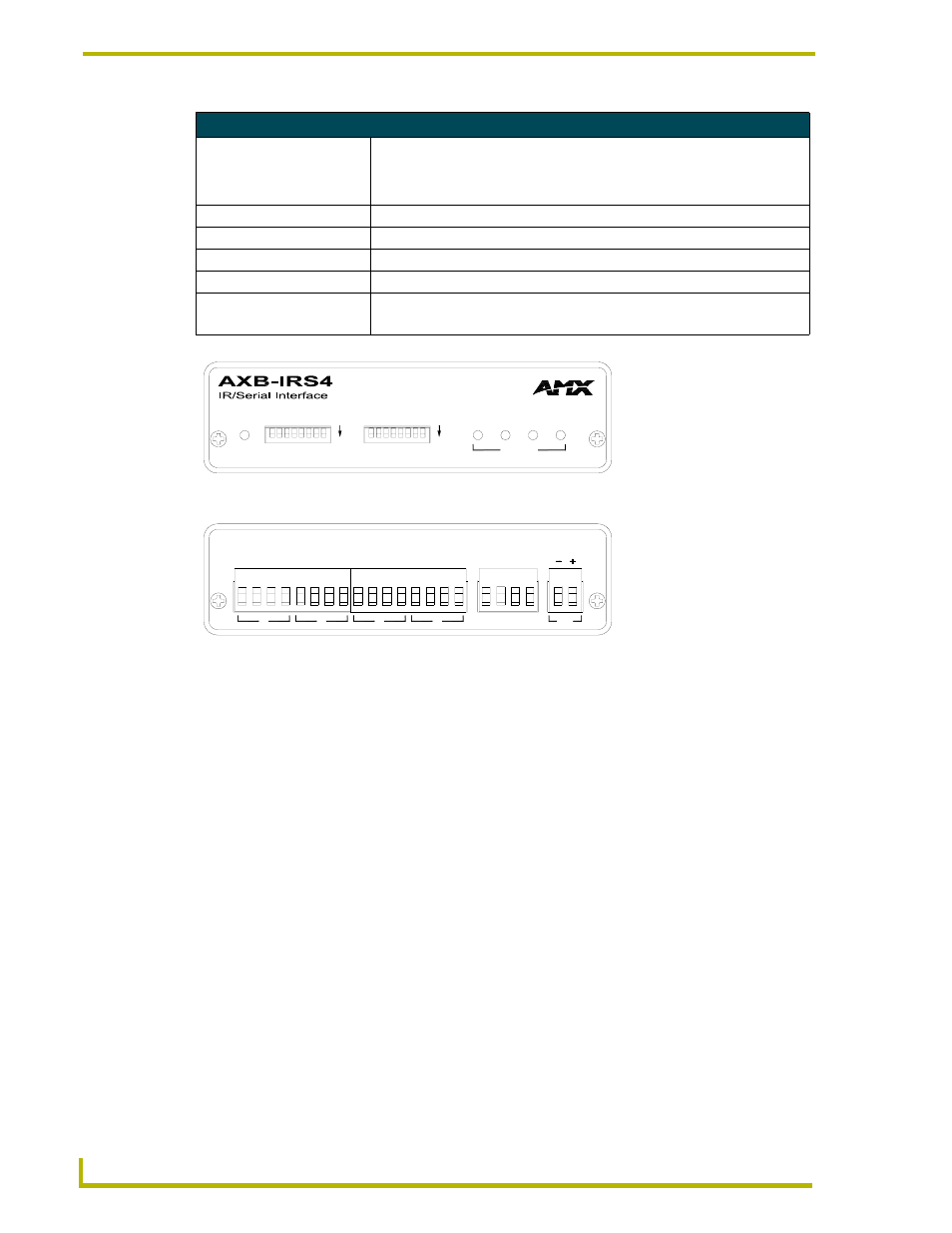

FIG. 1 Front and rear views of the AXB-IRS4
AXlink DEVICE CARRIER / BAUD 1 3 2 4
IR / SERIAL
ON ON
GND SE
R
SE
R
IR GND GND GND IR IR GND SE
R
IR SE
R
GND GND AX
M
/ RX
AX
P /
T
X
GND GND PW
R 12VDC
4 3 2 1 AXlink / RS-232 PWR
Front view
Rear view
