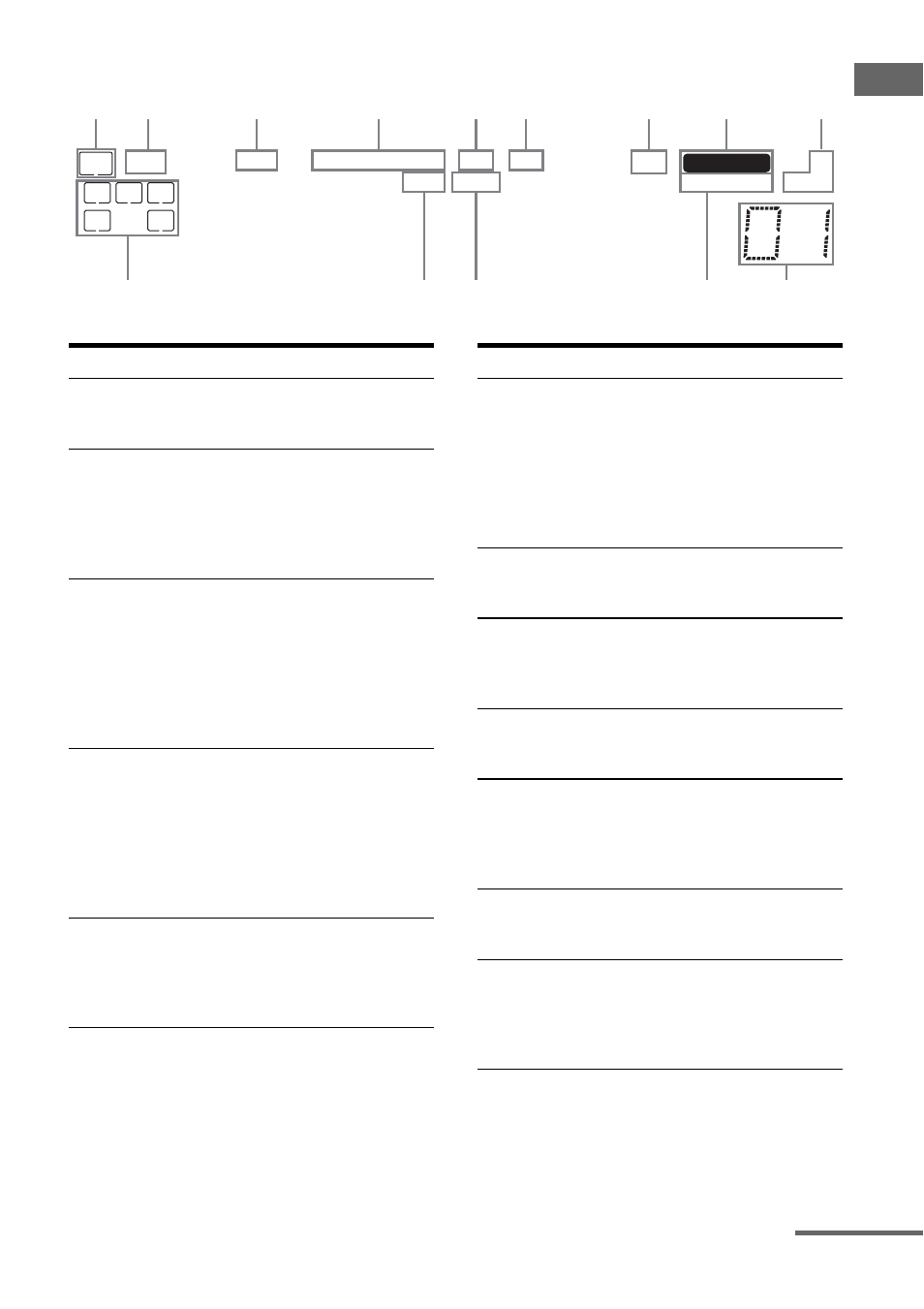

About the indicators on the display
MEMORY
L C R
SL S SR
SW LFE
D.RANGE MONO
ST
COAX HDMI
D ; DTS OPT PLII CAT ; PL ;
2 1 3 4 5 6 8 9 7
qf qs qd q; qa
Name Function
A SW Lights up when the audio signal
is output from the SUB
WOOFER jack.
B LFE
Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
C ; D
Lights up when the receiver is
decoding Dolby Digital signals.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is set to
“AUTO” (page 70).
D ; PL/
; PLII
“; PL” lights up when the
receiver applies Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
“; PLII” lights up when the
Pro Logic II Movie or Music
decoder is activated.
E OPT
Lights up when INPUT MODE
is set to “AUTO” and the source
signal is a digital signal being
input through the OPTICAL
jack (page 70).
Name Function
F DTS Lights up when the receiver is
decoding DTS signals.
Note
When playing a DTS format
disc, be sure that you have made
digital connections and that
INPUT MODE is set to
“AUTO” (page 70).
G CAT
Lights up when category mode
is set to “ONE CAT” during
XM Radio operation (page 60).
H MEMORY
Lights up when a memory
function, such as Preset
Memory (page 54), etc., is
activated.
I Tuner
indicators
Lights up when using the
receiver to tune in radio stations
(page 52), etc.
J Preset
station
indicators
Lights up when using the
receiver to tune in radio stations
you have preset. For details on
presetting radio stations, see
page 53.
K D.RANGE
Lights up when dynamic range
compression is activated (page
41).
L COAX
Lights up when INPUT MODE
is set to “AUTO” and the source
signal is a digital signal being
input through the COAXIAL
jack (page 70).
