Description and location of parts

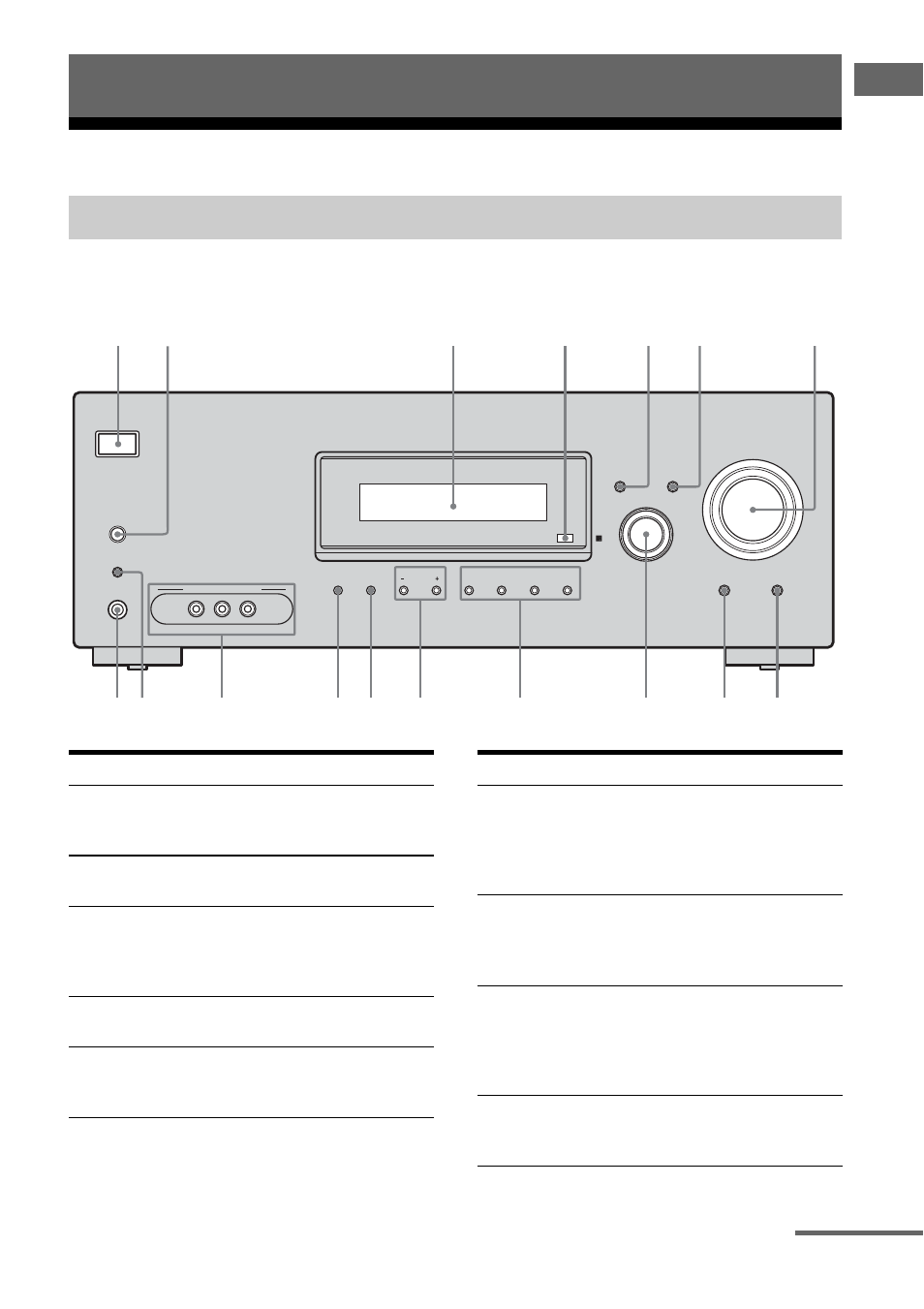

Front panel
Getting Started
Receiver
?/1
AUTO CAL MIC
SPEAKERS
(ON/OFF)
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE TUNING 2CH A.F.D. MOVIE MUSIC AUTO CAL MUTING
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
8 9 q; qs qd qf qa
7 1 2 3 4 5 6
qg qh qj
Name Function
A ?/1
(on/standby)
Press to turn the receiver on
or off (page 28, 36, 37, 51,
85).
B SPEAKERS
(ON/OFF)
Press to turn the speaker
system on or off (page 17).
C Display
The current status of the
selected component or a list
of selectable items appears
here (page 7).
D Remote sensor Receives signals from
remote commander.
E DISPLAY Press to select information
displayed on the display
(page 61, 74).
Name Function
F INPUT MODE
Press to select the input
mode when the same
components are connected
to both digital and analog
jacks (page 70).
G MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 33, 34,
36, 37).
H MUTING
Press to turn off the sound
temporarily.
Press MUTING again to
restore the sound (page
35).
I AUTO CAL Press to activate the Auto
Calibration function
(page 29).
continued
