Page 23
23
US
Ge
tting Star
te
d

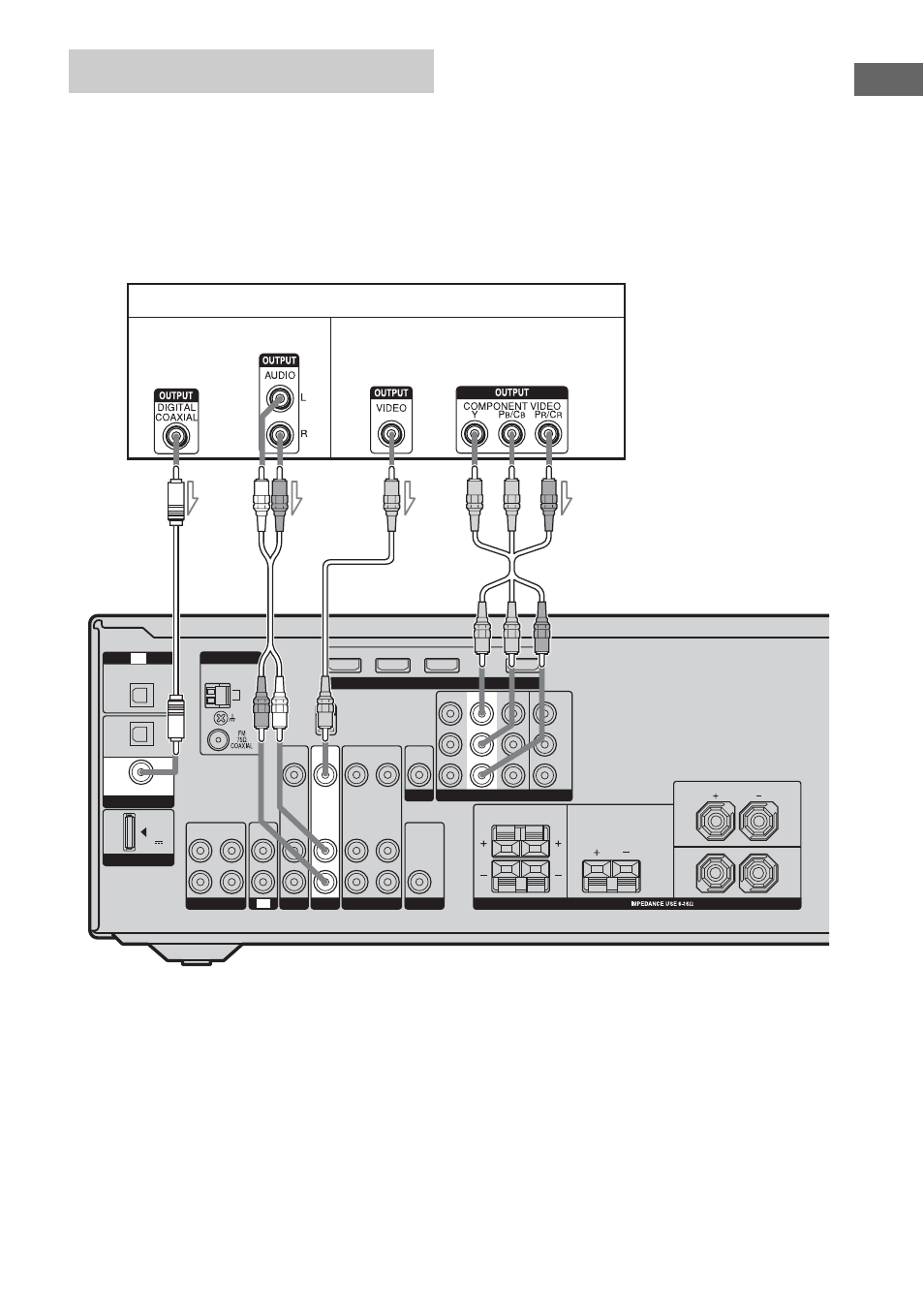

The following illustration shows how to
connect a DVD player.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
Note
To input multi channel digital audio from the DVD
player, set the digital audio output setting on the
DVD player. Refer to the operating instructions
supplied with the DVD player.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Connecting a DVD player
AM
HDMI
XM
SAT IN
DVD IN
BD IN
OUT
SA-CD/CD/CD-R
OUT
IN
IN
L
R
DMPORT
ANTENNA
TV
SUB WOOFER
VIDEO
IN
SAT
MONITOR
AUDIO
IN
VIDEO
IN
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
VIDEO 1
DC5V
0.7A MAX
SURROUND
CENTER
L
R
FRONT
L
R
SPEAKERS
DIGITAL
(ASSIGNABLE)
OPTICAL
OPTICAL
SAT
IN
DVD
IN
COAXIAL
IN
TV
AUDIO
IN
DVD
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
SAT IN
AUDIO
IN
VIDEO
IN
DVD IN
VIDEO 1 IN MONITOR OUT
DVD player
A
B
A
Coaxial digital cord (not supplied)
B
Audio cord (not supplied)
C
Video cord (not supplied)
D
Component video cord (not supplied)
C
D
Audio signals
Video signals
