7

US

Preparation

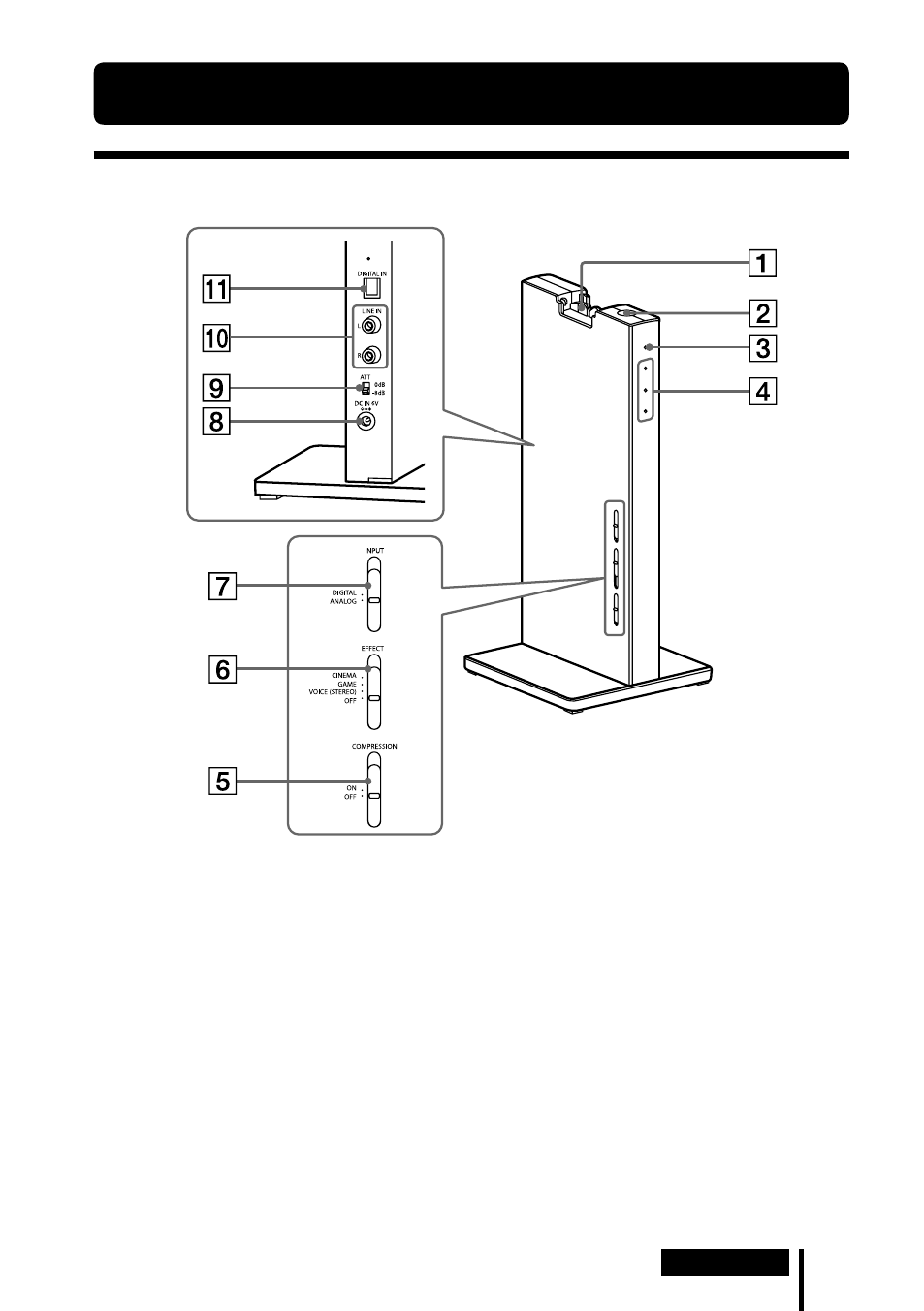

Processor Part Descriptions

Contact pin
  / (on/standby) button
Power indicator

Lights up in green while emitting RF signals.

Decode Mode indicators

(See page 19

for details.)

COMPRESSION switch

(See page 18

for details.)

EFFECT switch

(See page 17 for details.)
Slide to select the sound field (CINEMA/
GAME/VOICE (STEREO)/OFF).

INPUT switch

(See page 17

for details.)

Slide to select the input source (DIGITAL/
ANALOG).

DC IN 6V jack

Connect the supplied AC power adaptor to
this jack. (Be sure to use the supplied AC
power adaptor. Using products with a different
plug polarity or other characteristics can cause
a malfunction.)

ATT (attenuator) switch

Set this switch to “0 dB” if the volume is too
low for analog input. Normally, this switch
should be set to “–8 dB.”

Location and Function of Parts

(Continued)
