4
Parts Identification
The items are arranged in alphabetical order. Refer to the pages indicated in parentheses for details.

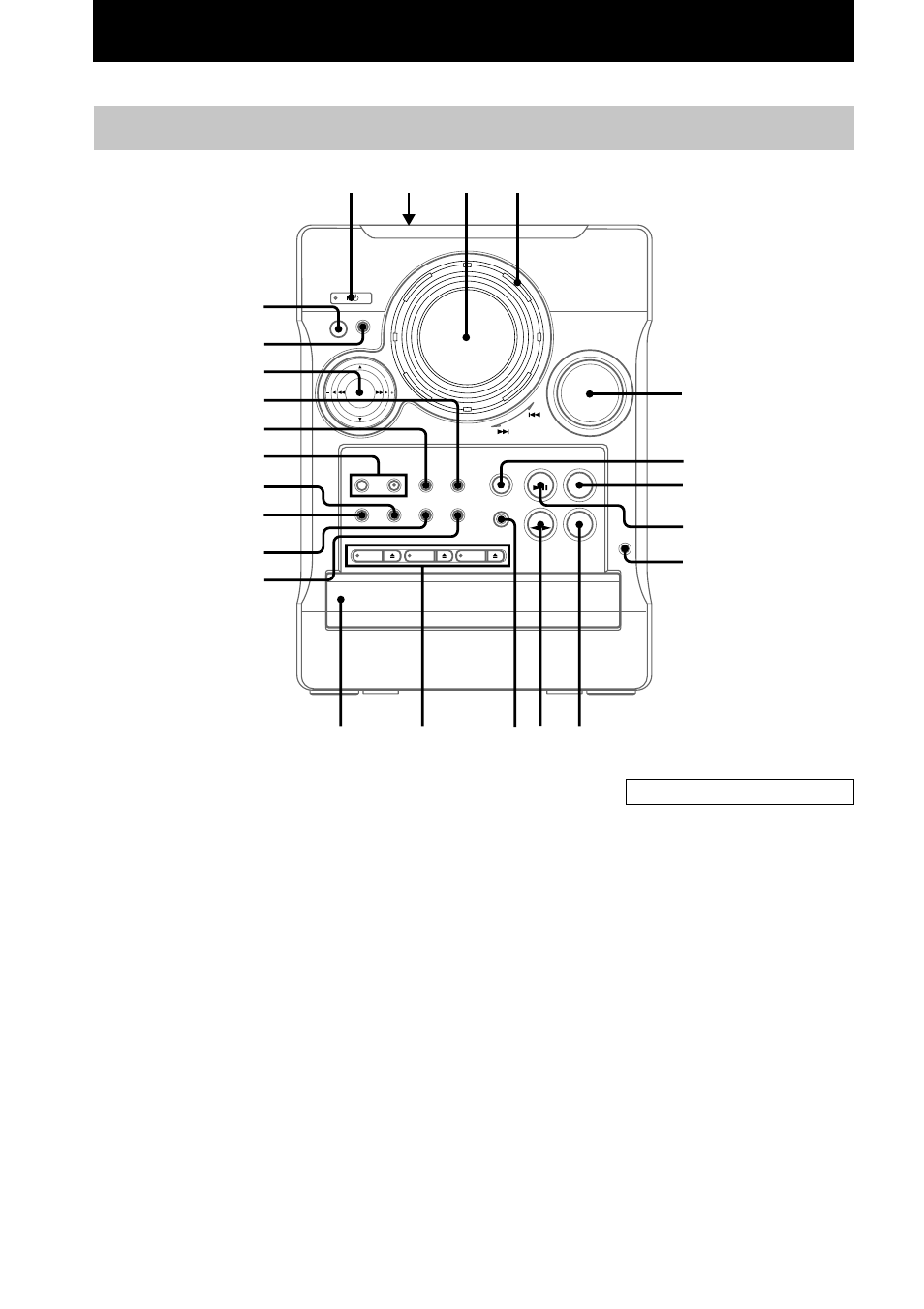

Main unit
1 2 3 4
5
wd
wf
6
7
8
9
0 qa qs qd qf
qh
qg
qj
ql
ws
w;
wa
qk
BASS/TREBLE ws (21)
CD 1 – 3 qd (11)
CD 1 – 3 Z qd (9)
CD disc tray qf (9)
CD SYNC ql (18)
CD NX 8 (9)
DBFB wa (20)
DIMMER qg (7)
DISPLAY wd (8, 12)
Display window 3
EDIT w; (18)
FUNCTION qs (9, 17, 18)
GROOVE qj (20)
MD 0 (24)
MUSIC MENU ws (21) PHONES jack 9
PLAY MODE/DIRECTION qk
(9, 17, 18)
REC PAUSE/START ql (18, 19)
Remote sensor wf
REPEAT qh (10)
STEREO/MONO qh (15)
Tape deck lid 2 (17)
TAPE nN qa (17, 18)
TUNER/BAND 7 (14, 15)
VOLUME 5
BUTTON DESCRIPTIONS
?/1 1
./> 4
x 6
m/M ws
+/– ws
