Sony CCD-TRV338 - Manual (Page 107)

Quick R
e
fere
nce
Quick Reference 107

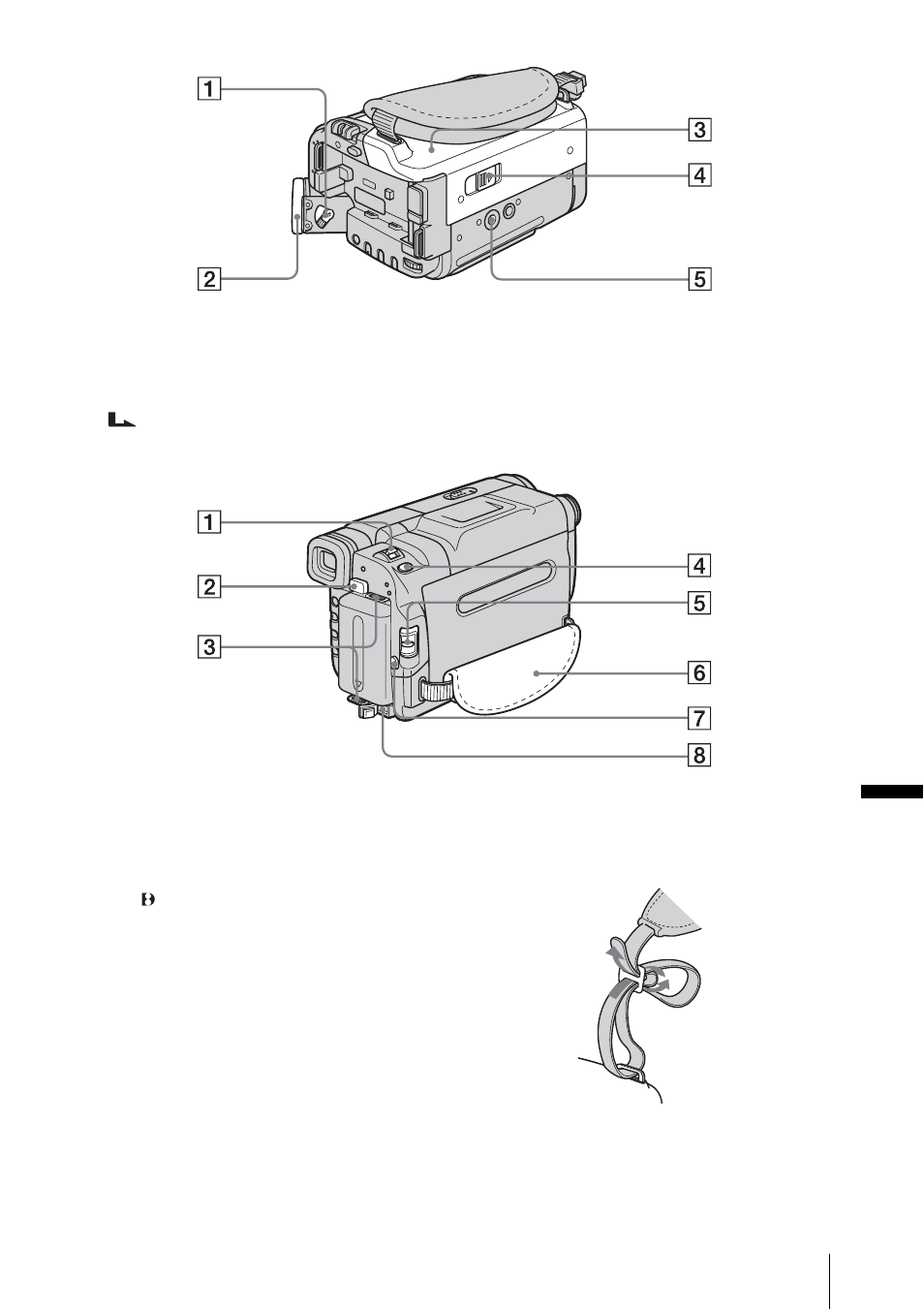

A Viewfinder lens adjustment lever (p. 16)
B Eyecup
C Cassette lid
D
OPEN/EJECT lever (p. 18)
E Tripod receptacle
Make sure that the length of the tripod
screw is less than 5.5 mm (7/32 inch).
Otherwise, you cannot attach the tripod
securely, and the screw may damage your
camcorder.
A Power zoom lever (p. 23)
B BATT (battery) release button (p. 12)
C Hooks for shoulder strap
D For
TRV280:
PHOTO button (p. 25)
E POWER switch (p. 15)
F Grip belt (p. 4)
G REC START/STOP button (p. 21)
H DC IN jack (p. 12)
To attach the shoulder strap
Attach the shoulder strap supplied with your
camcorder to the hooks for the shoulder strap.
,continued
