10. Secure the axles to axle support brackets using two
washers (K) and 1/8" x 1-1/2" cotter pins (L) at the ends
of each axle. See figure 7.
11. Tighten the four axle brackets assembled in step 10.
See figure 7.
12. Add grease to the spool assemblies through the grease
fittings until grease is forced out the ends of the spool
tubes. See figure 7.
L
GREASE
FITTING
K
H
I
J
B
O
WEIGHT
BRACKET
STRAP
MAST
EXTENSION
STRAP
J
C
STRAP
MAST
SIDE
P
J
A
AXLE
SUPPORT
BRACKETS
I
H

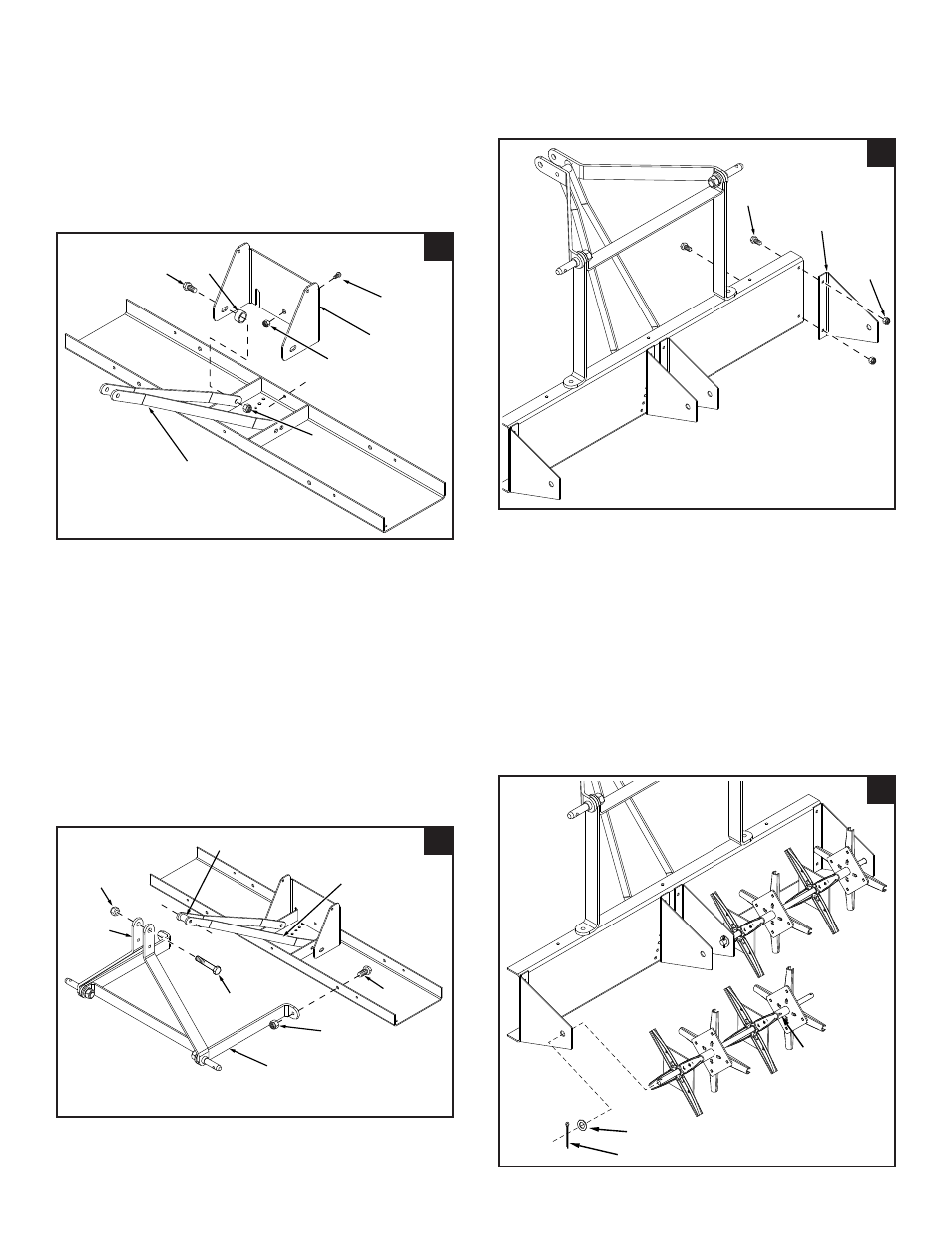

4. Attach the weight bracket to the tray using a 3/8" x 1"
bolt (H) and 3/8" nylock nut (I). Do not tighten yet. See
figure 4.
5. Assemble the straps to the holes in the weight bracket
and the tray that are aligned. Use two 1/2" x 2-1/4" bolts
(B), .75" spacers (O) and 1/2" nylock nuts (J).
Do not
tighten yet. See figure 4.
6. Attach the mast extension straps to the front of the tray
using two 1/2" x 1-1/4" bolts (C) and 1/2" nylock nuts
(J).
Do not tighten yet. See figure 5.
7. Assemble the mast sides to the straps using the 1-1/2"
spacer (P), 1/2" x 3-1/2" hex bolt (A) and 1/2" nylock
nut (J).
Do not tighten yet. See figure 5.
8. Tighten all loose nuts assembled through step 7.
9. Attach the four axle support brackets to the tray using
eight 3/8" x 1" hex bolts (H) and 3/8" nylock nuts (I). Do
not tighten yet! See figure 6.
5
4
6
7
