AssEMBLY INsTRUCTIONs
TOOLs REQUIRED FOR AssEMBLY
(2) Adjustable Wrench
(2) 3/4" Open or Box End Wrench
(2) 9/16" Open or Box End Wrench
(2) 1/2" Open or Box End Wrench
(1) Pliers

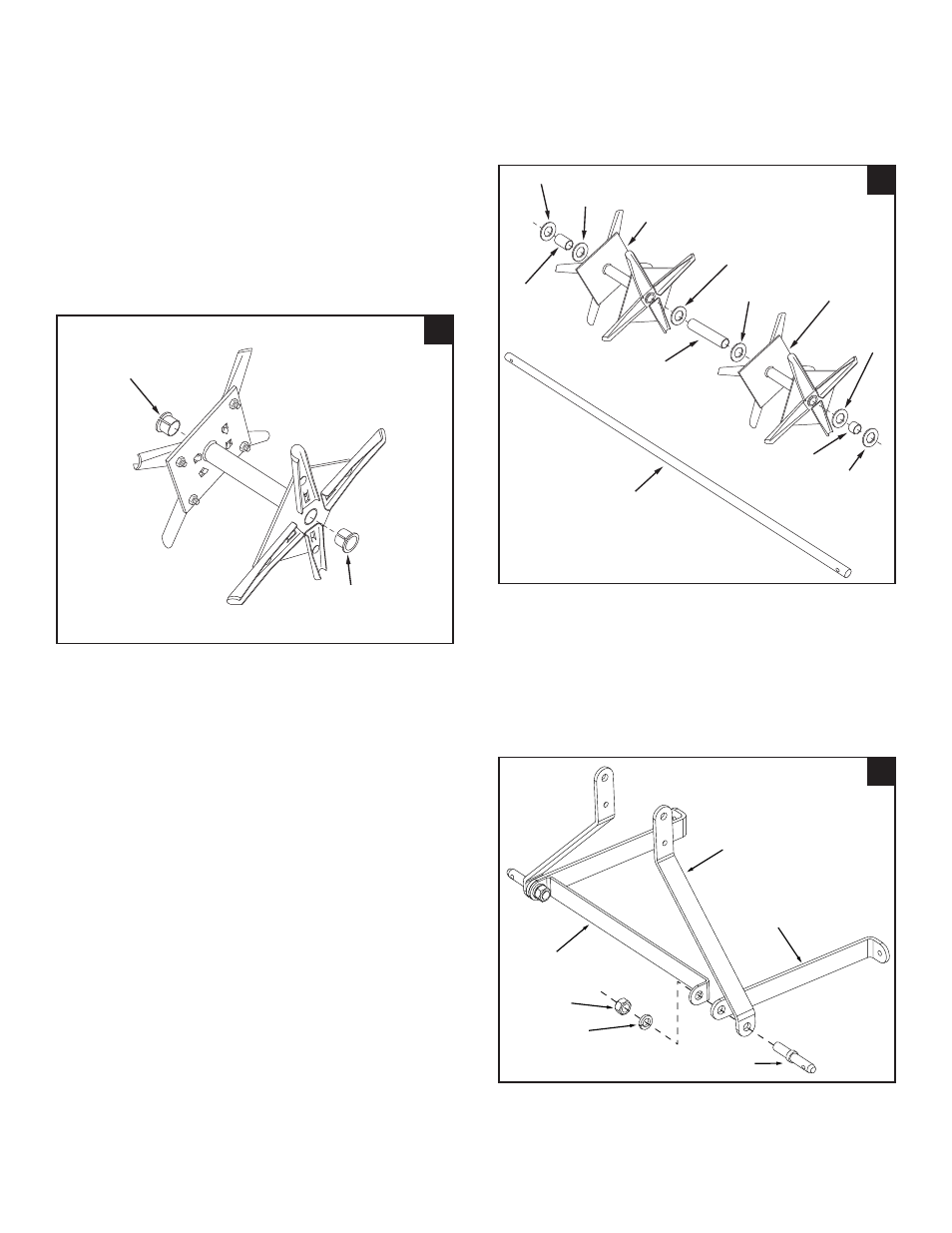

1. Push split bearings (M) into both ends of each double
spool tube. See figure 1.
M
M
2. Assemble a washer (K), 1.65" spacer (E), a washer (K),
a spool assembly, a washer (K), a 5.29" spacer (G), a
washer (K), a second spool assembly, a washer (K),
a 2.38" spacer (D) and a washer (K) onto each of the
axles. See figure 2.
AXLE
D
K
E
G
K SPOOL
ASSEMBLY
SPOOL
ASSEMBLY
K
K
K
K
Q
R
S
CROSS BRACE
MAST
EXTENSION
STRAP
MAST SIDE
3. Assemble the cross brace, mast extension straps and
mast sides together using two category 1 pins (Q), 7/8"
lock washers (R) and 7/8" hex nuts (S).
Do not tighten
yet. See figure 3.
