Position and Level the Tumbler

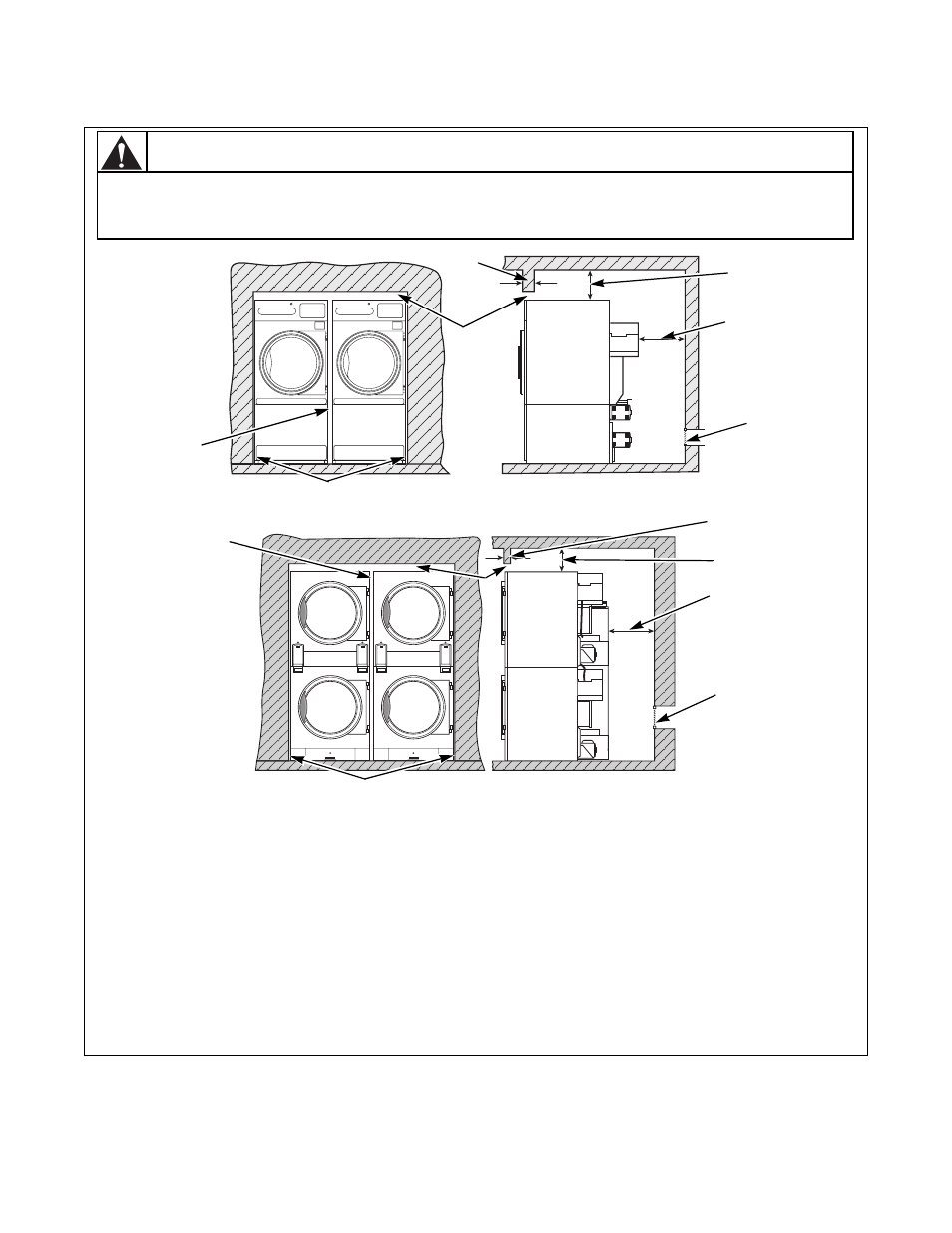

Figure 1
TMB2110N
NOTE: Shaded areas indicate adjacent structure.
1
13 mm (0.5 in.) recommended between machines for removal or installations.
2
Allow 51-102 mm (2-4 in.) opening at top of machine to aid in removal or installation. A removable trim piece may
be used to conceal the opening; zero clearance allowed for trim.
3
102 mm (4 in.) Maximum Header Thickness
4
305 mm (12 in.) Minimum Clearance
5
610 mm (24 in.) minimum, 914 mm (36 in.) recommended for maintenance purposes.
6
Provision for make-up air: Minimum 709 cm
2
(110 in.
2
) required per tumbler for 25 and 30, 928 cm
2
(144 in.
2
) for
35 and 55 pound models, 1418 cm
2
(220 in.
2
) for T30 models and 1856 cm
2
(288 in.
2
) for T45 models. Location
for reference only. May be anywhere behind tumbler.
6 mm (0.25 in.) recommended for removal or installation purposes, zero clearance allowed.
TMB2110N
To reduce the risk of severe injury, clearance of tumbler cabinet from combustible
construction must conform to the minimum clearances.
W056
WARNING
TMB2021N
2
4
5
6
7
3
2
4
3
1
TMB2021N
1
7
25, 30, 35 AND 55 POUND
5
6
T30 AND T45
