Installation/Operation Supplement
70392201 (EN) 8

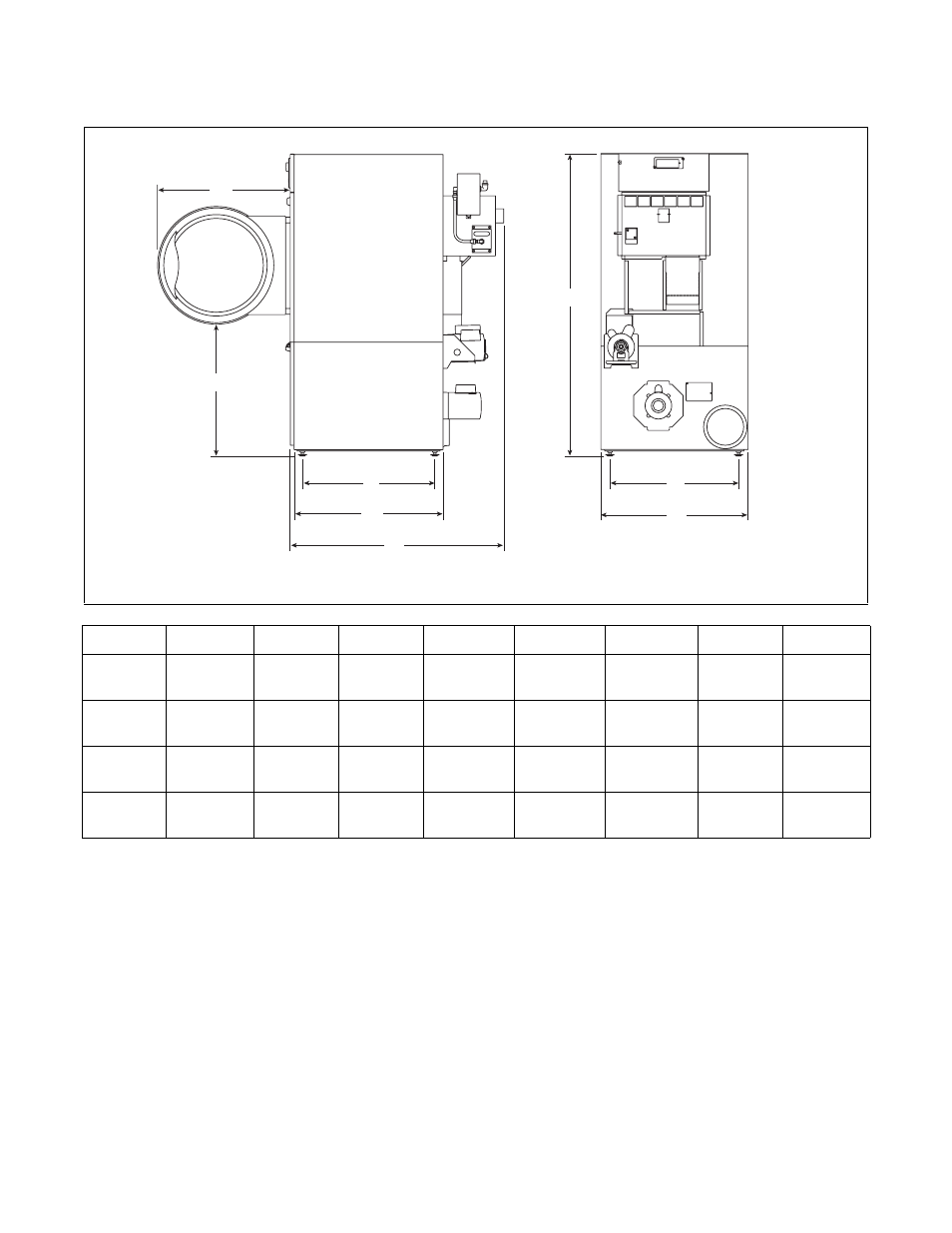

Cabinet Dimensions — 25, 30, 35 and 55 Pound Models
NOTE: Facia panels available to increase height of
single pocket models to 1835 mm (72.25 inches) and
1938 mm (76.25 inches).
TMB2209N
TMB2209N
B
A
C
H
E
F
D
G
Models A B C D E F G H
25 Pound
667 mm
(26.25 in.)
699 mm
(27.5 in.)
593 mm
(23.35 in.)
654 mm
(25.75 in.)
1038 mm
(40.875 in.)
1622 mm
(63.875 in.)
626 mm
(24.64 in.)
711 mm
(28 in.)
30 Pound
667 mm
(26.25 in.)
699 mm
(27.5 in.)
720 mm
(28.35 in.)
806 mm
(31.75 in.)
1191 mm
(46.875 in.)
1622 mm
(63.875 in.)
626 mm
(24.64 in.)
711 mm
(28 in.)
35 Pound
711 mm
(28 in.)
699 mm
(27.5 in.)
720 mm
(28.35 in.)
806 mm
(31.75 in.)
1191 mm
(46.875 in.)
1622 mm
(63.875 in.)
695 mm
(27.38 in.)
800 mm
(31.5 in.)
55 Pound
810 mm
(31.88 in.)
682.5 mm
(26.87 in.)
857.25 mm
(33.75 in.)
971.5 mm
(38.25 in.)
1365 mm
(53.62 in.)
1694.7 mm
(66.75 in.)
774.7 mm
(30.5 in.)
876 mm
(34.5 in.)
