Installation/Operation Supplement
11 70392201 (EN)

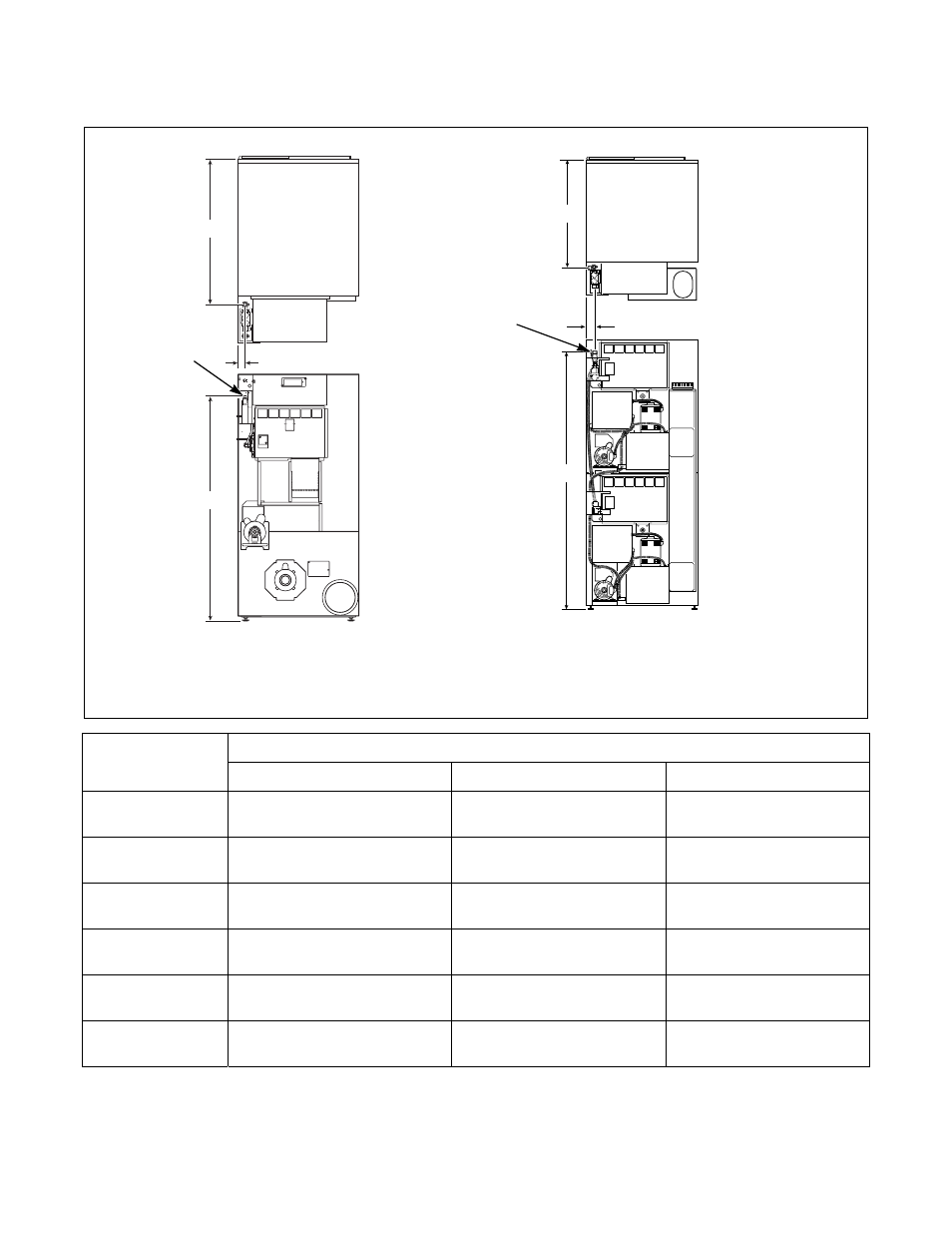

Gas Connection Locations
TMB2106N TMB1970N
1 1/2 in. NPT
TMB1970N
TMB2106N
B
C
C
B
A
A
T30 AND T45
1
1
25, 30, 35 AND 55 POUND
Models
Gas Connection
A B C
25 Pound
1500 mm
(59 in.)
38.1 mm
(1.5 in.)
737 mm
(29 in.)
30 Pound
1500 mm
(59 in.)
38.1 mm
(1.5 in.)
889 mm
(35 in.)
T30
1912 mm
(75.28 in.)
64 mm
(2.5 in.)
777 mm
(30.60 in.)
35 Pound
1500 mm
(59 in.)
64 mm
(2.5 in.)
889 mm
(35 in.)
T45
2000 mm
(78.75 in.)
105 mm
(4.12 in.)
1089 mm
(42.88 in.)
55 Pound
1500 mm
(59 in.)
64 mm
(2.5 in.)
889 mm
(35 in.)
