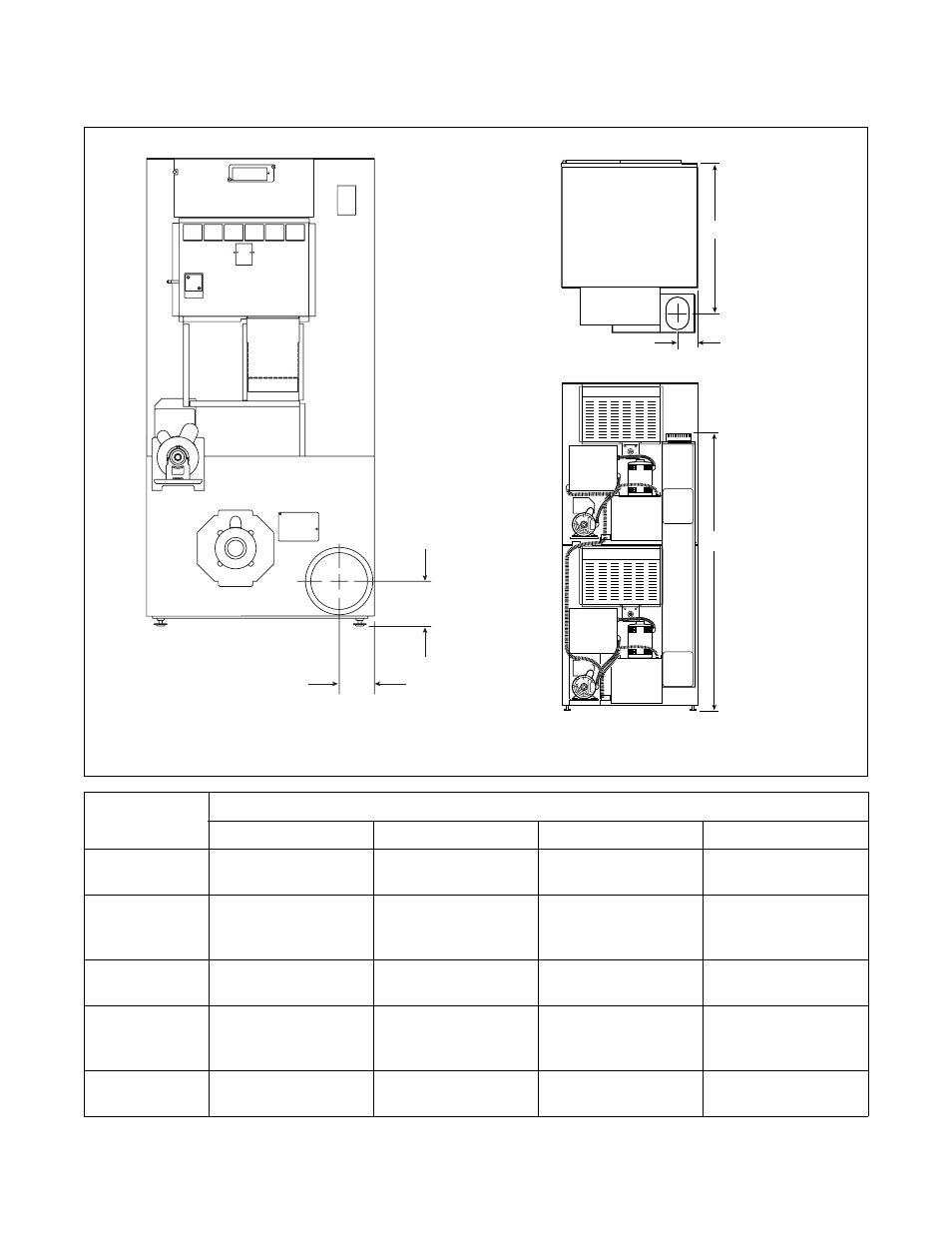

Exhaust Outlet Locations
TMB2132N TMB1969N
TMB2132N
TMB1969N
C
A
B
B
A
25, 30, 35 AND 55 POUND T30 AND T45
Models
Rear Exhaust
Diameter A B C
25/30 Pound
152 mm
(6 in.)
99 mm
(3.875 in.)
117 mm
(4.625 in.)
N/A
T30
Elliptical Fits
203 mm
(8 in.)
928 mm
(36.54 in.)
108 mm
(4.25 in.)
1585 mm
(62.42 in.)
35 Pound
203 mm
(8 in.)
124 mm
(4.875 in.)
143 mm
(5.625 in.)
N/A
T45
Elliptical Fits
254 mm
(10 in.)
1038 mm
(40.88 in.)
121 mm
(4.75 in.)
1676 mm
(66 in.)
55 Pound
203 mm
(8 in.)
122 mm
(4.808 in.)
156.3 mm
(6.156 in.)
N/A
N/A = Not Applicable
