The printer port on this port replicator is intended for printer connections only.

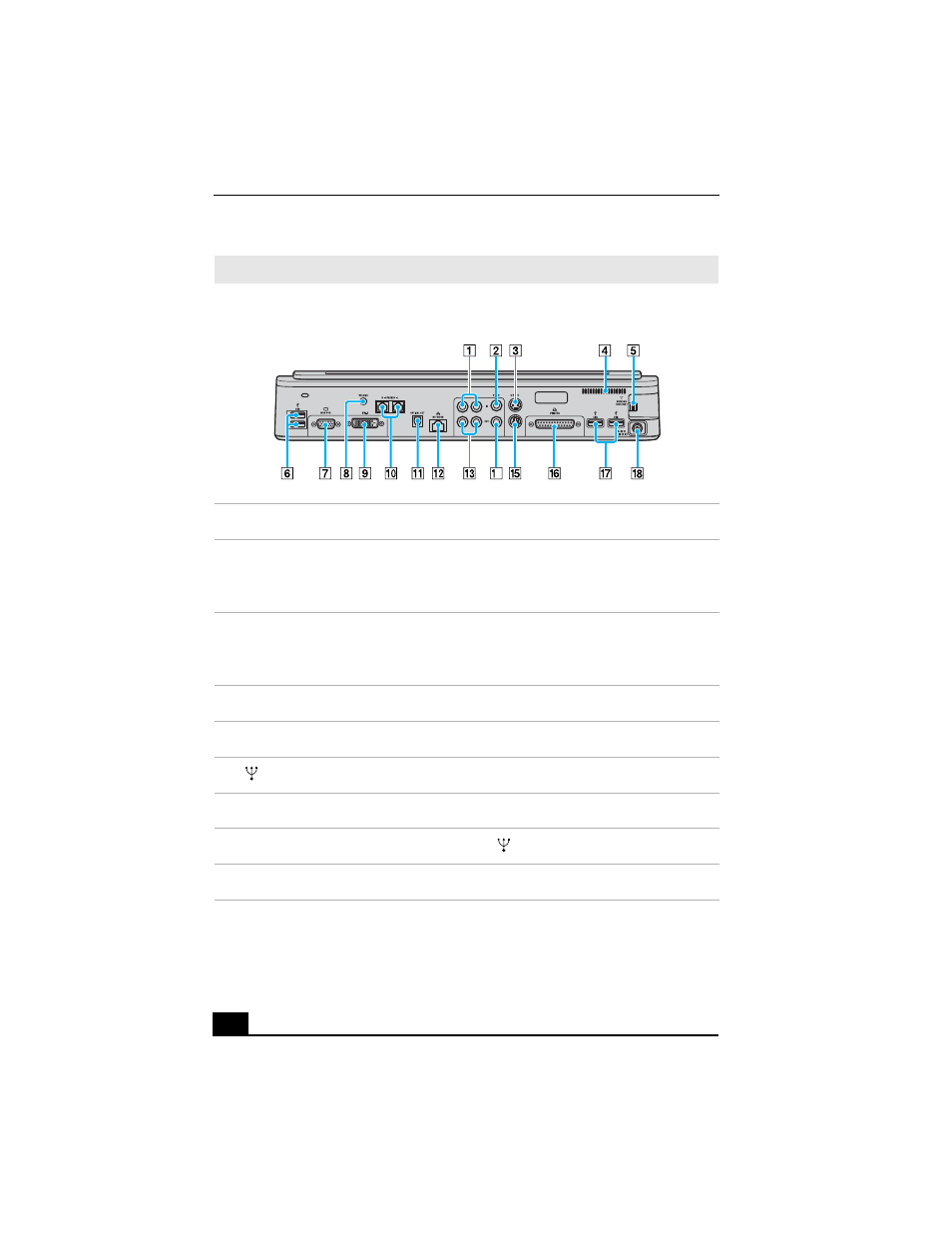

A/V Port Replicator
1 Composite Audio In jacks 10 Speaker jacks (right and left)
2 Composite Video In jack 11 Optical Out port
Output frequency (96 kHz
*
/48
kHz/44 kHz/Variable)
* Output frequency is fixed at 48 kHz for all source sample rates except 32 kHz and 44.1 kHz.
3 S Video In port 12 Network (Ethernet) port
(10BASE-T / 100BASE-TX /
1000BASE-TX)
4 Air vent 13 Composite Audio Out jacks
5 VHF/UHF port 14 Composite Video Out jack
6 USB 2.0 ports
†
† Supports high-/full-/low- speeds.
15 S Video Out port
7 Monitor (VGA) port 16 Printer port
8 Volume jack 17 USB 2.0 ports
‡
9 DVI-D port 18 DC IN port
