Chapter 5
87

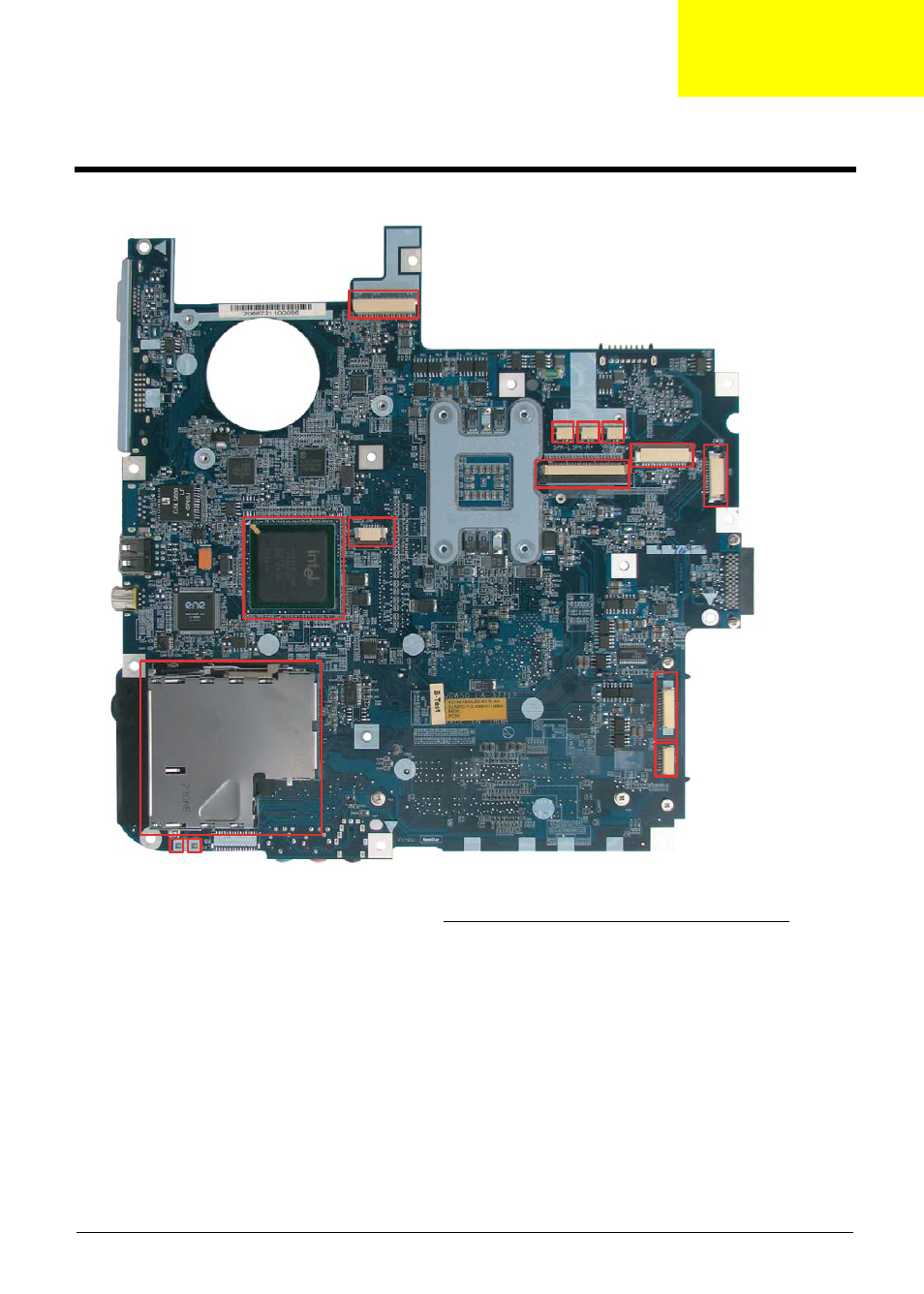

Top View
1
JP1
LCD Connector
8
JP2
Mainboard to Button Board
Connector
2
JP3
Speaker (Left) Connector
9
JP36
Mainboard to LED Board
Connector
3
JP34
Speaker (Right) Connector
10
JP9
PCI Express Card Socket
4
JP4
Internal MIC Connector
11
LED1
Power/Suspend LED
5
U5
South Bridge (ICH7M)
12
LED2
Battery Charge/Discharge LED
6
JP6
Internal Track-Pad Connector
13
JP11
Mainboard to USB Board
Connector
7
JP5
Internal Keyboard Connector
14
JP12
Bluetooth Module Connector
1
1
2 3 4
2 3 4
5
7
8
9
6
5
7
8
9
10
10
14
14
12
12
13
13
11
11
10
14
12
13
11
6
Jumper and Connector Locations
Chapter 5
