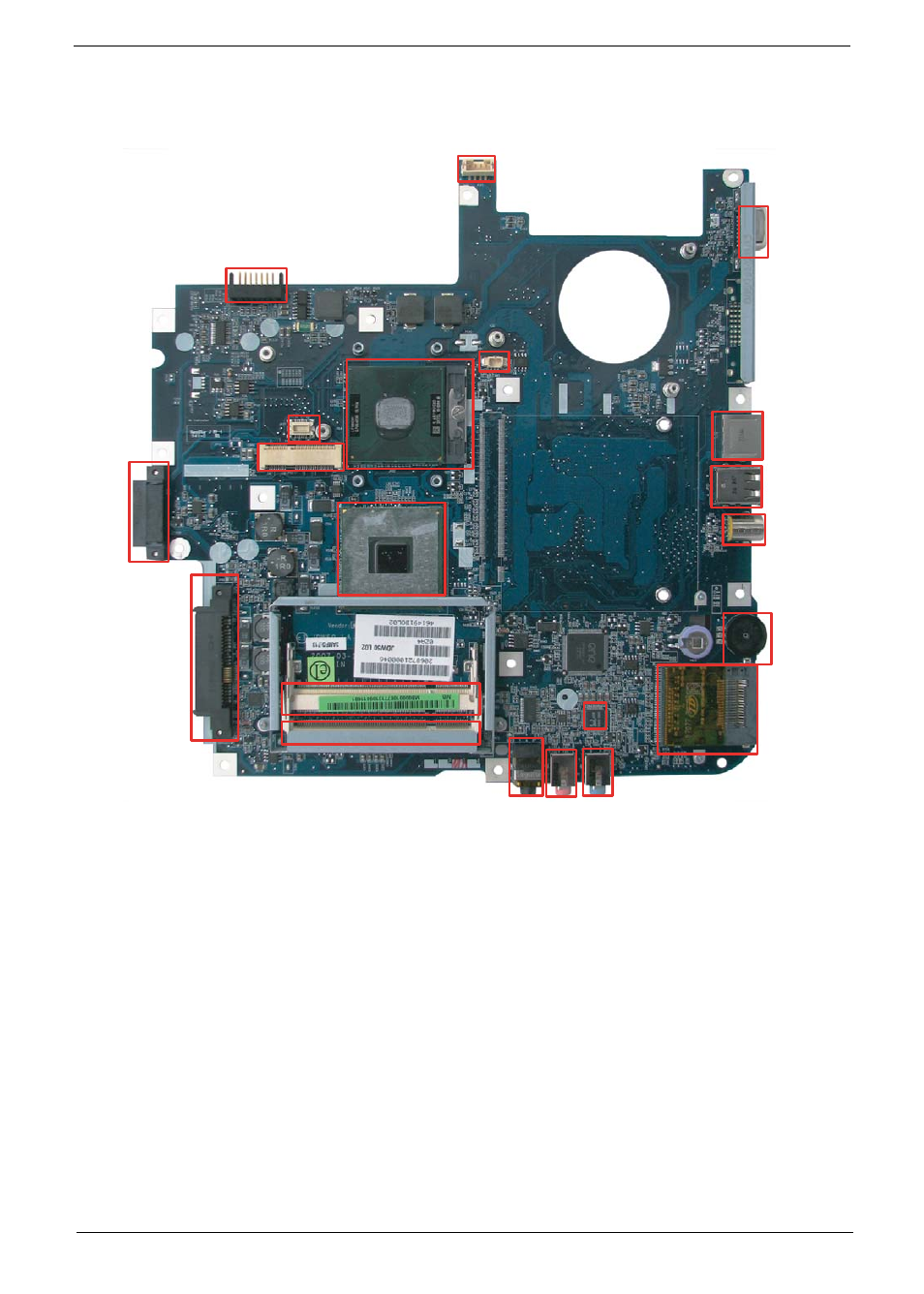

Bottom View
1 PJP1 DC-in Power Jack 12 JP27 SATA HDD Connector
2 PJP2 Battery Connector 13 U23 North Bridge (945GM/PM /
943GML)
3 JP14 CRT Connector 14 U29 Volume Control
4 JP25 ODD Connector 15 JP28 DDRII Memory Socket
5 JP19‘ Mini Card (TV-Tuner) Socket 16 JP29 DDRII Memory Socket
6 JP17 MDC Connector 17 U33 Audio Codec Controller
7 JP22 CPU Socket 18 JP30 5-in-1 Card Reader Socket
8 JP16 Internal Fan Connector 19 JP31 Headphone/SPDIF Jack
9 JP18 RJ45 (LAN) Connector 20 JP32 Mic-in Jack
10 JP23 USB (Dual) Connector 21 JP33 Line-in Jack
11 JP24 TV-out Connecto
