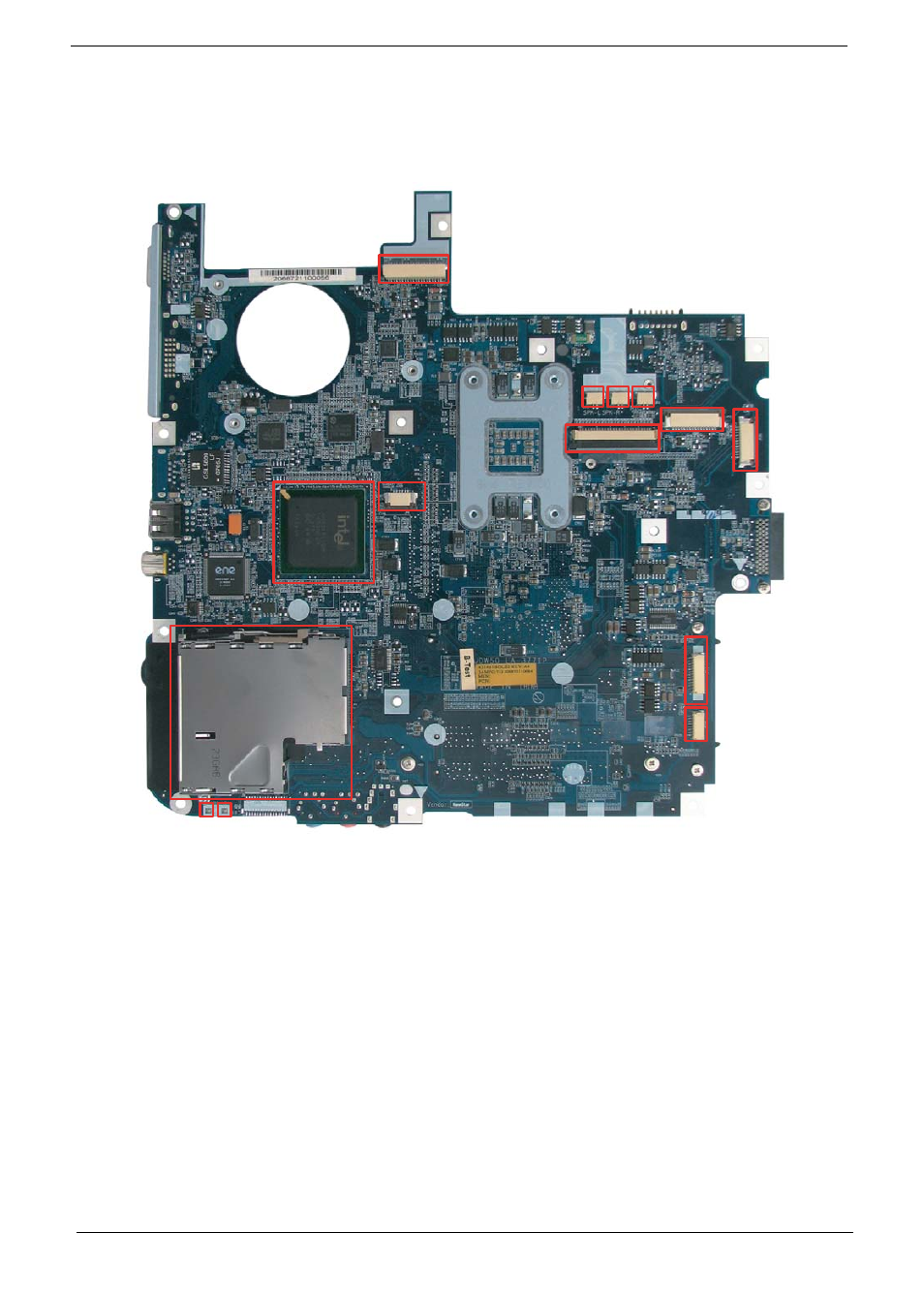

Board Layout
Top View
1 JP1 LCD Connector 8 JP2 Mainboard to Button Board
Connector
2 JP3 Speaker (Left) Connector 9 JP36 Mainboard to LED Board
Connector
3 JP34 Speaker (Right) Connector 10 JP9 PCI Express Card Socket
4 JP4 Internal MIC Connector 11 LED1 Power/Suspend LED
5 U5 South Bridge (ICH7M) 12 LED2 Battery Charge/Discharge LED
6 JP6 Internal Track-Pad Connector 13 JP11 Mainboard to USB Board
Connector
7 JP5 Internal Keyboard Connector 14 JP12 Bluetooth Module Connector
