Chapter 3
Removing the Wireless LAN Card/the HDD Module/the Memory/the
ODD Module and the LCD Module
Removing the Memory and the HDD Module

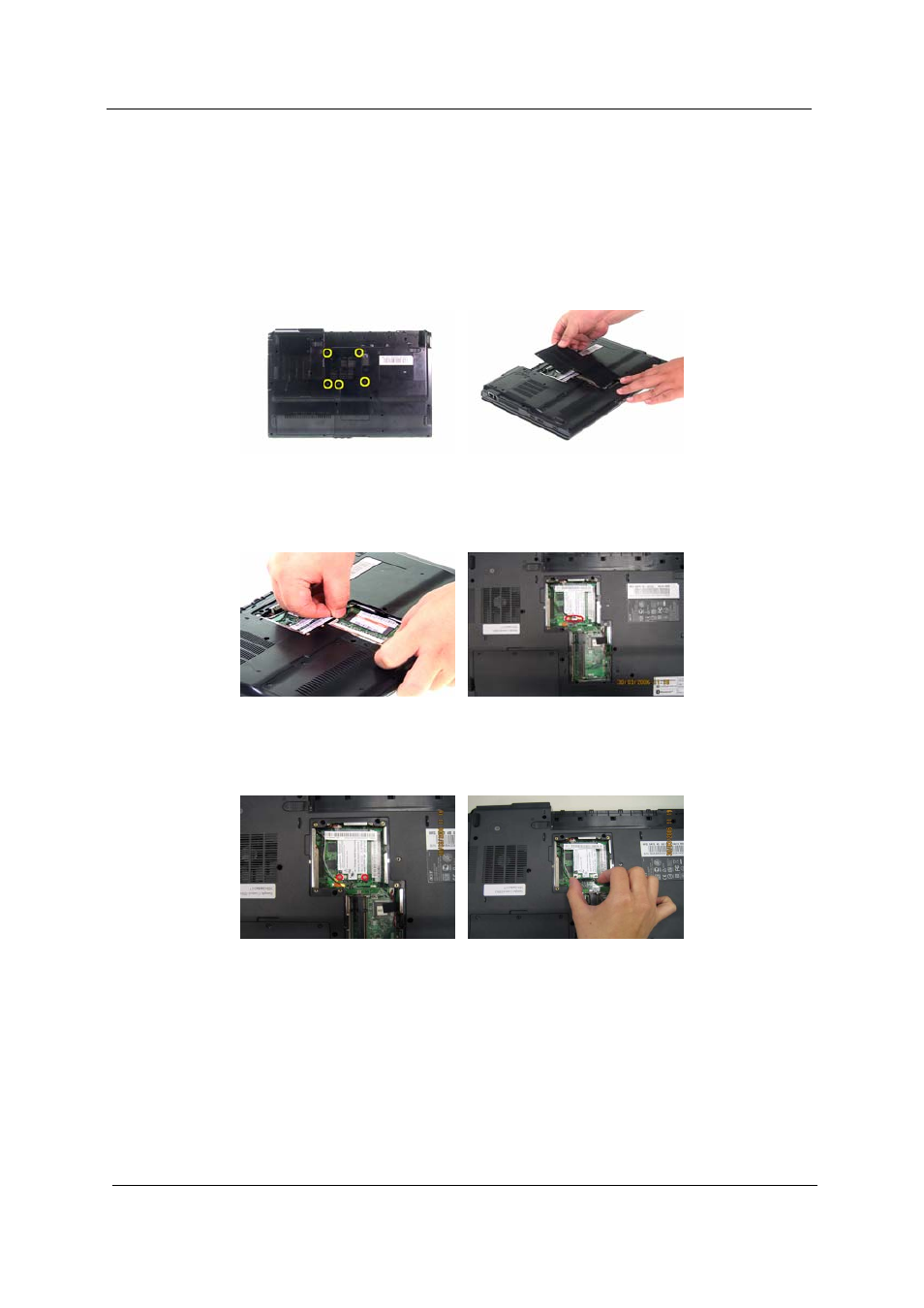

1.
Remove the five screws fastening the DIMM cover.
2.
Detach the DIMM cover carefully.
3.
Pop out the memory carefully.
4.
Disconnect wireless main and auxiliary antenna from the wireless LAN card.
5.
Remove the two screws fastening the wireless LAN card.
6.
Then take out the wireless LAN card from the main unit.
7.
Remove the three screwss fastening the HDD cover.
8.
Detach the HDD cover from the main unit.
