Page 16
10
Chapter 1

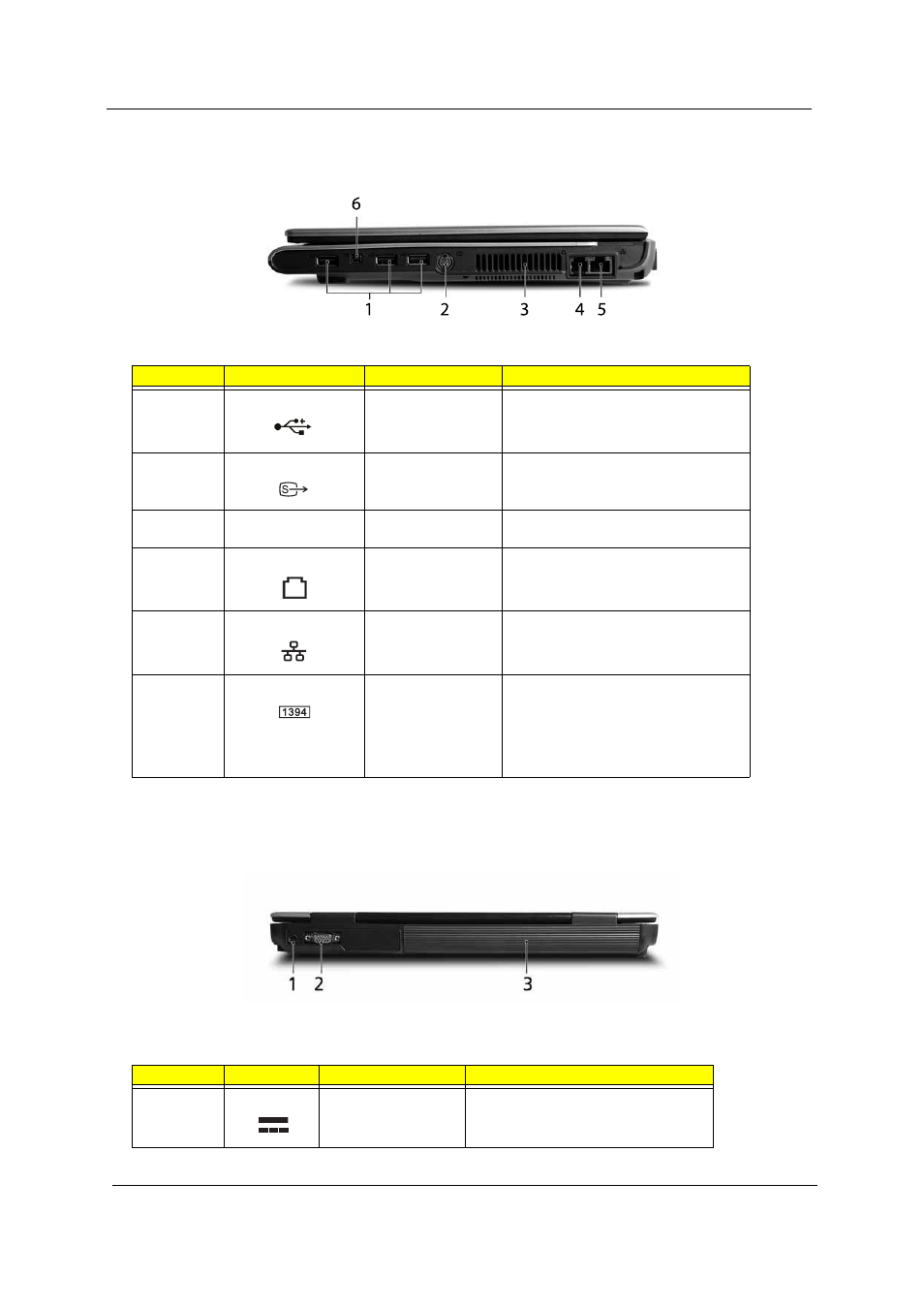

Right View
Rear Panel
#
Icon
Item
Description
1
Three USB 2.0 ports
Connect to USB 2.0 devices (e.g., USB
mouse, USB camera).
2
S-video/TV-out
(NTSC/PAL) port
Connects to a television or display device
with S-video input (for Aspire 5560).
3
Ventilation slots
Enable the computer to stay cool, even
after prolong use.
4
Modem (RJ-11) port
Connects to a phone line.
5
Ethernet (RJ-45)
Connects to an Ethernet 10/100/1000-
based network (1000 Mbps for Aspire
5560).
6
4-pin IEEE 1394 port
Connects to IEEE 1394 devices (for Aspire
5560).
Note: A 4-pin socket is used for laptop. The
6-pin socket is commonly found on
desktop. As to 9-pin connector, it is for the
faster FireWire 800.
#
Icon
Item
Description
1
DC-in jack
Connects to an AC adapter.
#
Icon
Item
Description
#
Icon
Item
Description
