Sony PMC-R30L - Manual (Page 25)

Setting Up
25 GB
Setting Up
Setting Up
Hooking up the
system
Make sure you turn off
the power before
making any
connections.

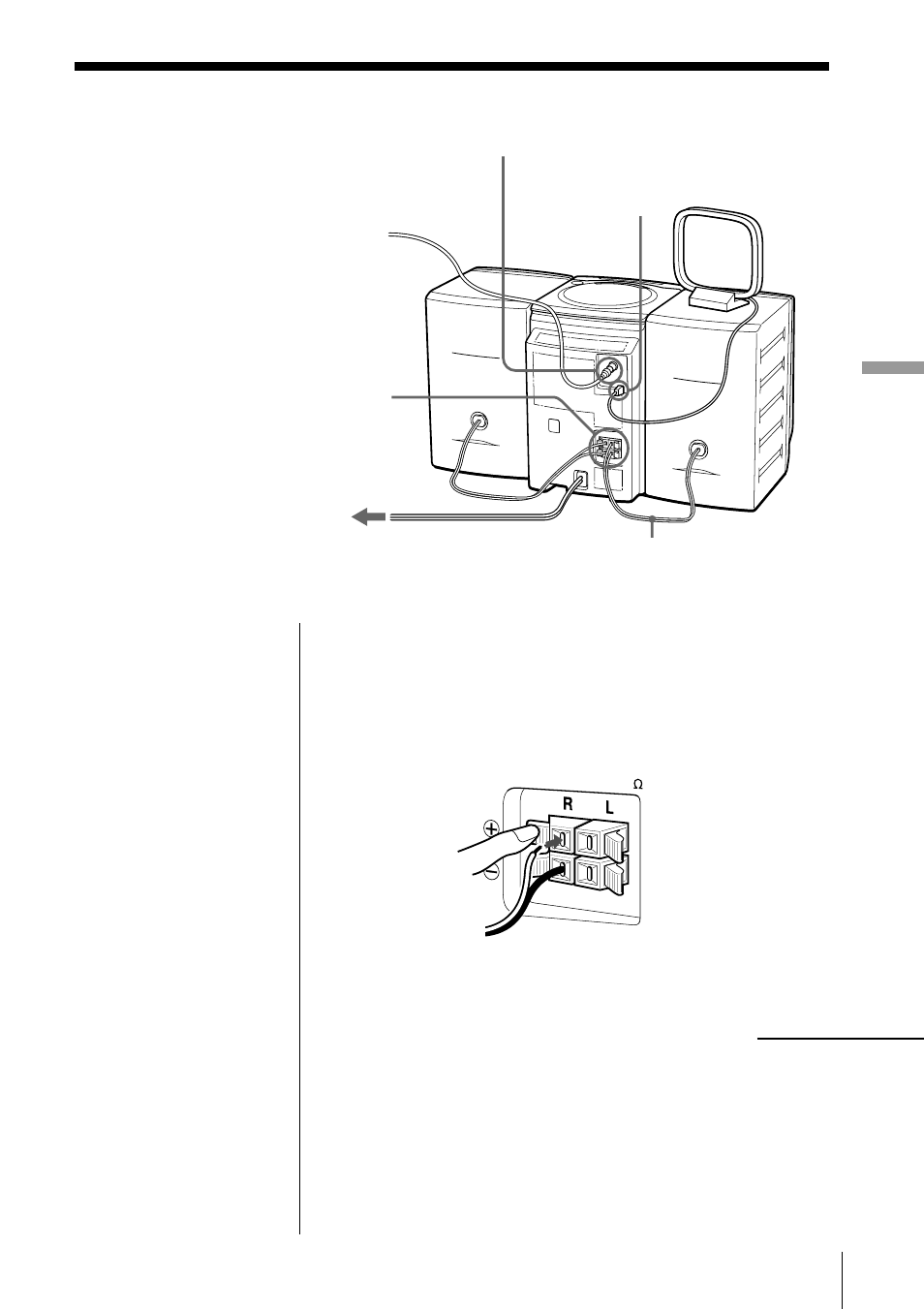

1 Hooking up the speakers
Connect the black wire to (–) minus and the red wires
to (+) plus terminals: the right speaker wires to the R
and the left speaker wires to the L terminals.
Note
Connect the supplied
speakers to this player.
If you connect any
other speakers or
equipment, a
malfunction may occur.
3
To a wall outlet
1
Speaker
terminals
MW/LW loop
aerial
2
FM aerial terminal
Speaker cord
Right speaker
Left speaker
FM aerial
continued
SPEAKER IMP USE 3
2
MW/LW
aerial terminal
