For Your Information
23
EN
Frequency response
180 Hz – 20 kHz
Dimensions Approx. 110
Ч
185
Ч
100 mm (w/h/d) (per
speaker, incl. front grille)
Approx. 120
×
130 mm
(w/d) (pedestal)
Mass Approx. 1.8 kg per speaker
with speaker stand
Superwoofer SS-W33D
Speaker system
Full range
Speaker units 13 cm dia., cone type
Enclosure type Bass reflex type
Rated impedance
6 ohms
Frequency response
40 – 180 Hz
Dimensions Approx. 225 Ч 210 Ч
295 mm (w/h/d) incl.
front grille
Mass Approx. 4.8 kg
Supplied accessories
AM loop aerial (1)
Remote (1)
Sony SUM-3 (NS) batteries (2)
FM lead aerial (1)
Speaker cords (3)
Supporter (1)
Cord holders (2)
Wrench (1)
General
Power requirement
Australian model:
240 V AC, 50/60 Hz
Other models:
110 – 120 V or 220 – 240 V
AC, 50/60 Hz
Adjustable with the voltage
selector
Power consumption
85 W
Dimensions Approx. 225
Ч
210
Ч
235 mm (w/h/d) incl.
projecting parts and
controls
Mass Approx. 4.8 kg
Design and specifications are subject to
change without notice.
AM tuner section
Tuning range
For Latin-American model:
AM: 531 – 1,710 kHz (with
the tuning interval set at
9 kHz)
530 – 1,710 kHz (with the
tuning interval set at
10 kHz)
For Australian model:
AM: 531 – 1,602 kHz (with
the tuning interval set at
9 kHz)
530 – 1,710 kHz (with the
tuning interval set at
10 kHz)
For other models:
MW: 531 – 1,602 kHz (with
the tuning interval set at
9 kHz)
530 – 1,710 kHz (with the
tuning interval set at
10 kHz)
SW: 5.95 – 17.90 MHz
Aerial AM loop aerial
External aerial terminals
Intermediate frequency
450 kHz
Tape player section
Recording system
4-track 2-channel stereo
Frequency response
(DOLBY NR OFF)
40 – 13,000 Hz (±3 dB),
using Sony TYPE I cassette
40 – 14,000 Hz (±3 dB),
using Sony TYPE II cassette
Wow and flutter
0.1% WRMS ±0.3% (DIN)
Amplifier section
Peak music power output
600 W
Continuous RMS power output
Satellite:
10 W + 10 W (4 ohms at
1 kHz, 10% THD)
Superwoofer: 35 W (6 ohms at
60 Hz, 10% THD)
Inputs
MD IN:
Sensitivity 450 mV,
impedance 47 kilohms
Outputs
MD OUT:
Sensitivity 250 mV,
1kilohms
PHONES (stereo phone jack):
accept headphones of
8 ohms or more.
Speaker section
Satellite speaker SS-S33D
Speaker system
Full range
Speaker units 6 cm dia., cone type
Enclosure type Closed type (with supplied
speaker stand)
Rated impedance
4 ohms

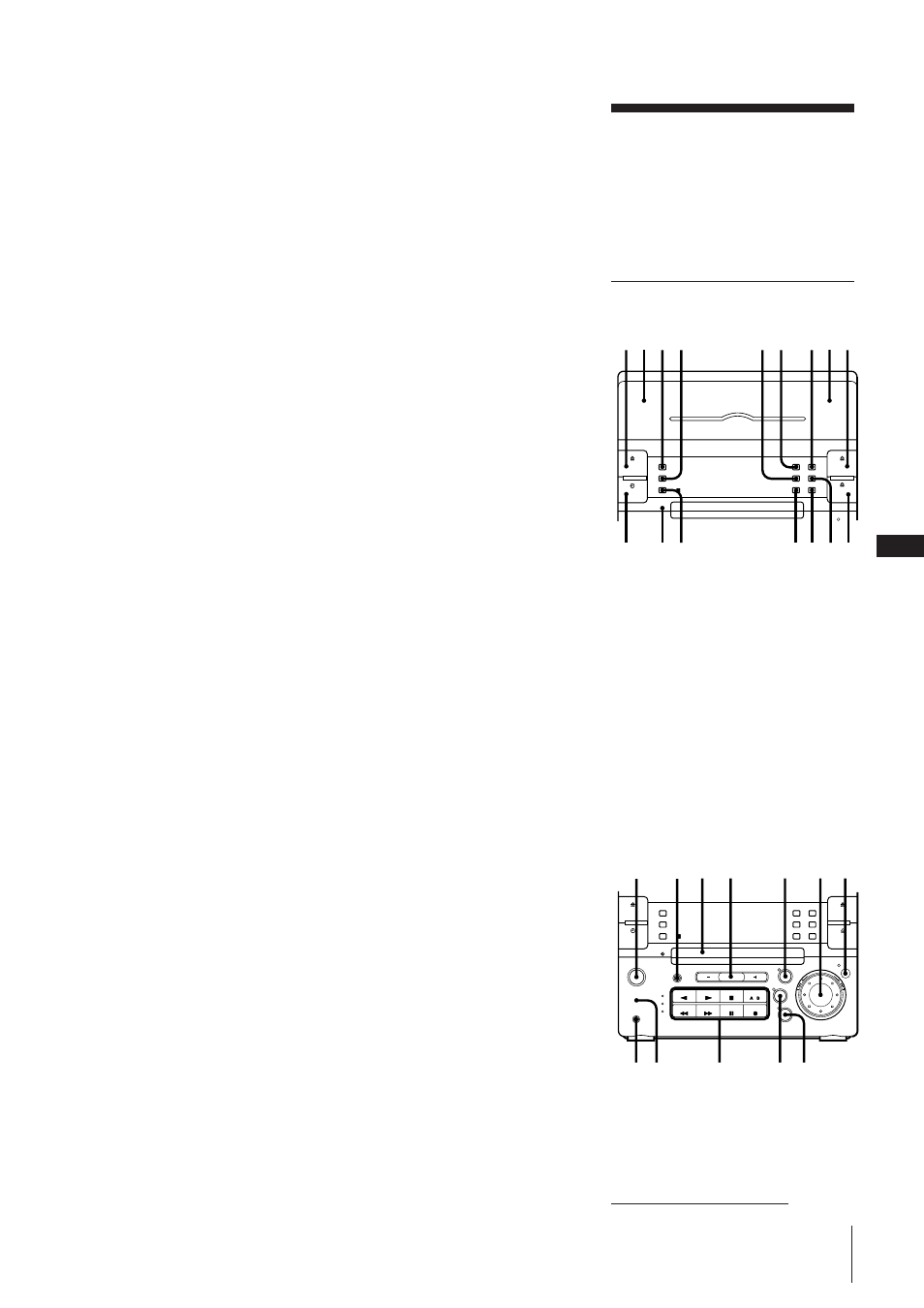

Index to Parts and
Controls
Refer to the pages indicated in parentheses
for how to use the controls.
Front Panel
1 2 3 5 6 7 9 8
!¡ !™ !£!¢ !∞ !§ !º
4
1 § EJECT DECK A button (12)
2 DECK A (12)
3 DISPLAY button (6, 7)
4 SLEEP button (18)
5 CD CYNCHRO button (13)
6 DOLBY NR button (12)
7 DIRECTION MODE button (12)
8 DECK B (13)
9 § EJECT DECK B button (13)
!º TIMER SELECT button (19)
!¡ CLOCK SET button (6)
!™ TIMER SET button (18)
!£ PLAY MODE button (8, 14)
!¢ REPEAT button (9)
!∞ HI-SPEED DUBBING button (15)
!§ § OPEN/CLOSE CD button (7)
@¢
=
+
!¶ !• !ª @º @¡ @™ @£
@§ @¶ @• @∞
!¶ SYSTEM POWER ON/STANDBY
button (19)
!• FUNCTION button (13)
