Step 1: Connecting the System and TV

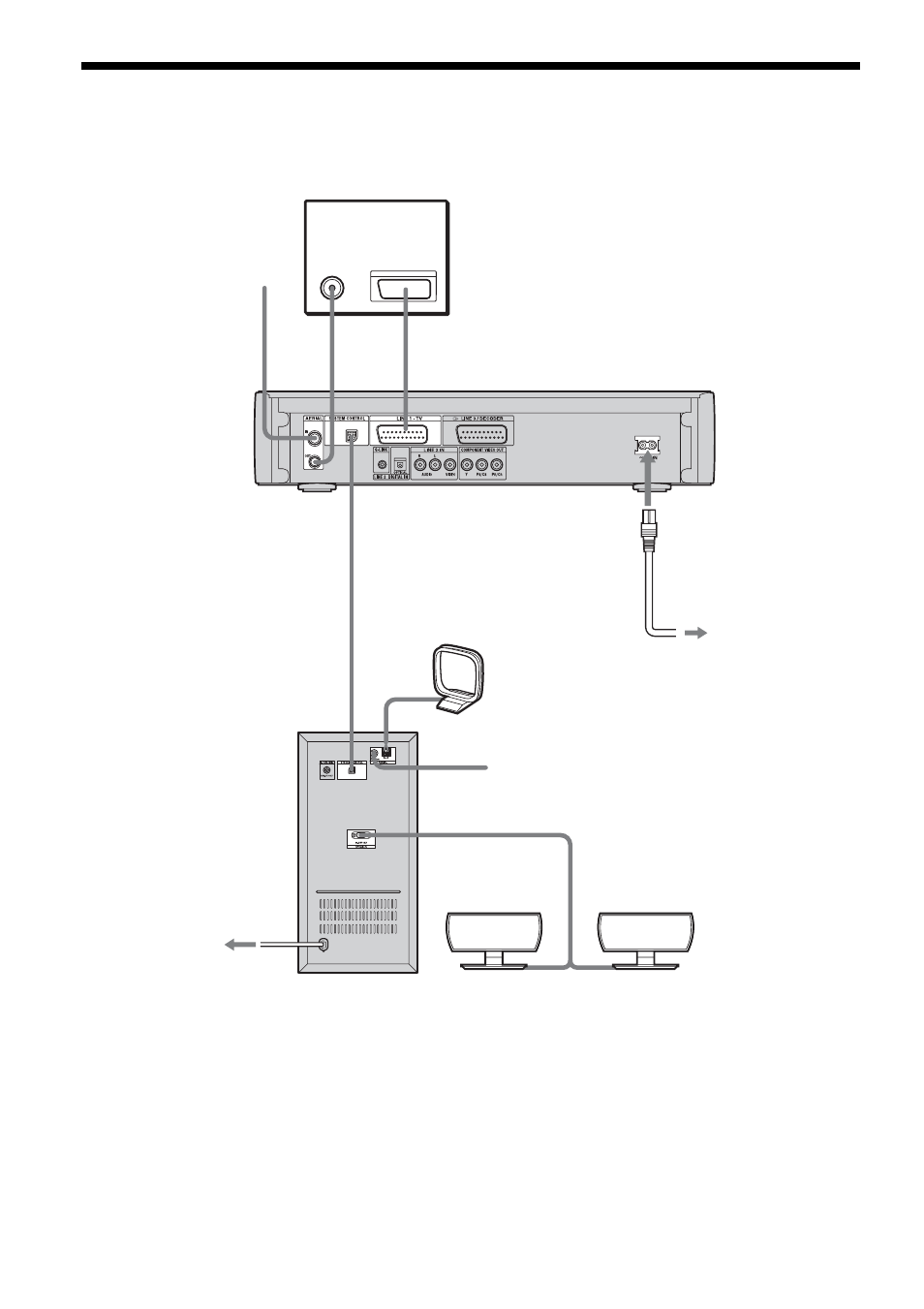

This hookup is the basic connections of the system to the speakers and TV. For other TV connections, see
page 30. For other component connections, see page 38.
DVD recorder
TV
3 Connecting the subwoofer
and recorder (page 19)
AM loop aerial
FM wire aerial
Front speakers Subwoofer
to AC IN
to mains
to mains
1 Assembling and connecting
the front speakers (page 15)
2 Connecting the AM/FM aerials
(page 18)
6 Connecting the
mains lead (page 22)
6 Connecting the
mains lead (page 22)
4 Connecting the
aerial cable (page 20)
5 Connecting the TV (page 21)
