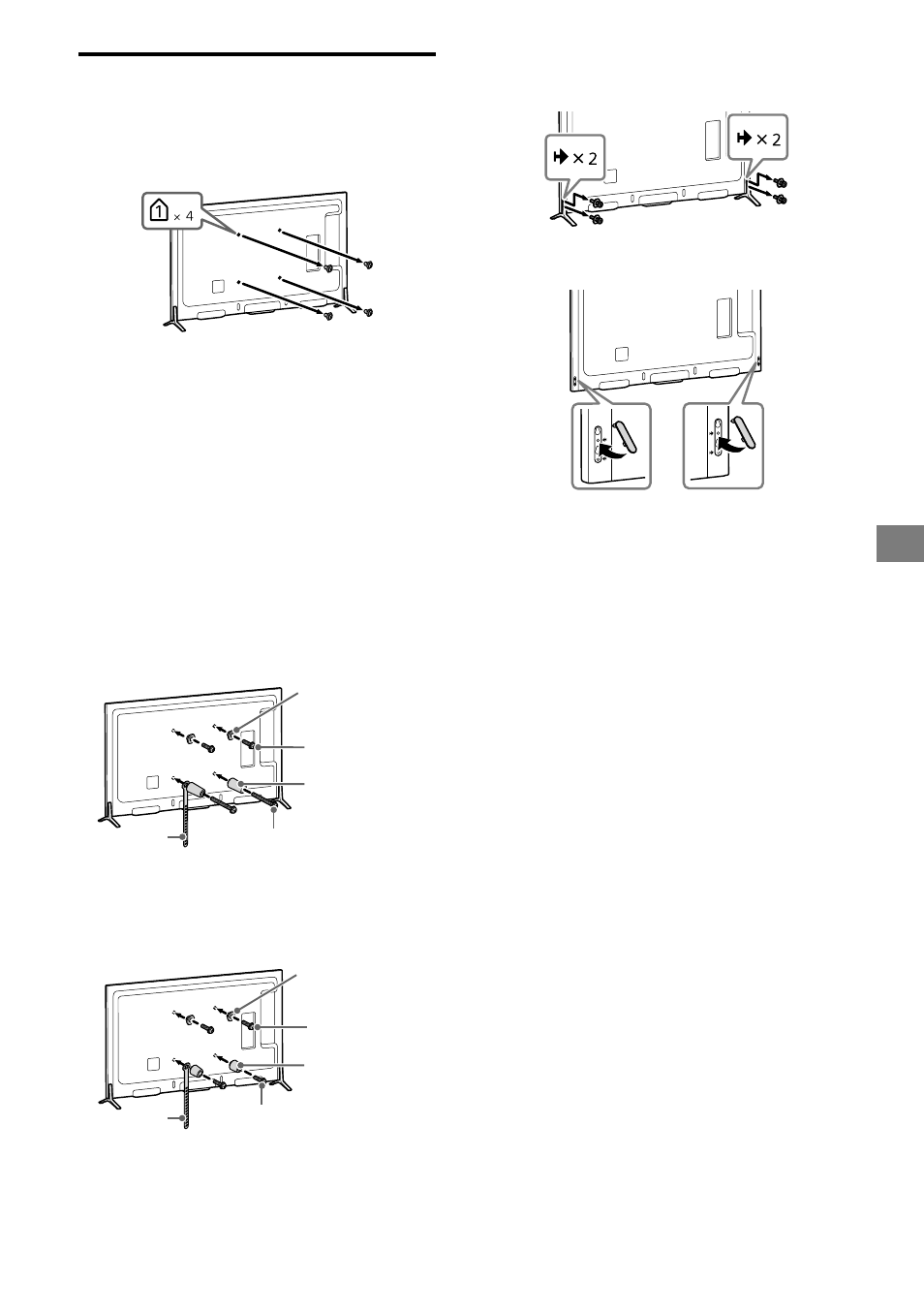

Preparing for the installation
of the TV
1
Remove the screws from the
rear of the TV.
2
Attach the Attachment parts for
Wall-Mount Bracket. Check the
Attachment parts by referring to
“Supplied with SU-WL450” in
“Checking the parts” on page
5.
Note
Firmly secure the Attachment parts using screws.
When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
Be sure to store the unused parts in a safe place for
future use. Retain this manual for future reference.
Standard mounting (2-a)
Belt
Spacer
(60 mm)
Screw (+PSW 6 x 50)
Pulley
Screw
(+PSW 6 x 20)
Slim mounting (2-b)
Belt
Screw (+PSW 6 x 20)
Pulley
Spacer (20 mm)
Screw
(+PSW 6 x 20)
3
Detach the Table-Top Stand
from the TV.
4
Attach the stand cover.
