Deciding on the installation location
1
Decide on the installation location.
Make sure that the wall has enough space for the TV and is capable of supporting a weight of at
least four times that of the TV.

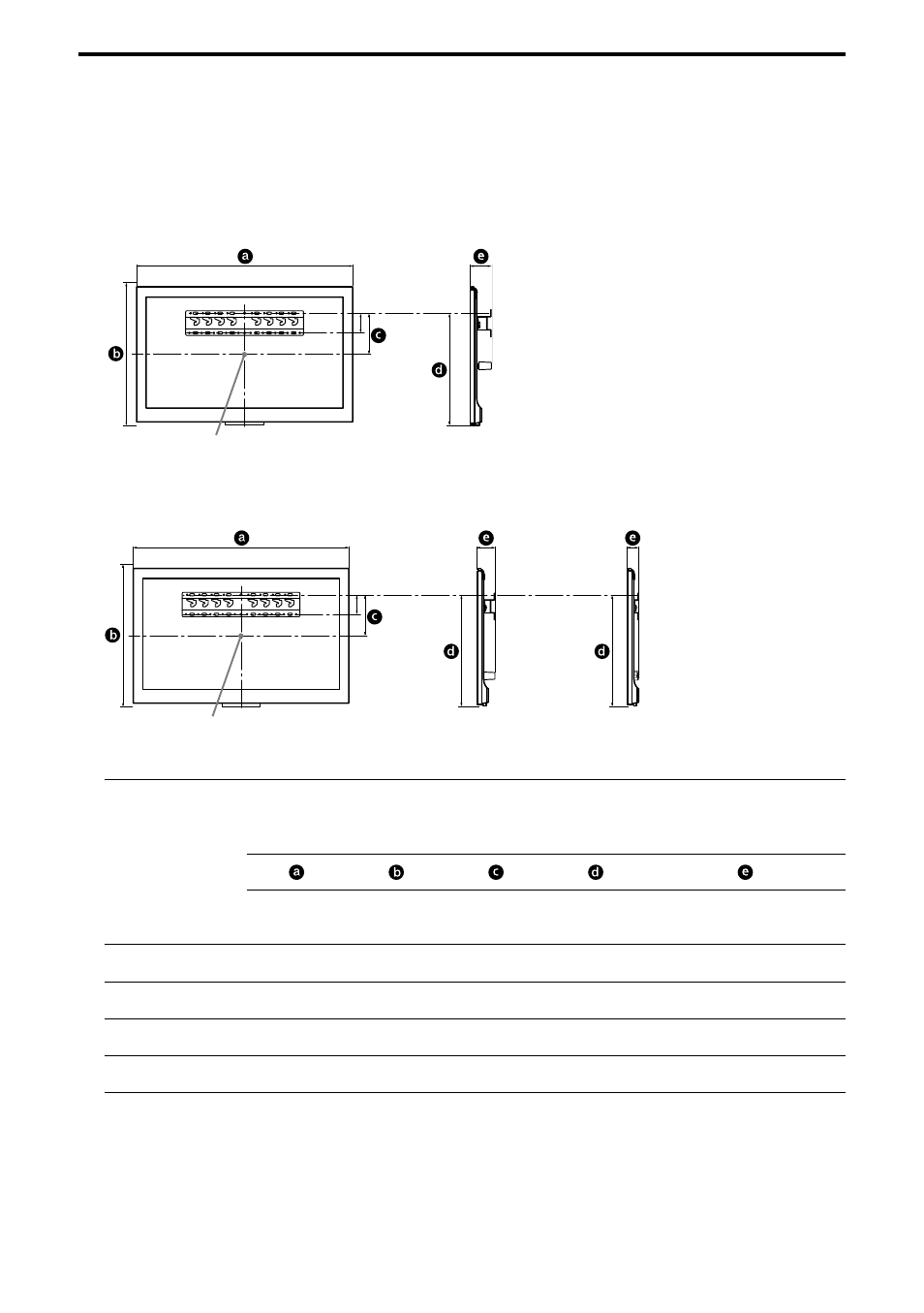

Refer to the following table on installing the TV to the wall. Refer to your TV’s Reference Guide
for the TV's weight.
KD-70X850 B
Standard mounting
Screen centre point
80
KD-65X850 B/55X850B/49X850B
Standard mounting Slim mounting
Screen centre point
80
Unit: mm
Model Name
KD-
Display dimensions
Screen
centre
dimension
Length for mounting
Standard
mounting
Slim
mounting
70X850 B 1,572 938 147 616 109 -
65X850 B 1,448 865 171 605 113 72
55X850 B 1,232 741 171 543 113 72
49X850 B 1,094 664 191 525 122 80
Note
 Figures in the table may differ slightly depending on the installation.
