− 7 (GB) −
GB

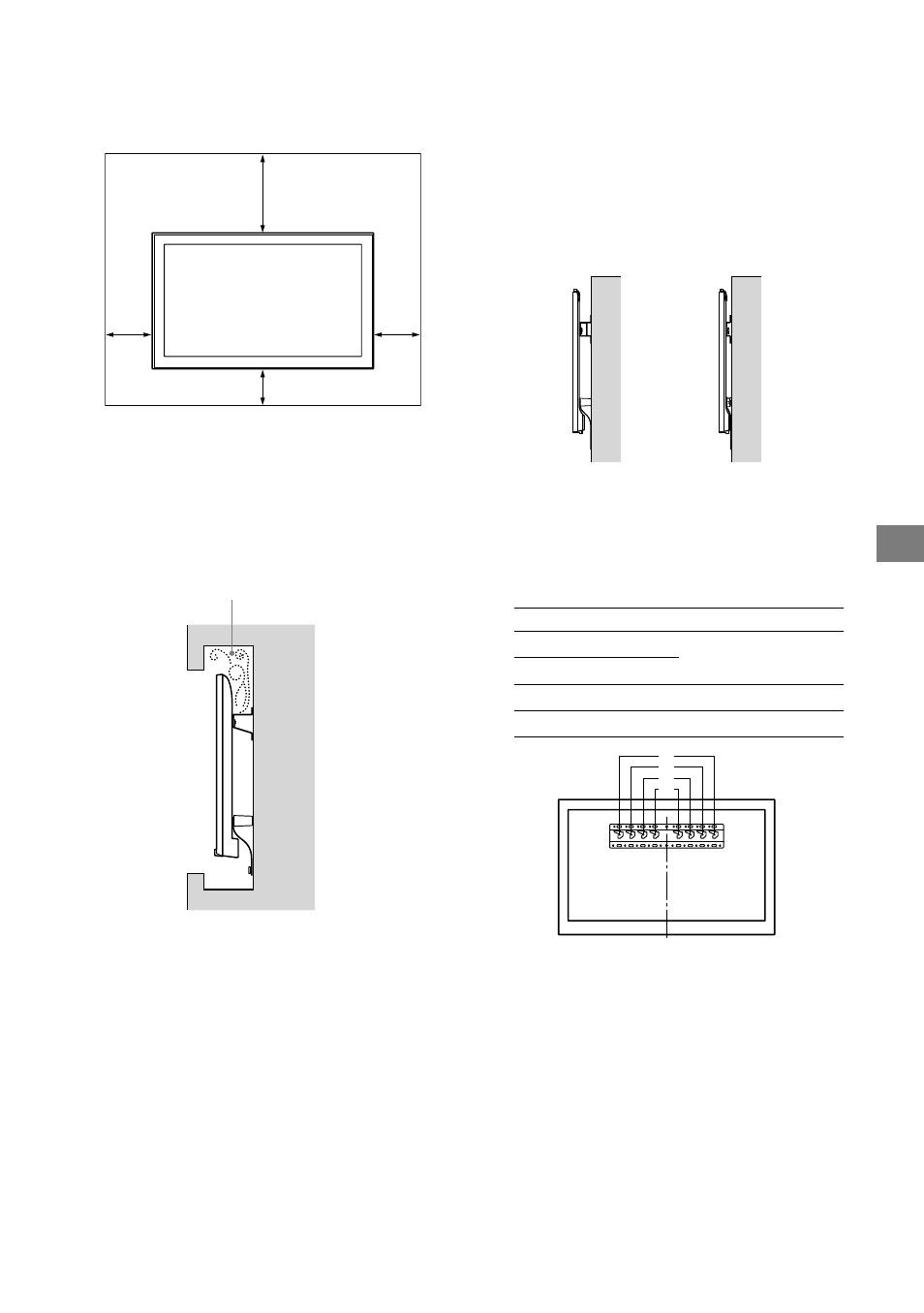

Allow for suitable clearance between the
TV and the ceiling and protruding parts of
the wall as shown below.
Unit: mm
300
100
100 100
 To ensure proper ventilation and prevent the
collection of dirt or dust:
ˋ Do not lay the TV set flat, install upside down,
backwards, or sideways.
ˋ Do not place the TV set on a shelf, rug, bed or in a
closet.
ˋ Do not cover the TV set with a cloth, such as
curtains, or items such as newspapers, etc.
ˋ Do not install the TV set as shown below.
Air circulation is blocked.
Wall
Note
 If you intend to route the cables in the wall, make a
hole in the wall to insert the cables before beginning
the installation.
To prevent pinching the cables, prepare a hole in the
wall somewhere outside the perimeter of the Base
(20)
, Base Adaptor  and Spacer (20) , Spacer
(60) .
2
Select Wall mounting style. It is
selectable as shown below.
2-a Standard mount
2-b Slim mount (KD-70X850 B
is not available)
Refer to the table of step 1.
WARNING
 When 2-b is selected, Rear terminal access is limited.
2-a 2-b
3
Refer to the below table about
the Base Adaptor fitting
location. In case of selecting
2-b, then skip this step.
Model Name KD- Hook location
70X850 B
a
65X850 B
55X850 B b
49X850 B c
a
d
b
c
