4.1.3 Alarm Recording
Take the following steps to activate the programmed alarm recording. For ALARM settings, please
refer to section 5.6.1 for more details.
(1) Press the menu button
to enter the MAIN MENU.
(2) Select the ADVANCED SETTING and press the Enter button
to enter the ADVANCED
SETTING page.
(3) Select the ALARM SETTING and press the Enter button
to enter the ALARM SETTING
page.
(4) Set the desired time period. The options range from "TRANSPARENT" to "NONSTOP", from
one second to 60 minutes.
(5) Set the alarm record rate.
(6) Set the alarm record mode.
(7) Set the alarm record quality.
(Please refer to section 5.6.1 for more information.)
(8) Set to a "SENSITIVITY" of from 0.1 to 0.8 seconds
(9) Enter and set each channel to activate or deactivate the three modes of "SENSOR", "V LOSS",
and "ACTIVE" in the ALARM TYPE LINK and ALARM OUT LINK items.
NOTE: The “ALARM OUT LINK” page has an item, namely “START RECORD”. Change it to
“ON” under “ACTIVE” to start alarm recording.

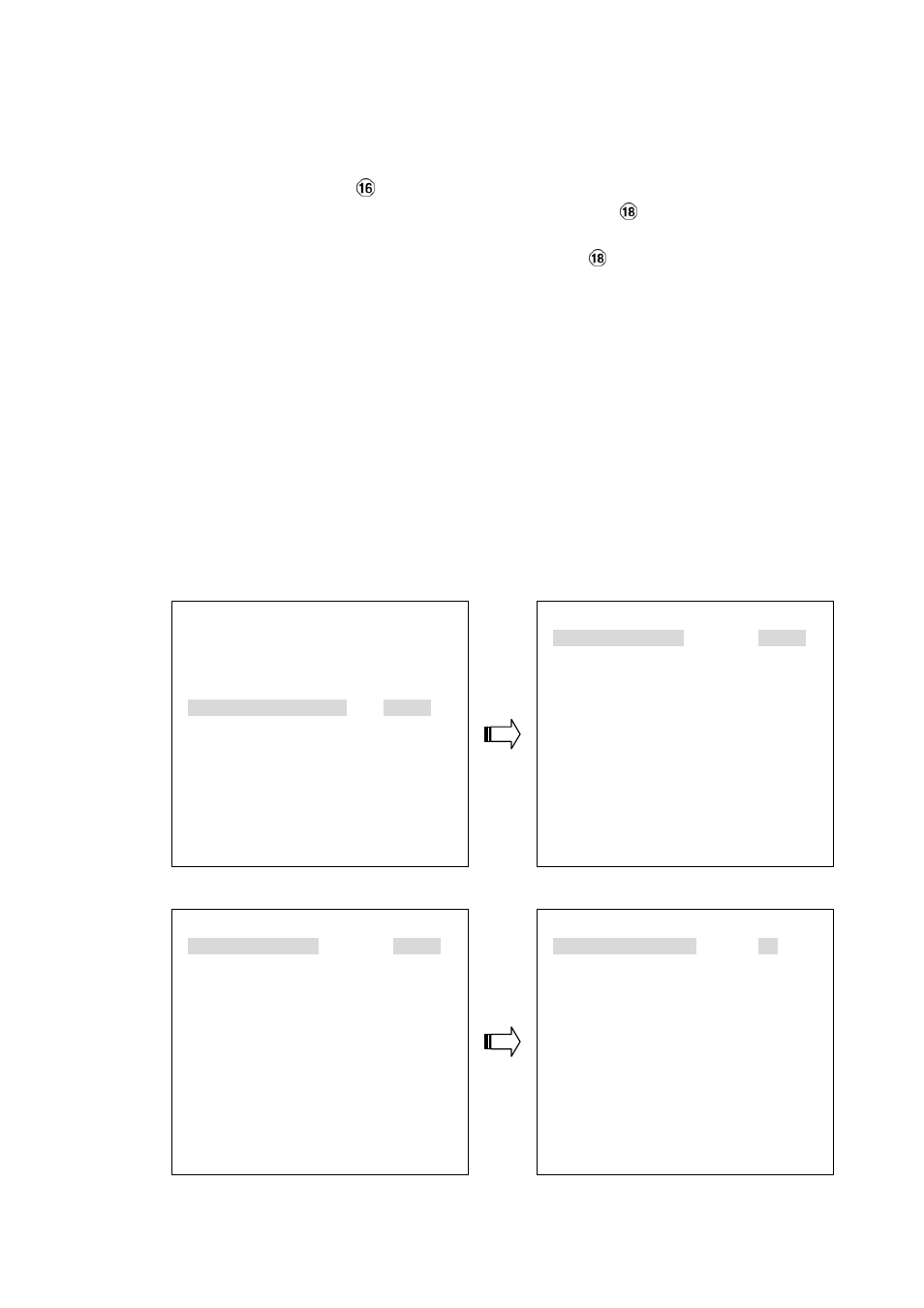

MAIN MENU
1 QUICK SETTING:
ENTER
2 DISPLAY OPTION:
ENTER
3 SEQUENCE SETTING:
ENTER
4 PICTURE ADJUST:
ENTER
5 OPERATION LOG:
ENTER
6 ADVANCED SETTING:
ENTER
7 DEFAULT SETTING:
ENTER
8 PASSWORD SETTING:
ENTER
9 EXIT MENU:
ENTER
enter: select
▲
/▼/jog/ch1~9: item
ADVANCED SETTING
1 ALARM SETTING:
ENTER
2 RECORD SETTING:
ENTER
3 MOTION SETTING:
ENTER
4 CAMERA COVERT:
ENTER
5 OPERATION LOCK:
ENTER
6 COMMUNICATION:
ENTER
7 DISK SETUP:
ENTER
8 SCHEDULE:
ENTER
RETURN
menu: exit
enter: select
▲
/▼/jog/ch1~8: item
ADVANCED SETTING
1 ALARM SETTING:
ENTER
2 RECORD SETTING:
ENTER
3 MOTION SETTING:
ENTER
4 CAMERA COVERT:
ENTER
5 OPERATION LOCK:
ENTER
6 COMMUNICATION:
ENTER
7 DISK SETUP:
ENTER
8 SCHEDULE:
ENTER
RETURN
menu: exit
enter: select
▲
/▼/jog/ch1~8: item
ALARM SETTING
1 ALARM DURATION:
30 SEC
2 DISK FULL ALERT:
ON
3 PREALARM:
OFF
4 ALARM RECORD RATE:
60 F/S
5 ALARM RECORD MODE:
ENTER
6 ALARM RECORD QUALITY: ENTER
7 SENSOR TYPE:
ENTER
8 ALARM INPUT LINK:
ENTER
9 ALARM OUT LINK:
ENTER
RETURN
menu: exit
enter: select
shuttle: value
▲
/▼/jog/ch1~9: item
