1. RECORD QUALITY:
You can enter and set each channel's record quality at 4 different levels of image recording from
"BEST","HIGH", and "STANDARD" to "BASIC".
2. NORMAL RECORD RATE:
The rate range is from 1 field per second (F/S) to 60 F/S.
3. AUDIO SAMPLING RATE:
This item has 4 options: "44K Hz", "22K Hz", "8K Hz", and "DISABLE".
4. AUDIO CHANNEL MODE
The options here are "STEREO" ( two channels with the same input ), and "LEFT INPUT" and
"RIGHT INPUT" ( two channels that work separately ).
5. RETURN
Go back to the previous page.
5.6.3 MOTION SETTING
Here you can set the motion detection area of each channel.
1. SENSITIVITY:
Use the shuttle to move the sensitivity bar and change the focus left to right.
2. TARGET ZONE:
With "AUTO" or "MANUAL" setting.
3. TRACK DETECT:
Ranging from "UP" and "DOWN" to "LEFT" and "RIGHT".
4. DURATION:
The rate of recorded image movements, ranging from 0.0 to 5.0 seconds.
5. SIZE:
Determine which size targets you want detected, ranging from 1H1W to 9H9W.
6. RETURN:
Go back to the previous page.
ADVANCED SETTING
1 ALARM SETTING: ENTER
2 RECORD SETTING: ENTER
3 MOTION SETTING: ENTER
4 CAMERA COVERT: ENTER
5 OPERATION LOCK: ENTER
6 COMMUNICATION: ENTER
7 DISK SETUP: ENTER
8 SCHEDULE: ENTER
RETURN
menu: exit
enter: select
▲
/▼/jog/ch1~8: item

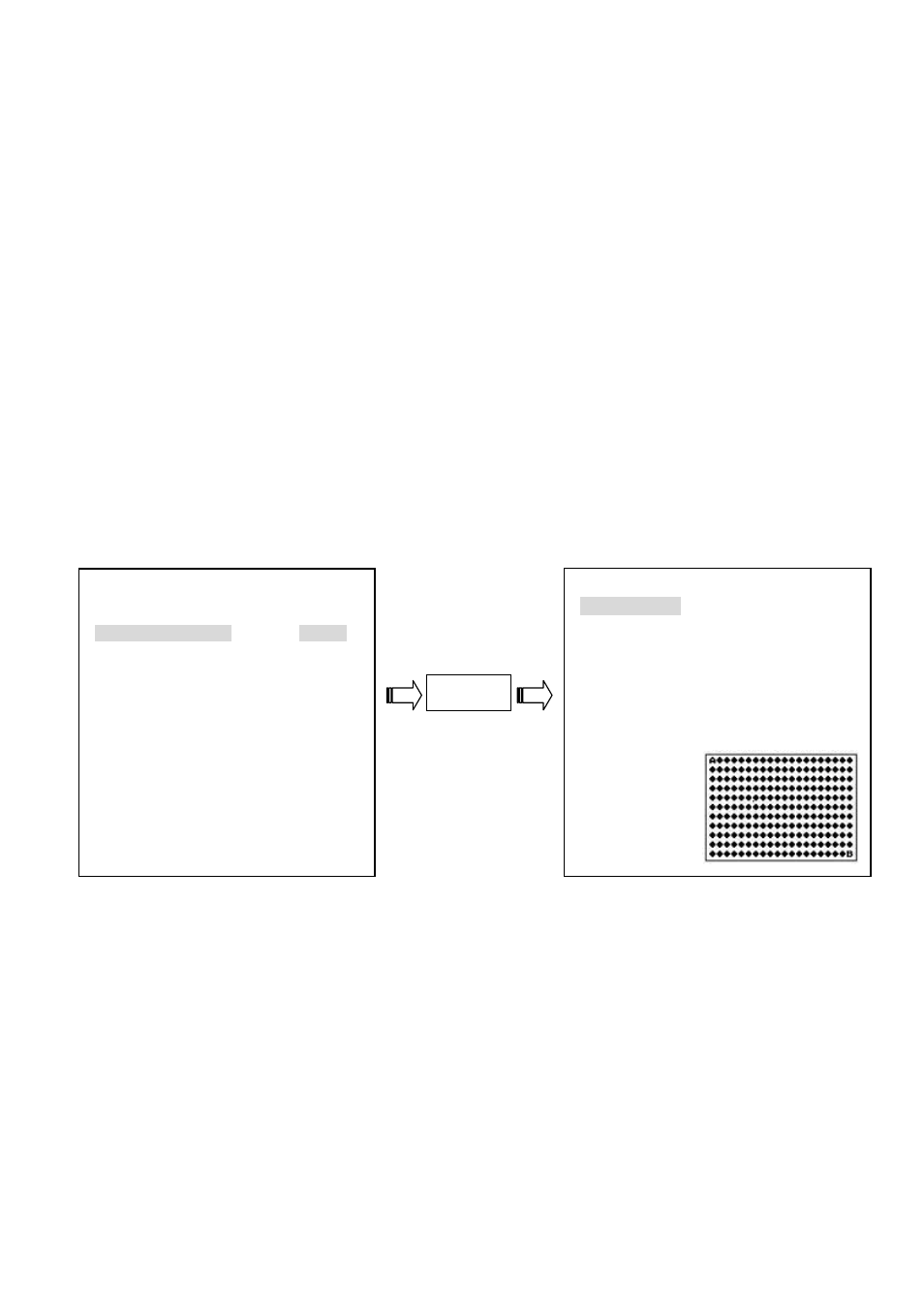

CH1 MOTION SETTING
1 SENSITIVITY: ○ --------◘---------♁
2 TARGET ZONE: MANUAL
3 TRACK DETECT: OFF
4 DURATION: 0.0 SEC
5 SIZE: 1H1W
RETURN
menu: exit
shuttle: value
jog/ch1~5: item
enter: en/disable
call + ▲/▼/ ◄ / ►:
set A dot
seq + ▲ /▼/ ◄ / ►:
set B dot
x: area disable
o: area enable
Select
channel
