ENGLISH

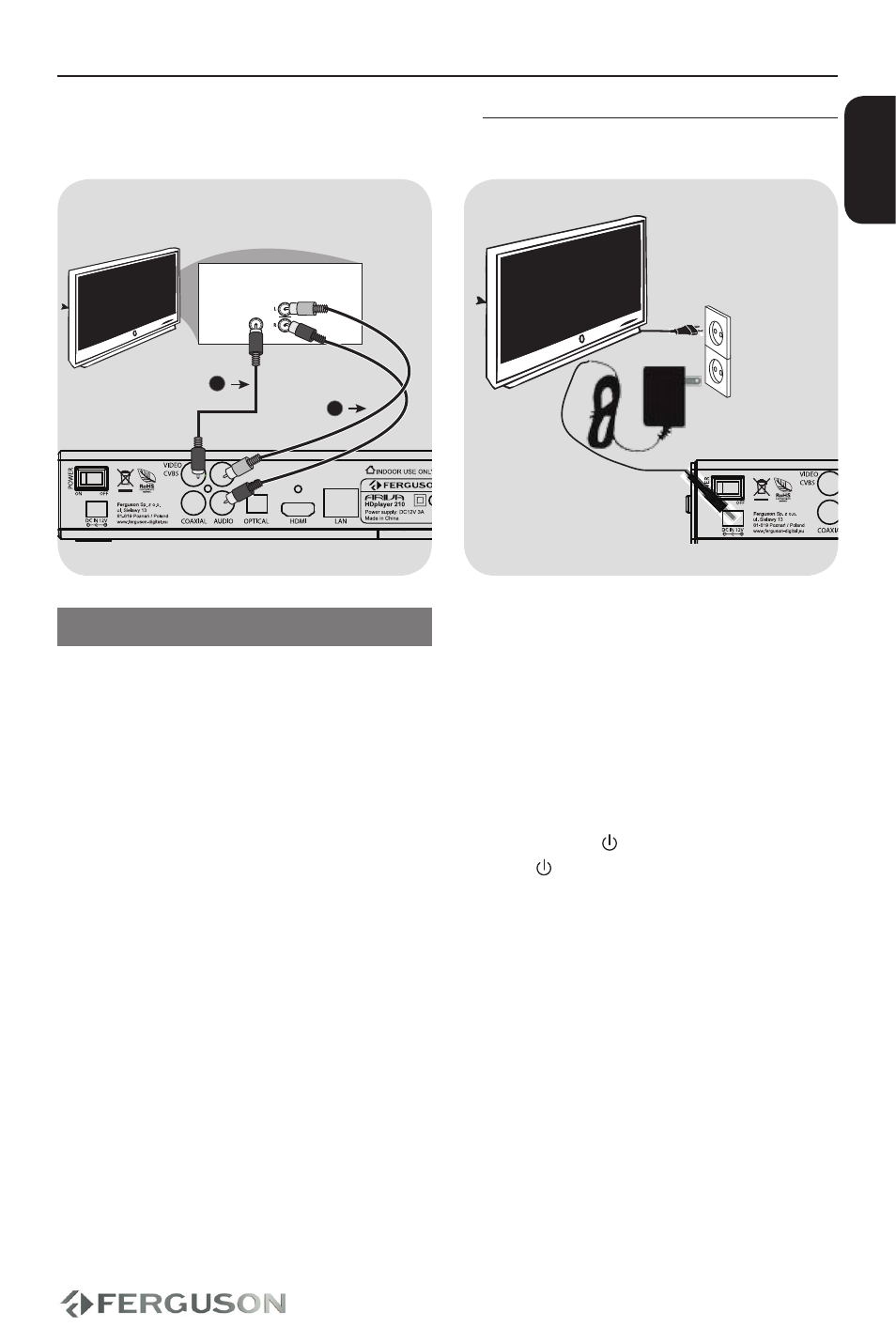

Using Composite Video Jacks (CVBS)
A
Use the composite video cable (yellow) to
connect the Ariva player’s CVBS(VIDEO)
jack to the video input jack (or the
labled as A/V in , Video In, Composite or
Baseband ) on the TV.
B
To hear the sound of this Ariva Player
through your TV, use the audio cables
(white/red) to connect AUDIO OUT
(L/R) jacks of the Ariva player to the
corresponding AUDIO IN jacks on the TV.
Connections
After everything is connected properly,
connect the power cable to the media
player’s DC connector, and then plug
the opposite end into an AC power
outlet. The media player powers up
automatically.
Never make or change any connections
with the power switched on.
Press POWER on the RCU. Standby-On
diode
will change color on the front
panel.
Connecting the power cord
