11 P/N 1010930 Rev. C 09/13
VERTICAL CONTACT TOASTER
MAINTENANCE (continued)

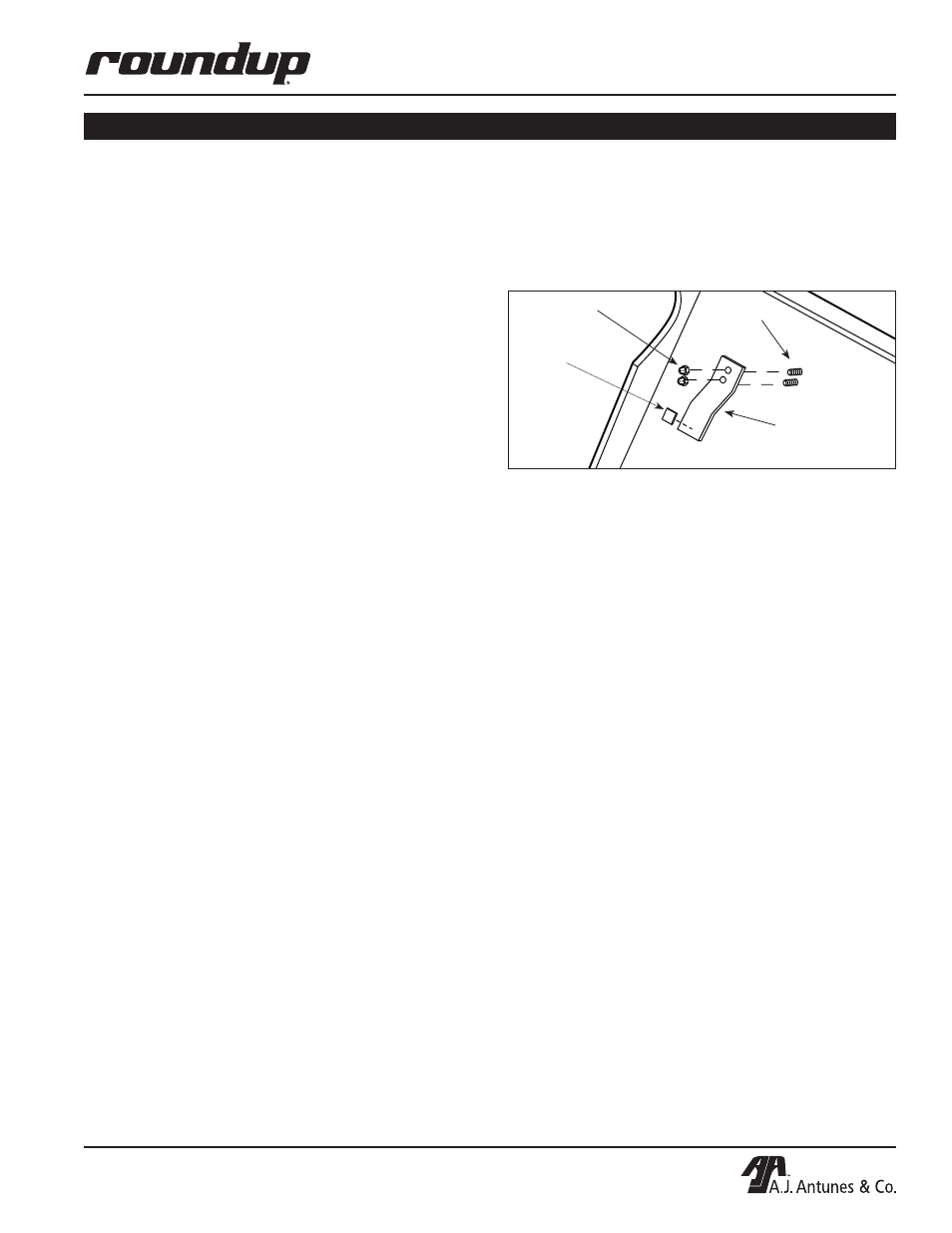

Figure 7. Replacing Spring Tensioner Assy.
Weld
Screws
Acorn Nuts
Spring
Tensioner
Assy.
Replacing the Spring Tensioners
1. Remove the Acorn Nuts (Figure 7).
2. Remove the old Spring Tensioner Assembly.
3. Replace Tensioner Assembly and reassemble
unit.
Tape
REPLACING CONVEYOR BELT CHAINS
1. Turn the power off, unplug the power cord, and
allow the unit to cool before proceeding.
2. Remove the Butter Wheel, Pan, and Heat Shield
and set the Compression Control Knobs to 6 & 6.
3. Open both Conveyor Covers.
4. Disconnect the Conveyor Belt Chain by squeezing
any two links together and unhooking both ends
of one link (Figure 6).
5. Place the replacement Conveyor Belt Chain on
the top sprockets with hook ends down.
NOTE: The ends of the hooks must point down
(Figure 6).
6. Wrap the Conveyor Belt Chain around the top
and lower sprockets and connect by hooking both
ends together.
NOTE: Make sure the Conveyor Belt Chain is
installed under the Upper Support Rod and over the
Lower Support Rod.
