American Dryer Corp. Direct Spark Ignition WDA-530DSi II - Manual (Page 29)

27
Telephone: (508) 678-9000 Fax: (508) 678-9447
Illus. No. Part No. Qty. Description
1 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
2 802800 1 Sail Switch Box with Cover and Bracket ONLY
(includes illus. nos. 4 and 8)
802801 1 Sail Switch Box Assembly Complete
(includes illus. nos. 2 through 10)
3 154004 1 Twin Speed Nut
4 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
5 802709 1 Sail Switch Box Cover and Bracket ONLY
6 122200 1 Sail Switch ONLY
7 150303 2 #4 x 3/4” Pan Head “A” Machine Screw
8 105500 1 Sail Switch Actuator Rod
9 319202 1 Sail Switch Damper (embossed)
10 154002 1 1/8” Push-On Fastener
11 853105 1 Burner Box ONLY

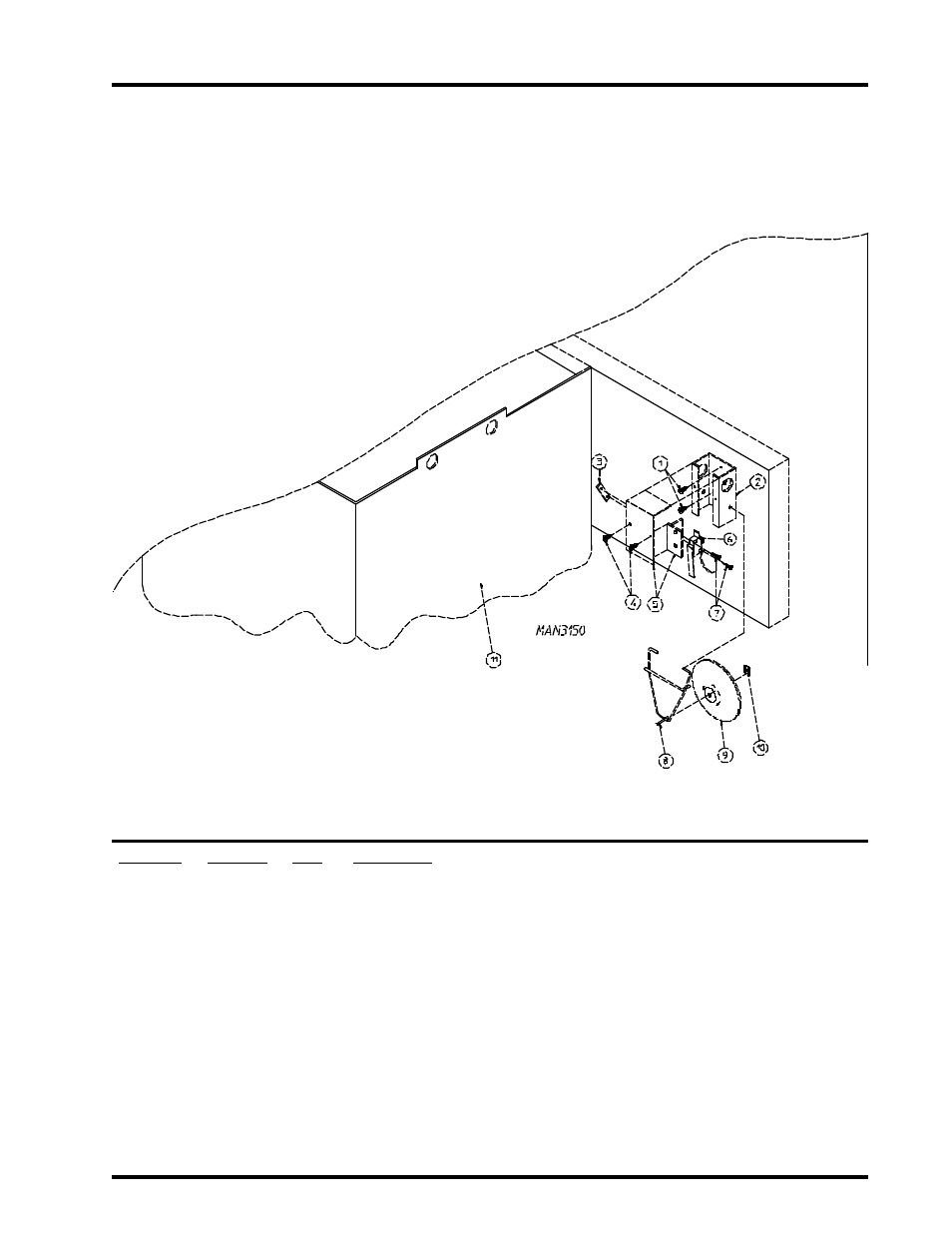

Sail Switch Assembly
