19
Telephone: (508) 678-9000 Fax: (508) 678-9447
Illus. No. Part No. Qty. Description
1 --------- 1 Basket (Tumbler) Support
(refer to Basket [Tumbler]/Support Assemblies on page 11)
2 101100 1 18” Pulley
- 154301 2 5/16-18 x 1” Allen (Cone Point) Setscrew
3 100713 1 1/4” x 1/4” x 7/8” Key
4 100106 1 5L-690 V-Belt
5 101206 1 2.8 x 5/8” Pulley
6 101129 1 9” x 2-1/2” Compound Pulley
7 --------- 1 Idler Assembly
(refer to Impellor [Fan]/Idler Bearing Assemblies on page 20
and page 21)
8 100171 1 4L-440 V-Belt
9 154301 2 5/16-18 x 1” Allen (Cone Point) Setscrew
10 101133 1 2-1/4” x 5/8” Pulley
11 100156 1 5L-330 V-Belt
12 101207 1 3.0 x 5/8” Pulley
13 --------- 1 Drive Motor Assembly
(refer to Drive Motor/Motor Mount Assemblies on page 18)
14 100718 1 3/16” x 3/16” x 2-1/4” Key

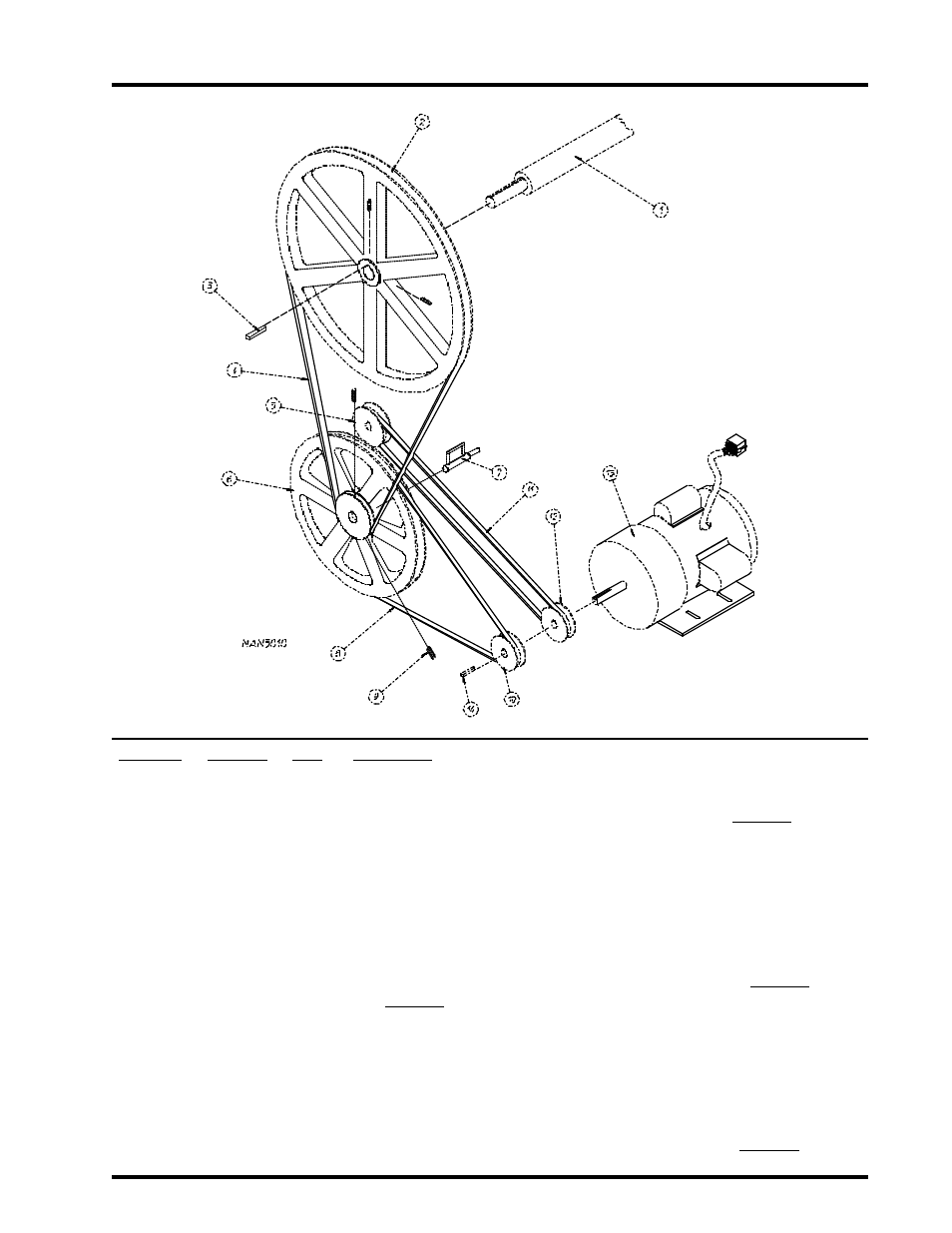

Drive/Idler Belts and Pulleys
For 60 Hz Models
