Illus. No. Part No. Qty. Description
1 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
2 826303 1 Lint Drawer Switch Panel
3 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
4 353261 1 Lint Drawer Switch Box
881494 1 Lint Drawer Switch Box Assembly
(includes illus. nos. 1, 2, and 4 through 9)
5 122116 1 Lint Drawer Switch
6 122636 2 .250 Insulated Flag Terminal
7 122701 4 Socket Terminal ONLY
112801 Pins/Socket Extraction Tool
8 122605 2 4-Pin Socket Connector
9 881502 1 Lint Drawer Switch Harness

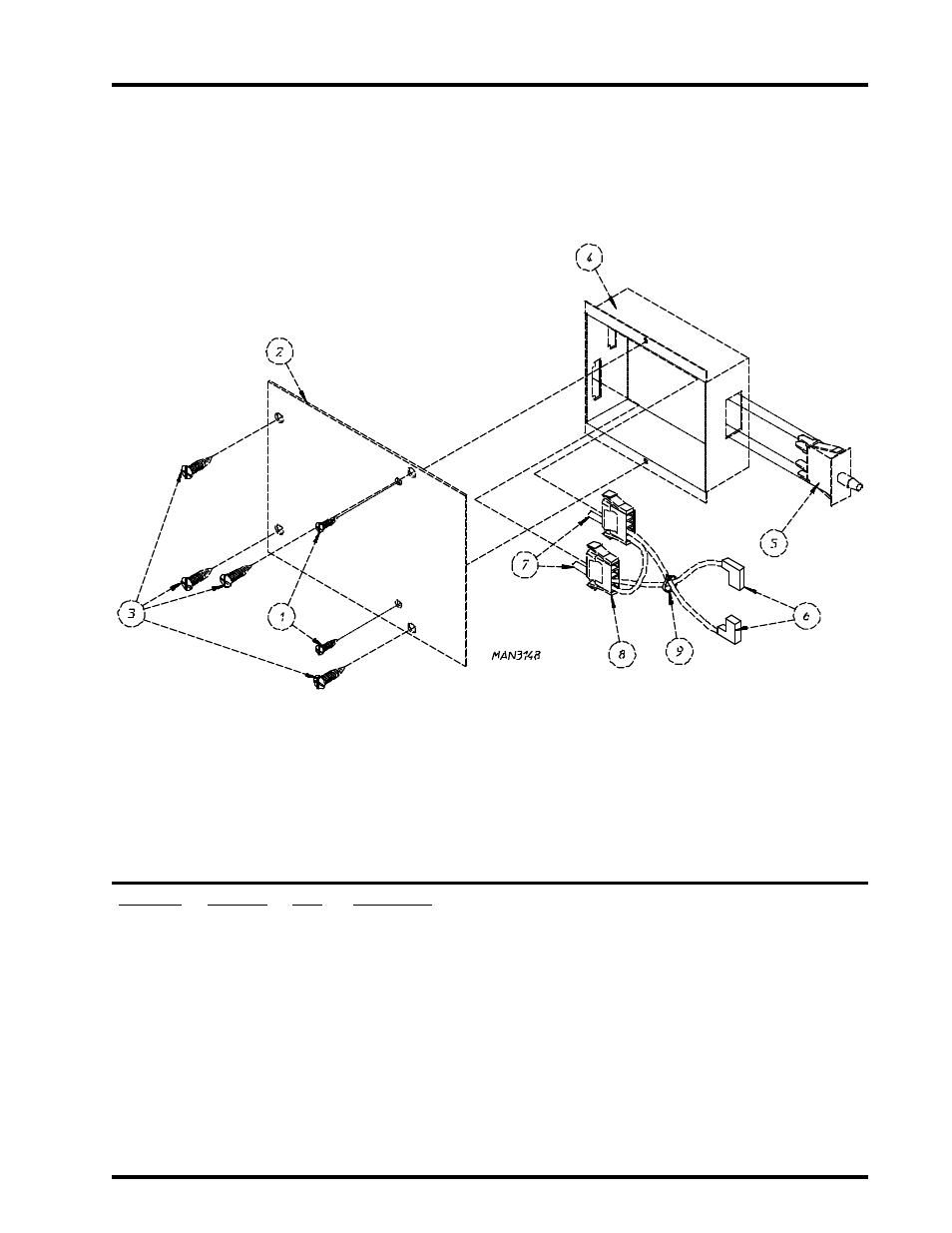

Lint Drawer Switch Box Assembly
