Microprocessor temperature sensor bracket assembly – American Dryer Corp. Direct Spark Ignition WDA-530DSi II User Manual
Page 16
14
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781
Illus. No.
Part No.
Qty.
Description
1
853021
1
Sensor Bracket ONLY
881090
1
Microprocessor Temperature Sensor Bracket Assembly Complete
(includes illus. nos. 1 through 6 and 9 through 12)
2
880251
1
Microprocessor Temperature Sensor Probe Assembly Complete
(includes illus. nos. 2 through 6)
3
154007
2
1/4” Push-On Fastener
4
121028
2
1/4” Terminal
5
122701
4
Socket Terminal ONLY
112801
Pins/Socket Extraction Tool
6
122605
1
4-Position Connector (Female)
7
122700
4
Pin Terminal ONLY
8
122604
1
4-Position Connector (Male)
9
130112
1
225° Thermostat
10
150005
2
6/32 x 1/4” Phillips Round Head Machine Screw
11
153010
2
#6 Star Washer
12
152013
2
#6-32 Hex Nut
13
152014
2
1/4-20 Free Spin Wash Nut

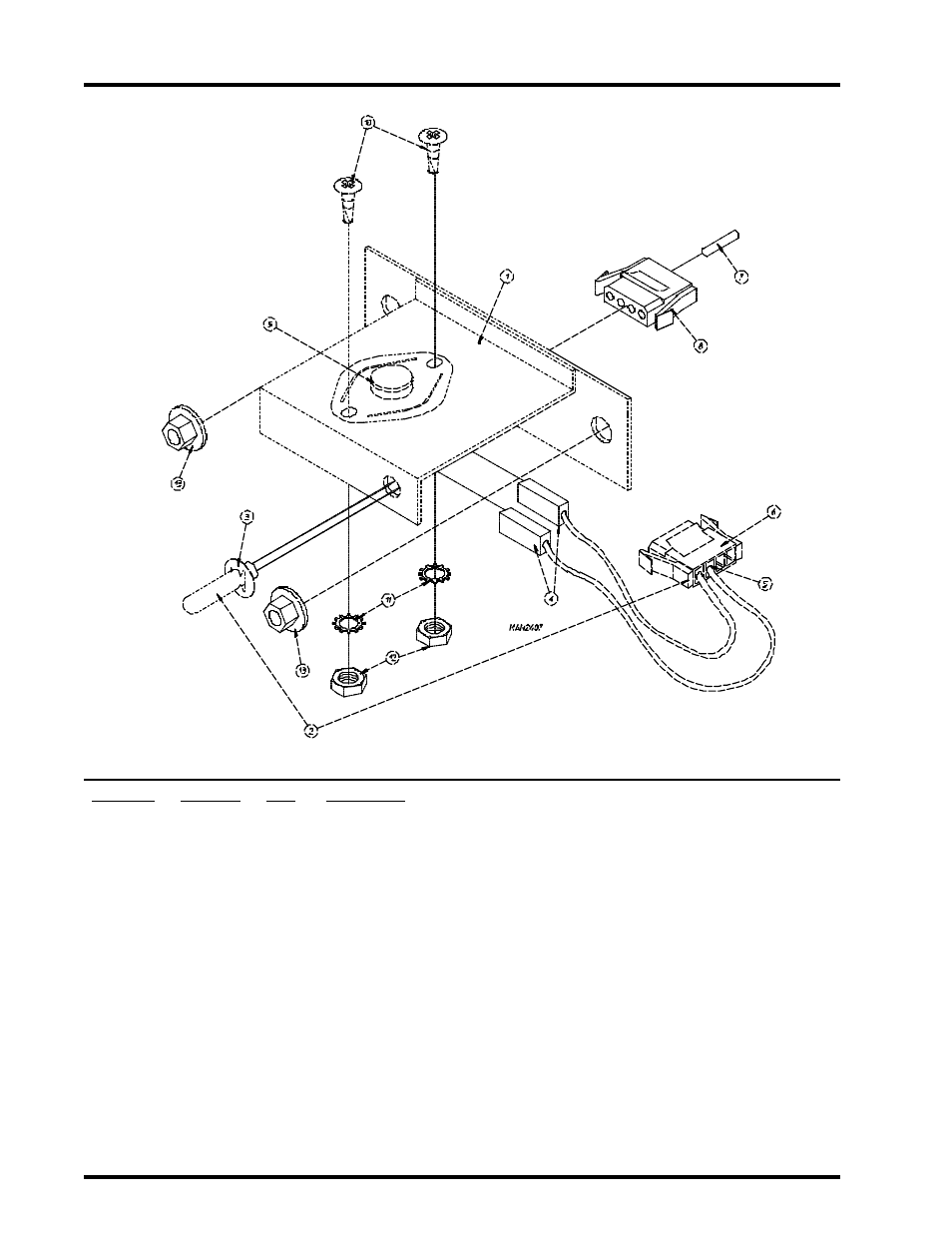

Microprocessor Temperature Sensor Bracket Assembly
