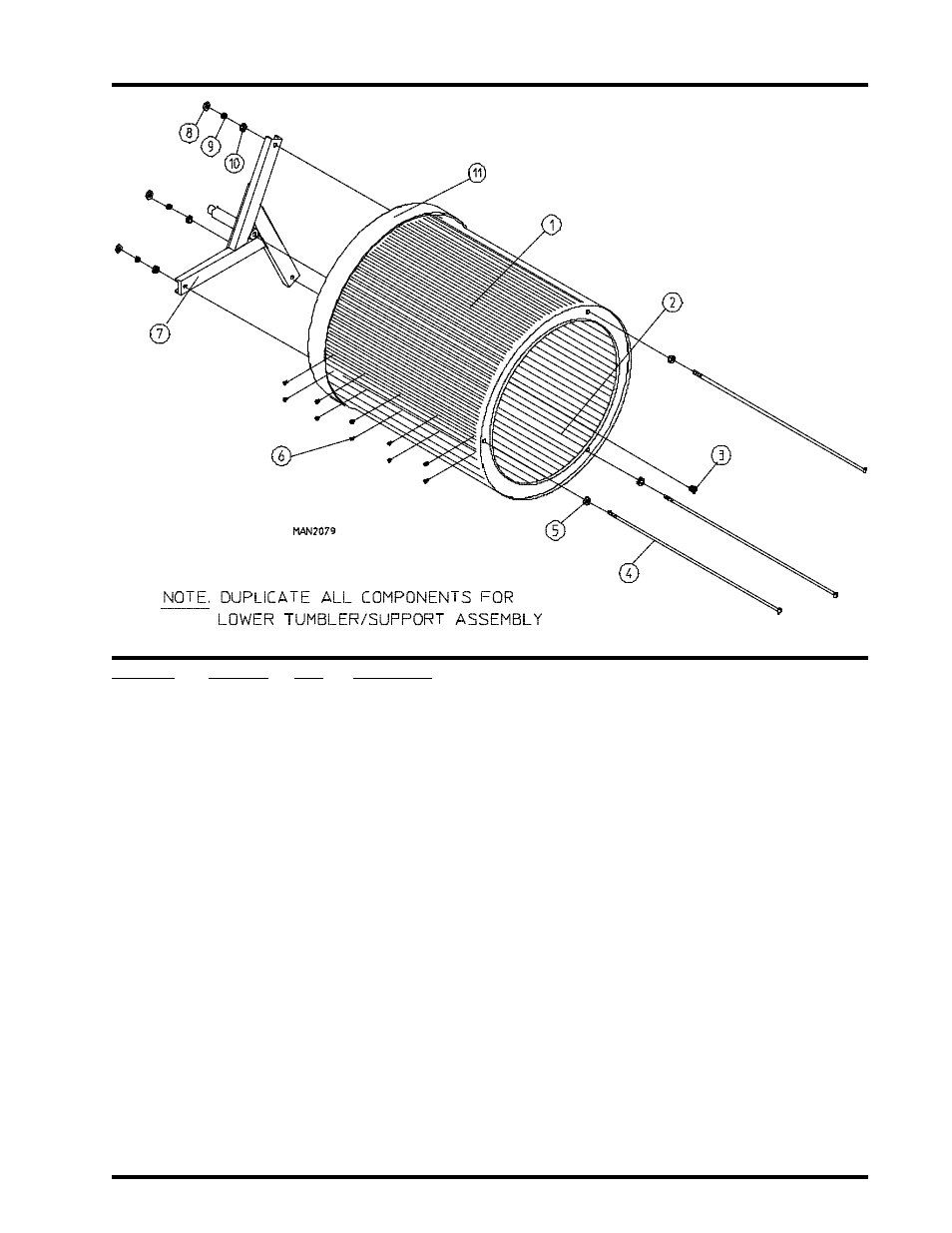

Basket (Tumbler)/Support Assemblies
Illus. No.
Part No.
Qty.
Description
1
800831
1
Basket (Tumbler)/Galvanized/Support Assembly Complete with Felt Collar
(includes illus. nos. 1 through 11)
800721*
1
Basket (Tumbler) (Galvanized) ONLY
800891
1
Stainless Steel Basket (Tumbler)/Support Assembly Complete with
Felt Collar
(includes illus. nos. 1 through 11)
800841*
1
Stainless Steel Basket (Tumbler) ONLY
2
301315
2
Short (Galvanized) Basket (Tumbler) Rib ONLY
301316
1
Tall (Galvanized) Basket (Tumbler) Rib ONLY
301414
2
Short (Stainless Steel) Basket (Tumbler) Rib ONLY
301415
1
Tall (Stainless Steel) Basket (Tumbler) Rib ONLY
3
150518
1
5/16-18 x 3/8” Socket Button Head Screw
4
100902
3
5/16-18 x 31” Tie Rod
5
153001
3
5/16” Flat Washer
6
154210
30
5/32” x 3/16” Pop Rivet
7
800617
1
Basket (Tumbler) Support ONLY
8
152004
3
5/16-18 Hex Nut
9
153002
3
5/16” Lock Washer
10
153001
3
5/16” Flat Washer
11
116003
1
Felt Collar ONLY
401010
1
#847 Adhesive for Felt Collar (5 oz. Tube)
*
Felt collar is not included and must be ordered separately.
