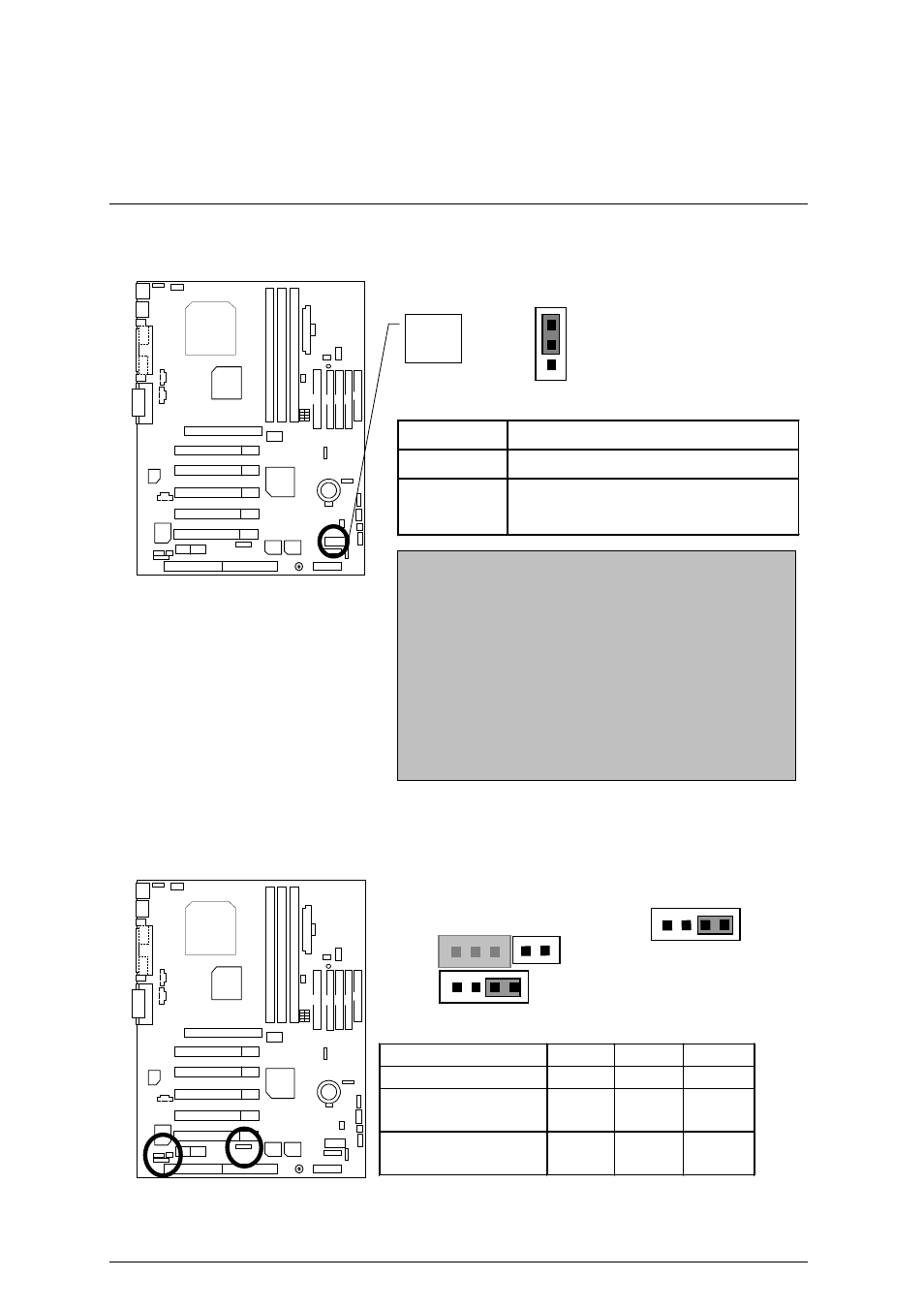

JP11 : Front USB Device Wake up Selection (USB Port Æ USB2)
1
Pin No. Definition
1-2 close Normal (Default)
2-3 close
Enabled Front USB Device
Wake up
(If you want to use "USB Dev Wakeup From S3-S5"
function, you have to set the BIOS setting "USB Dev
Wakeup From S3-S5" enabled, and the jumper "JP11"
enabled).
*(Power on the computer and as soon as memory
counting starts, press . You will enter BIOS Setup.
Select the item "POWER MANAGEMENT SETUP", then
select "USB Dev Wakeup From S3-S5: Enabled".
Remember to save the setting by pressing "ESC" and
choose the "SAVE & EXIT SETUP" option.)
USB2
JP16 /JP17/JP18: AMR (Primary or Secondary) Select
(AMRЖ Ж Ж Ж Audio Modem Riser)
JP16 JP17 JP18
Onboard AC97 ON 1-2 1-2
AMR (Primary)
(Default) OFF 3-4 3-4
Onboard AC97+MR
(Secondary) ON 1-2
3-4
1-2
1 JP17
1
JP16
1
JP18
