Connectors

12

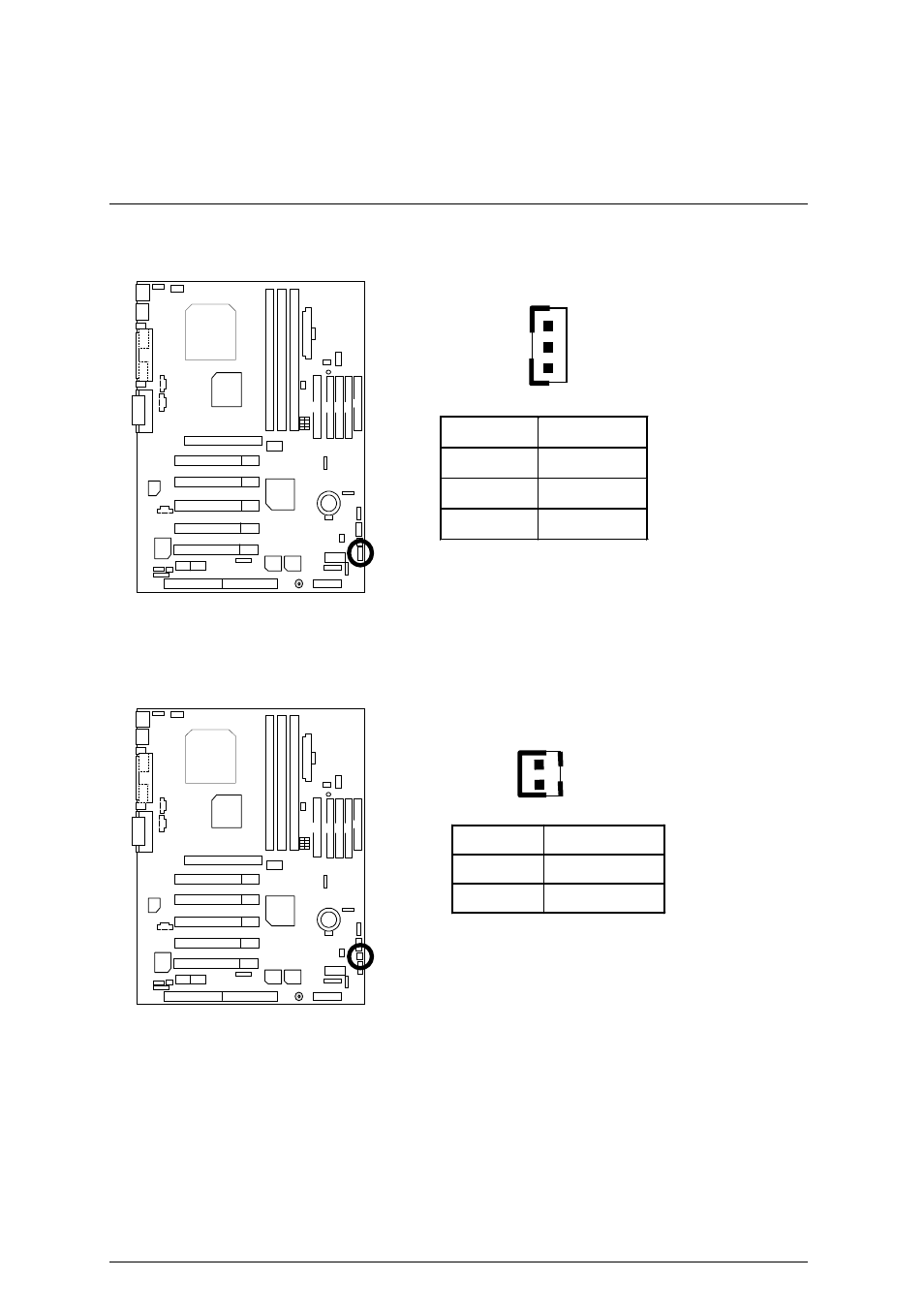

J12 : Wake On LAN

Pin No. Definition

1 +5V

SB

2 GND
3 Signal

1

J13 : Ring Power On (Internal Modem Card Wake Up)

Pin No. Definition

1 Signal
2 GND

1
