Connectors

14

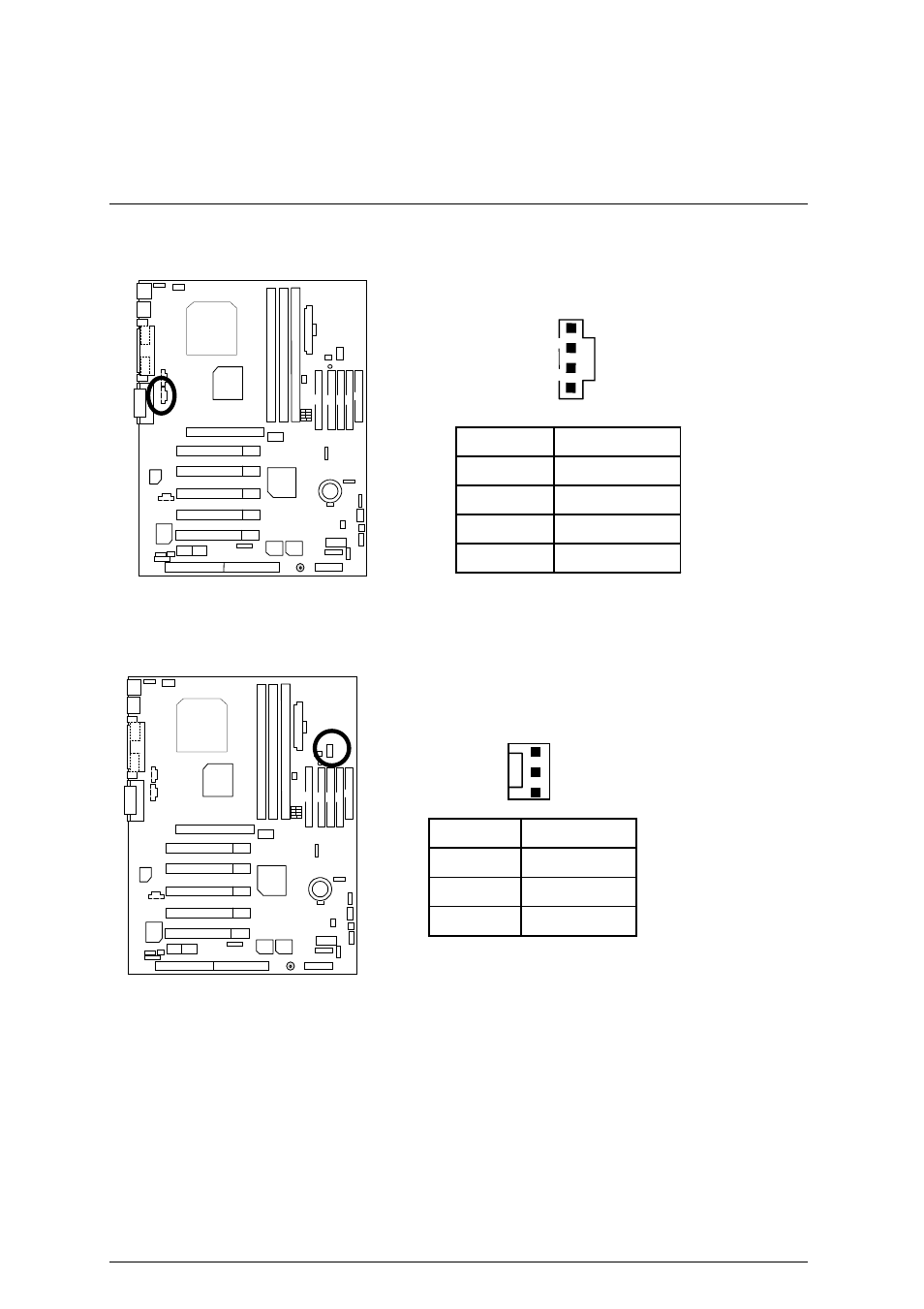

J18 : CD Audio Line In

Pin No. Definition

1 CD-L
2 GND
3 GND
4 CD-R

1

JP6 : Power Fan

Pin No. Definition

1 Control
2 +12V
3 NC

1
