7ZXR Motherboard
19

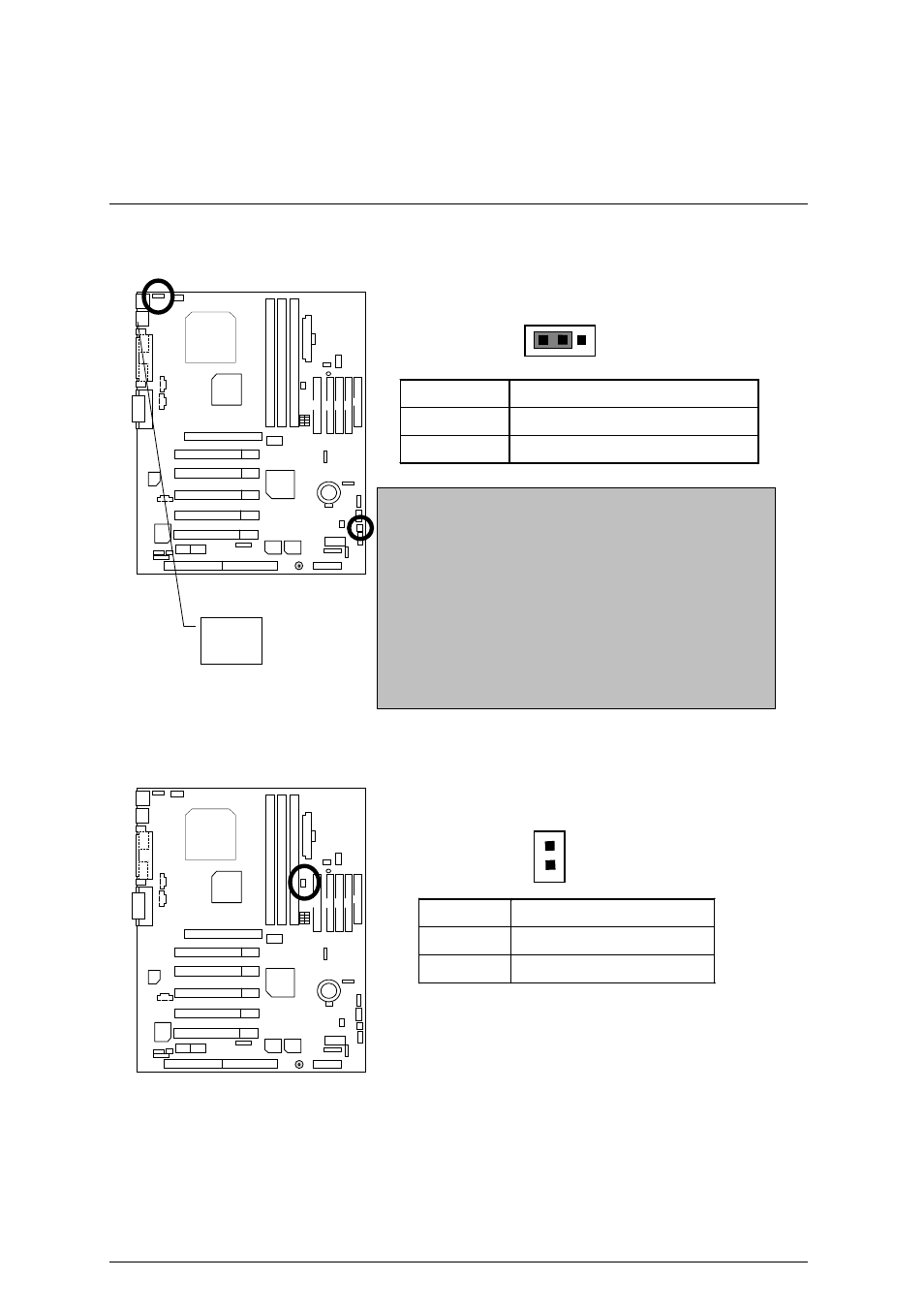

JP4: Rear USB Device Wake up Selection (USB Connector Æ USB1)
Pin No. Definition
1-2 Close Normal (Default)
2-3 Close USB Device Wake up
1
(If you want to use "USB Dev Wakeup From S3-S5"
function, you have to set the BIOS setting "USB Dev
Wakeup From S3-S5" enabled, and the jumper "JP4"
enabled).
*(Power on the computer and as soon as memory
counting starts, press . You will enter BIOS Setup.
Select the item "POWER MANAGEMENT SETUP", then
select "USB Dev Wakeup From S3-S5: Enabled".
Remember to save the setting by pressing "ESC" and
choose the "SAVE & EXIT SETUP" option.)
USB1
JP7 : STR Function Enabled
Pin No. Definition
Open Normal (Default)
Close STR Enabled
1
