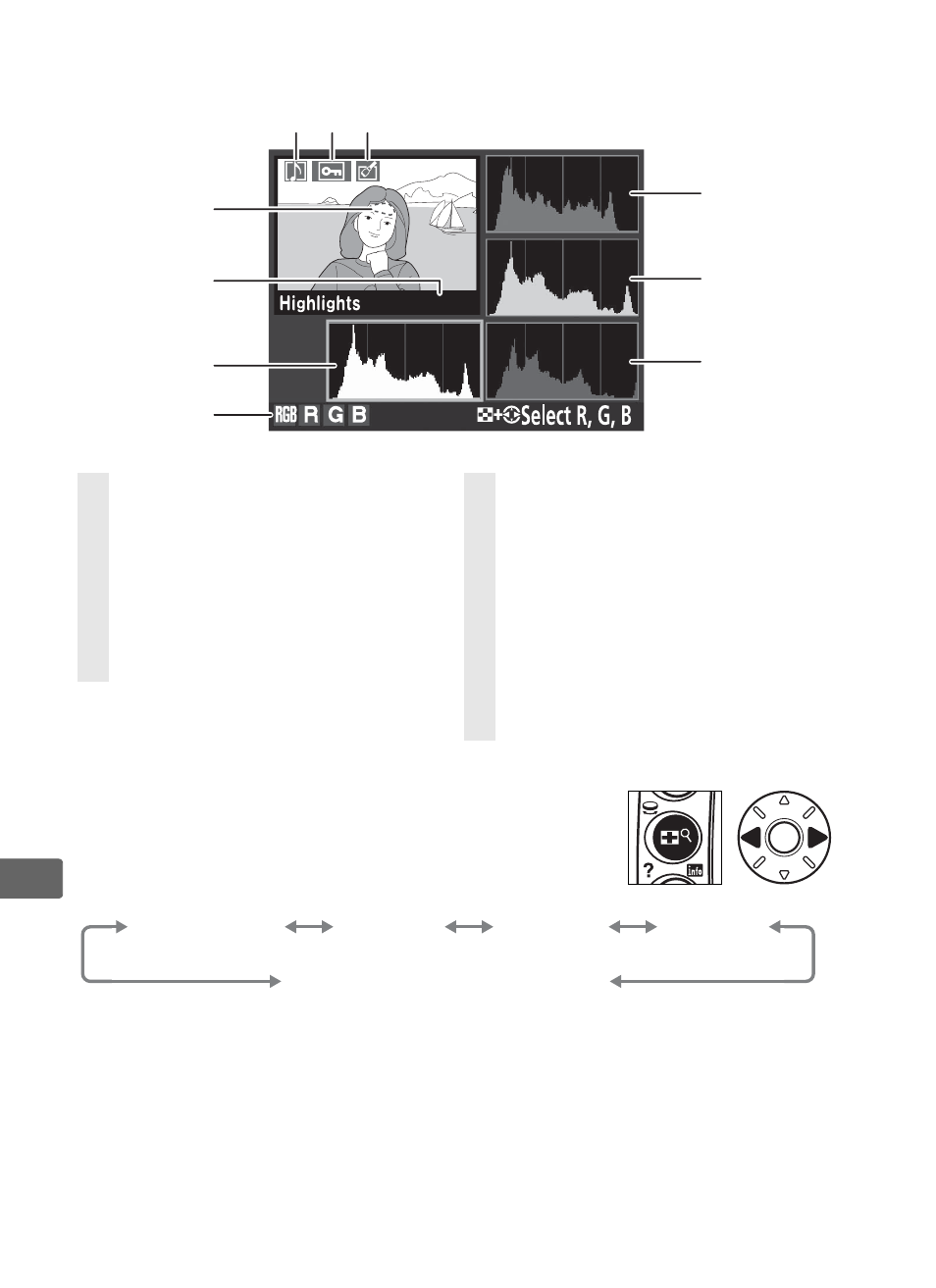

❚❚RGB Histogram
1
1 Displayed only if [RGB histogram] is selected for [Display mode] (pg. 282).
2 Blinking areas indicate highlights (areas that may be
overexposed) for current channel. Press 4 or 2 while
pressing N button to cycle through channels as
follows:
3 Displayed in yellow if [DX format (24 × 16)] ( a) or [5 : 4 (30 × 24)] (b) was
selected for the [Image area] option (pg. 60) in the shooting menu.
100-1
6
4
5
7
8
9
10
1 2 3
1 Voice memo icon ...................... 248
2 Protect status ............................. 244
3 Retouch indicator ..................... 363
4 Image highlights 2 .................. 282
5 Folder number–frame
number 3 ...................................... 293
6 Histogram (RGB channel) 4 . In all
histograms, horizontal axis gives
pixel brightness, vertical axis
number of pixels.
7 Current channel 2
8 Histogram (red channel) 4
9 Histogram (green channel) 4
10 Histogram (blue channel) 4
RGB
(all channels)
R
(red)
G
(green)
B
(blue)
Highlight display off
